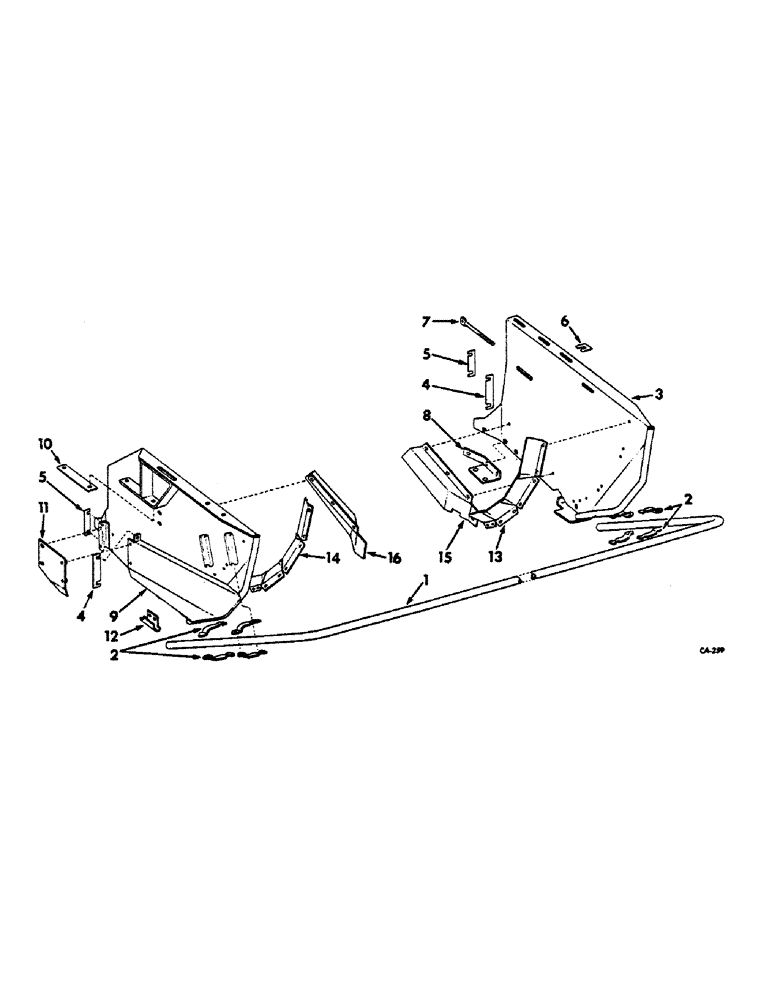

Запчасти Case IH 816 (G-09) - DEFLECTORS AND DIVIDERS CONVERSION

1

493365R1

PIPE

1шт.

2

493397R1

CLAMP ASSY, pipe

4шт.

20600R1

WASHER

9/32 x 3/4 x 11 ga C-Z

4шт.

21801R1

WASHER

9/32 x 3/4 x 16 ga C-Z

4шт.

3

493366R1

DIVIDE ASSY, LH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

5шт.

603901R1

WASHER

bevel

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 znd sq-nk crg

2шт.

540065R1

SCREW, 1/2-13 x 1-3/4 znd adjusting

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z flange lock

9шт.

4

493378R1

SHIM, divider front, 3 or as required for LH divider, 3 or as required for RH divider

6шт.

5

493379R1

SHIM, divider rear, 3 or as required for LH divider, 3 or as required for RH divider

6шт.

6

493380R1

SHIM, support LH divider, 4 or as required

4шт.

7

488217R2

BOLT,7/16" - 14 x 8"

EYEBOLT

1шт.

8

493381R1

ANGLE, grass pan filler

1шт.

9

493382R1

DIVIDER ASSY, RH

1шт.

19760R1

BOLT, 3/8 x 5/8 znd sq-nk crg

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 znd hex-hd cap

2шт.

603901R1

WASHER

bevel

2шт.

125682

SCREW, 3/8-16 x 5/8 C-Z slt truss-hd mach

2шт.

138489

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z flange lock

5шт.

10

493391R1

SHIM, support RH divider, 2 or as required

2шт.

11

493392R1

SHEET ASSY, RH divider rear

1шт.

125682

SCREW, 3/8-16 x 5/8 C-Z slt truss-hd mach

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z flange lock

2шт.

12

487304R1

COVER, guard

1шт.

125681

SCREW, 5/16-18 x 5/8 C-Z slt truss-hd mach

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z flange lock

2шт.

13

493773R1

DEFLECTOR ASSY, front LH

1шт.

21388R1

SCREW, 1/4-20 x 3/8 C-Z slt pan-hd tap

6шт.

180015

SCREW, 1/4-20 x 7/16 znd hex-hd cap

3шт.

480891R1

NUT

1/4-20 C-Z flange lock

3шт.

14

493774R1

DEFLECTOR ASSY, front RH

1шт.

21388R1

SCREW, 1/4-20 x 3/8 C-Z slt-pan-hd tap

5шт.

NLS

NO LONGER SERVICED

SCREW, 1/4-20 x 7/16 znd hex-hd cap

3шт.

480891R1

NUT

1/4-20 C-Z flange lock

3шт.

15

493779R1

DEFLECTOR, rear LH

1шт.

21388R1

SCREW, 1/4-20 x 3/8 C-Z slt-pan-hd tap

2шт.

180015

SCREW, 1/4-20 x 7/16 znd hex-hd cap

1шт.

480891R1

NUT

1/4-20 C-Z flange lock

1шт.

20716R1

SCREW,Sl Pan Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 C-Z slt-truss-hd mach

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z flange lock

1шт.

16

493780R1

DEFLECTOR, rear RH

1шт.

21388R1

SCREW, 1/4-20 x 3/8 C-Z slt-pan-hd tap

2шт.

NLS

NO LONGER SERVICED

SCREW, 1/4-20 x 7/16 znd hex-hd cap

1шт.

480891R1

NUT

1/4-20 C-Z flange lock

1шт.
