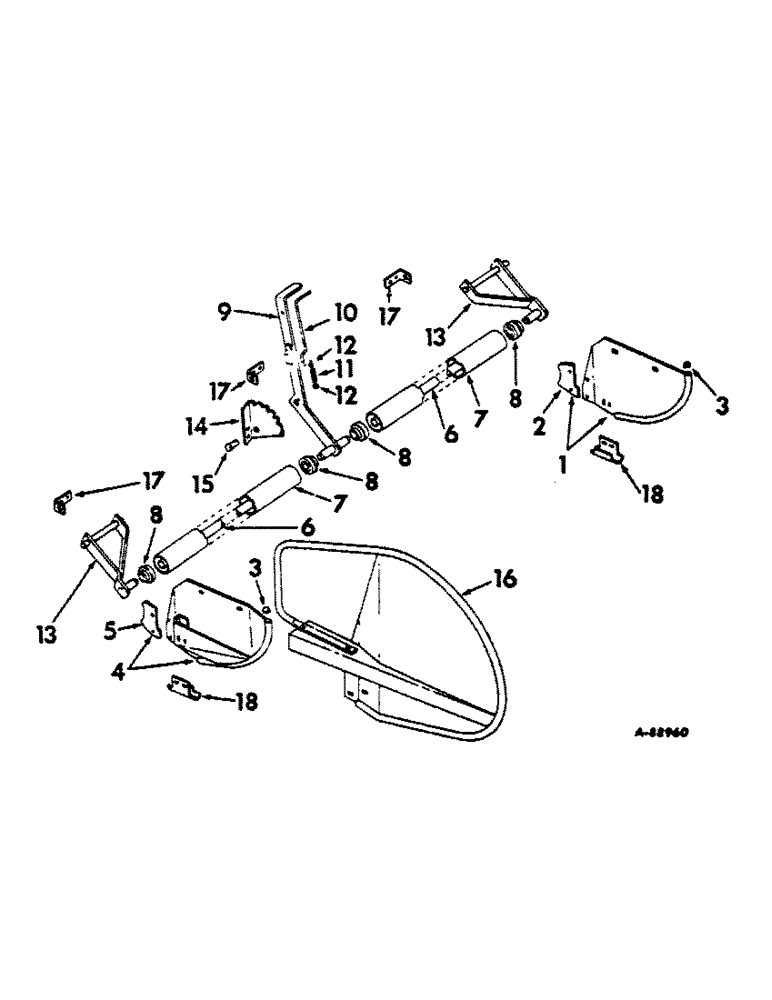

Запчасти Case IH 816 (G-08) - DIVIDERS AND FLICK BAR

1

482264R91

DIVIDER ASSY, LH crop, 1966

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

3шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .065 C-Z

3шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8-16 x 3/4 C-Z sq-nk crg

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8-16 x 1 C-Z sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z flange lock

2шт.

1

488102R91

DIVIDER ASSY, LH crop, 1967 & since

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW, 3/8-16 x 2 C-Z hex-hd cap

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .065 C-Z

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 flange lock

4шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8-16 x 3/4 C-Z sq-nk crg

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8-16 x 1 C-Z sq-nk crg

1шт.

2

482265R1

GUIDE, LH crop

1шт.

135798

RIVET, 3/16 x 15/32 truss-hd

2шт.

364201R1

WASHER, 13/64 x 3/4 x 16 ga

2шт.

3

485972R1

PLUG, 5/8 tubing type button

2шт.

4

482271R91

DIVIDER ASSY, RH crop, 1966

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8-16 x 1 C-Z sq-nk crg

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z flange lock

5шт.

4

488129R91

DIVIDER ASSY, RH crop, 1967 & since

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .065 C-Z

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 flange lock

4шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8-16 x 3/4 C-Z crg

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8-16 x 1 C-Z sq-nk crg

1шт.

5

482266R1

GUIDE, RH crop

1шт.

135798

RIVET, 3/16 x 15/32 truss-hd

2шт.

364201R1

WASHER, 13/64 x 3/4 x 16 ga

2шт.

6

482646R1

TUBE, inner, used with 9 ft. machines

2шт.

6

482656R1

TUBE, inner, used with 7 ft. machines

2шт.

7

482647R1

TUBE, outer, used with 9 ft. machines

2шт.

7

482657R1

TUBE, outer, used with 7 ft. machines

1шт.

8

482648R91

BEARING, ball

4шт.

9

482649R91

BAR ASSY, lever and center

1шт.

10

482653R1

ROD, latch

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

22079R1

PIN, 5/16 x 3/4 C-Z cot.

1шт.

11

2067A

SPRING

1шт.

12

95-11041

WASHER,3/8"

(13/32 x 3/4 x 16 ga) 3/8"

2шт.

13

482658R91

MOUNT ASSY, flick bar

2шт.

14

482655R1

SECTOR, flick bar mounting

1шт.

15

PO20851

PIN, 3/4 x 1-11/16 std-hd

1шт.

Q3501

WASHER

25/32 x 1-1/4 x 16 ga

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

475813R1

WASHER, 25/32 x 1-1/4 x 11 ga

2шт.

16

484658R92

DIVIDER ASSY, tall crop

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z crg

3шт.

464623R1

WASHER

21/32 x sq x 1-1/2 x 11 ga

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z crg

3шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z flanged lock

6шт.

142619H

WASHER

13/32 x 3/4 x 11 ga C-Z

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 C-Z hex-hd cap

1шт.

19432R1

BOLT, 3/8 x 1-3/8 C-Z crg

1шт.

17

482654R1

ANGLE

3шт.

18

487304R1

COVER, guard, 1967 & since

2шт.

125681

SCREW, 5/16-18 x 5/8 C-Z slt-truss-hd mach

4шт.

632225R1

LOCK NUT

5/16-18 whiz flange lock

4шт.
