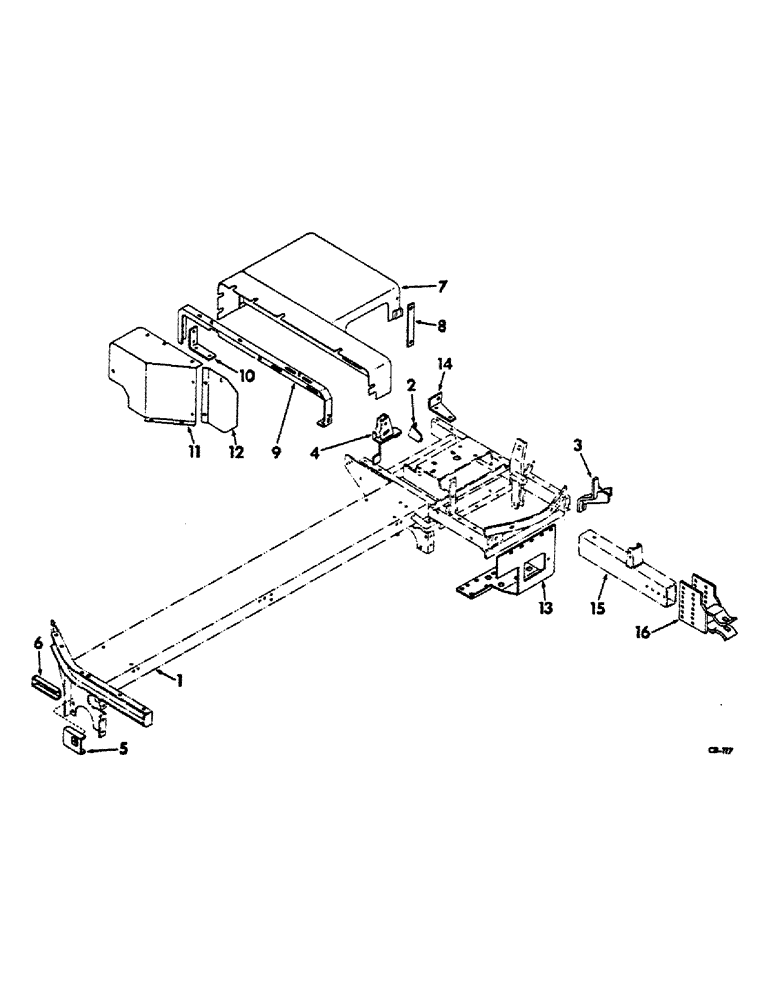

Запчасти Case IH 816 (G-05) - MAIN FRAME AND SHIELDING CONVERSION

1

FRAME ASSY, main, refer to main frame, tongue, hitch and related parts unit

1шт.

2

482730R1

BRACKET, LH

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

SCREW, 3/8-16 x 7/8 znd hex-hd cap

2шт.

668064R1

BOLT, 1/2 x 5-1/2 hex-hd mach

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 C-Z hex. jam

2шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

1шт.

3

493347R1

BRACKET ASSY, floating spring

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3/8-16 x 1-3/4 znd hex-hd cap

2шт.

4

493341R1

SUPPORT ASSY, pulley

1шт.

5

540149R1

PIVOT ASSY, reinforcement

1шт.

21836R1

PIN

5/8 x 2-9/16 C-Z std-hd

1шт.

21471R1

WASHER

21/32 x 1 x 11 ga C-Z

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

6

493335R1

CHANNEL ASSY, axle stop

1шт.

7

493458R11

SHIELD W/PRODUCT GRAPHIC, drive

1шт.

8

493463R1

BAR, hinge

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

2шт.

178372R1

WASHER

13/32 x 1-1/4 x 16 ga C-Z

4шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

2шт.

456197R1

NUT, 3/8-16 C-Z flange lock

4шт.

9

493464R1

SUPPORT ASSY, shield

1шт.

488245R1

WING NUT

3/8-16 w/nylon insert wing

3шт.

22539R1

SCREW

1/2-13 x 1 znd hex-hd cap

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z flange lock

1шт.

10

493521R1

ANGLE, support

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 znd hex-hd cap

2шт.

231-5146

FLANGE NUT,3/8"-16

3/8-16 flange lock

2шт.

11

493522R1

SHIELD ASSY, RH

1шт.

20716R1

SCREW,Sl Pan Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 slt-truss-hd mach

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z flange lock

6шт.

125681

SCREW, 5/16-18 x 5/8 slt-truss-hd mach

4шт.

12

493526R1

SHEET, shield

1шт.

125681

SCREW, 5/16-18 x 5/8 slt-truss-hd mach

1шт.

611344R1

WASHER

11/32 x 7/8 x 16 ga C-Z

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z flange lock

1шт.

13

493528R1

SHIELD ASSY, balance head

1шт.

14

488158R1

SUPPORT, cover shield rear RH

1шт.

15

TONGUE ASSY, refer to main frame, tongue, hitch and related parts unit

1шт.

16

493333R1

HITCH W/EXTENSION ASSY

1шт.
