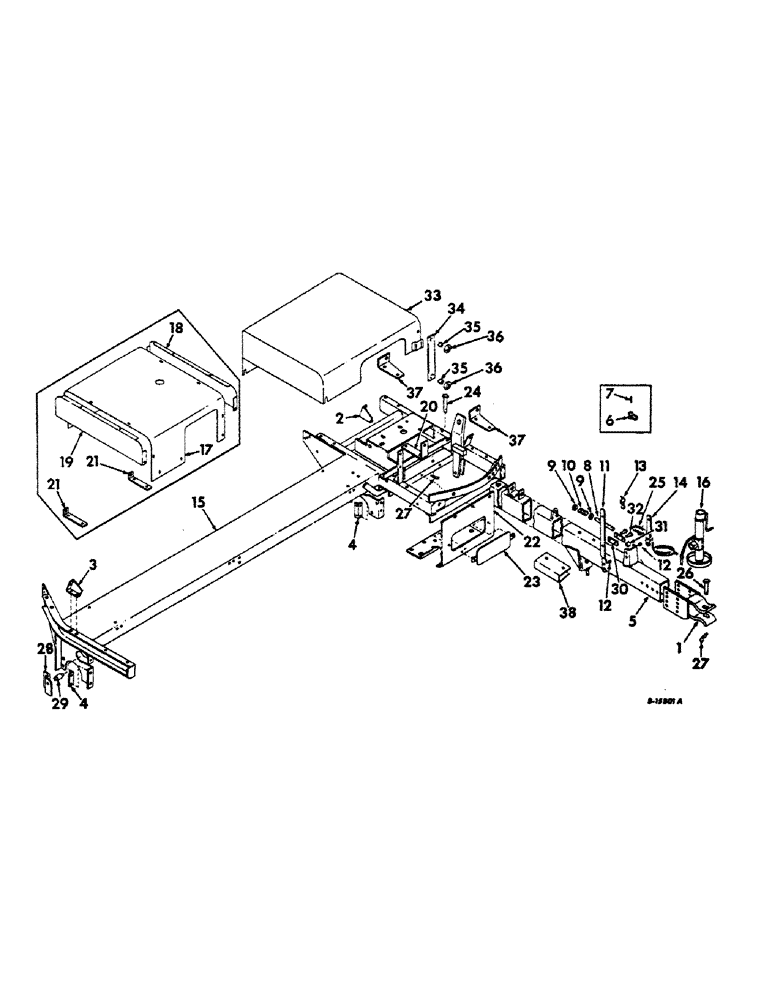

Запчасти Case IH 816 (G-03) - MAIN FRAME, TONGUE, HITCH AND RELATED PARTS
№
Артикул
Название
Примечание
Количество
1
483660R91
HITCH ASSY
1шт.
NLS
NO LONGER SERVICED
SCREW, 5/8-18 x 5 hex-hd cap
2шт.
425-1110
NUT,5/8"-18, G5
4шт.
2
482730R1
BRACKET, LH, 1966
1шт.
17420R1
BOLT,Hex, 3/8"-16 x 7/8", G2
3/8-16 x 7/8 hex-hd cap
2шт.
3
482731R1
BRACKET, RH, 1966
1шт.
14995R1
BOLT
3/8 x 3/4 sq-nk crg
2шт.
231-5146
FLANGE NUT,3/8"-16
3/8-16 flange lock
2шт.
17420R1
BOLT,Hex, 3/8"-16 x 7/8", G2
3/8-16 x 7/8 hex-hd cap
2шт.
231-5146
FLANGE NUT,3/8"-16
3/8-16 flange lock
2шт.
4
482722R1
ANGLE, reinforcing
2шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
4шт.
231-5146
FLANGE NUT,3/8"-16
3/8-16 flange lock
4шт.
5
482257R92
TONGUE ASSY
1шт.
178373R1
WASHER
17/32 x 1 x 16 ga C-Z
1шт.
103384
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
1шт.
6
462801R1
CLEVIS, dial hitch, 1966
1шт.
7
455184R1
LOCK PIN,5/16" x 3", Slotted
Pin, , 1966 5/16" x 3", Slotted
1шт.
8
459654R1
PIN
STUD, dial hitch
1шт.
9
16066R1
WASHER
25/32 x 1-1/2 x .065
2шт.
10
460611R1
SPRING
dial lock
1шт.
11
482260R1
SUPPORT, hose and PTO brg
1шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap
1шт.
20601R1
WASHER
17/32 x 1-1/4 x 11 ga C-Z
1шт.
120238
JAM NUT,Jam, 1/2"-13, G5
1/2-13 C-Z hex. jam
2шт.
12
623594R1
SPACER
2шт.
13
515030R1
CLAMP
hose
1шт.
472144R1
NUT
3/8-16 C-Z hex. 2 way lock
1шт.
15039R1
BOLT
3/8-16 x 1-1/2 sq-nk crg
1шт.
14
483136R1
SUPPORT, PTO
1шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap
1шт.
20601R1
WASHER
17/32 x 1-1/4 x 11 ga C-Z
1шт.
120238
JAM NUT,Jam, 1/2"-13, G5
1/2-13 C-Z hex. jam
2шт.
15
488111R91
FRAME ASSY, main, 1967 & since, used with 9 ft. machines, on machines built prior to 1967 also order bracket, 487929R1, block 487933R1, support 487906R1 and 4-shim, 487904R1
1шт.
15
488112R91
FRAME ASSY, main, 1967 & since, used with 7 ft. machines, on machines built prior to 1967 also order bracket, 487939R1, block, 487933R1, support, 487906R1 and 4-shim, 487904R1
1шт.
179885
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
Rear channel to balance head mounting block assy Hex, 1/2"-13 x 1 1/2", G5, Full Thd
2шт.
487374R1
BEARING LOCK NUT,Flg, USR, 1/2"-13
1/2-13 C-Z flange lock, for screw, 179885
2шт.
NLS
NO LONGER SERVICED
Support bar to front idler shaft assy Hex, 3/8"-16 x 1", G5
2шт.
231-5146
FLANGE NUT,3/8"-16
3/8-16 flange lock
18шт.
271556
WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5
SCREW, 5/8-11 x 1-1/4 hex-hd cap, gear box mounting plate to gear box
2шт.
271558
HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5
SCREW, 5/8-11 x 1-1/2 hex-hd cap, gear box mounting plate to gear box
1шт.
114609
LOCK WASHER,Ext Tooth, 5/8"
WASHER, LOCK, Ext Tooth, 5/8", 2 for screw 271556, 1 for screw 271558
3шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
2шт.
14995R1
BOLT
3/8-16 x 3/4 sq-nk crg
4шт.
80280503
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd
BOLT, 3/8-16 x 1 sq-nk crg
10шт.
181696
1/2-20 x 1 C-Z hex-hd cap
4шт.
487781R1
NUT, 1/2-20 C-Z flange lock
4шт.
16
482261R92
JACK
HOIST, light duty side cranking jack
1шт.
17
482668R1
SHIELD, cover, 1966
1шт.
18508R1
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
BOLT, 3/8-16 x 3/4 C-Z sq-nk crg
5шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8-16 C-Z flange lock
5шт.
19532R1
BOLT,Hex, 3/8" - 16 x 1/2", Gr 2
3/8-16 x 1/2 C-Z hex-hd mach
8шт.
18
482670R11
SHIELD ASSY, face LH, 1966
1шт.
19
482671R11
SHIELD ASSY, face RH, 1966
1шт.
20
482681R1
ANGLE, front cover shield bracket, 1966
1шт.
20
488157R1
SUPPORT, cover shield RH rear mounting bracket, 1967 & since
1шт.
21
482674R1
BRACKET, cover shield rear mounting, 1966
2шт.
22
482675R1
SHIELD, balance head
1шт.
120394
WASHER,3/8", SAE
WASHER, 13/32 x 13/16 x 16 ga C-Z
2шт.
15010R1
CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2
BOLT, 1/2 x sq-nk crg
2шт.
487374R1
BEARING LOCK NUT,Flg, USR, 1/2"-13
1/2-13 C-Z flange lock
2шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
5шт.
231-5146
FLANGE NUT,3/8"-16
3/8-16 flange lock
5шт.
15004R1
BOLT
1/2 x 7/8 sq-nk crg
3шт.
23
482676R11
PLATE ASSY, shield
1шт.
24
21548R1
PIN, 3/4 x 5-5/8 std-hd, replaces pin 660827R1
1шт.
Q3501
WASHER
25/32 x 1-1/4 x 16 ga, replaces washer 575813R1
1шт.
25
ROPE, 3/8 x 12 ft., purchase locally
1шт.
26
484984R1
PIN, hitch
1шт.
27
520175R1
CLIP
PIN, quick attachable cot.
2шт.
28
487436R1
BRACKET, pivot pin, 1967 & since
2шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8-15 x 1 C-Z hex-hd cap
4шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8-16 C-Z hex.
4шт.
29
487437R1
ROLLER, upper roll pivot, 1967 & since
2шт.
30
660959R1
STRIP, dial hitch rod
2шт.
31
618631R1
SPACER
dial hitch rod strip
1шт.
32
U5349
PIN
5/16 x 1-5/16 std-hd
2шт.
103384
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
2шт.
Q397
WASHER
11/32 x 3/4 x 16 ga
4шт.
33
488153R1
SHIELD, cover, 1967 & since
1шт.
18508R1
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
BOLT, 3/8-16 x 3/4 C-Z sq-nk crg
5шт.
178372R1
WASHER
13/32 x 1-1/4 x 16 ga C-Z
2шт.
488245R1
WING NUT
3/8-16 wing w/nylon insert
2шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8-16 x 1 C-Z hex-hd cap
2шт.
34
488219R1
BAR, cover support pivot, 1967 & since
2шт.
180124
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
SCREW, 3/8-16 x 1-1/4 C-Z hex-hd cap
2шт.
35
661290R1
SPACER
1967 & since
4шт.
36
482188R1
SPACER, rubber, 1967 & since
4шт.
178372R1
WASHER
13/32 x 1-1/4 x 16 ga C-Z
4шт.
473371R1
FLANGE NUT
NUT, 3/8-16 C-Z flange uni-torque lock
4шт.
37
488158R1
SUPPORT, cover shield LH rear mounting bracket, 1967 & since
2шт.
363919R1
SOCKET
lamp bracket
1шт.
18673R1
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
BOLT, 5/16 x 1/2 C-Z crg
2шт.
611344R1
WASHER
11/32 x 7/8 x 16 C-Z
2шт.
472146R1
LOCK NUT,5/16"-18, GB
NUT, 5/16-18 C-Z two-way lock
2шт.
38
488823R1
SUPPORT, tire guard bracket, special
1шт.
273312
BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5
SCREW, 5/8-11 x 5-1/2 hex-hd cap
2шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
