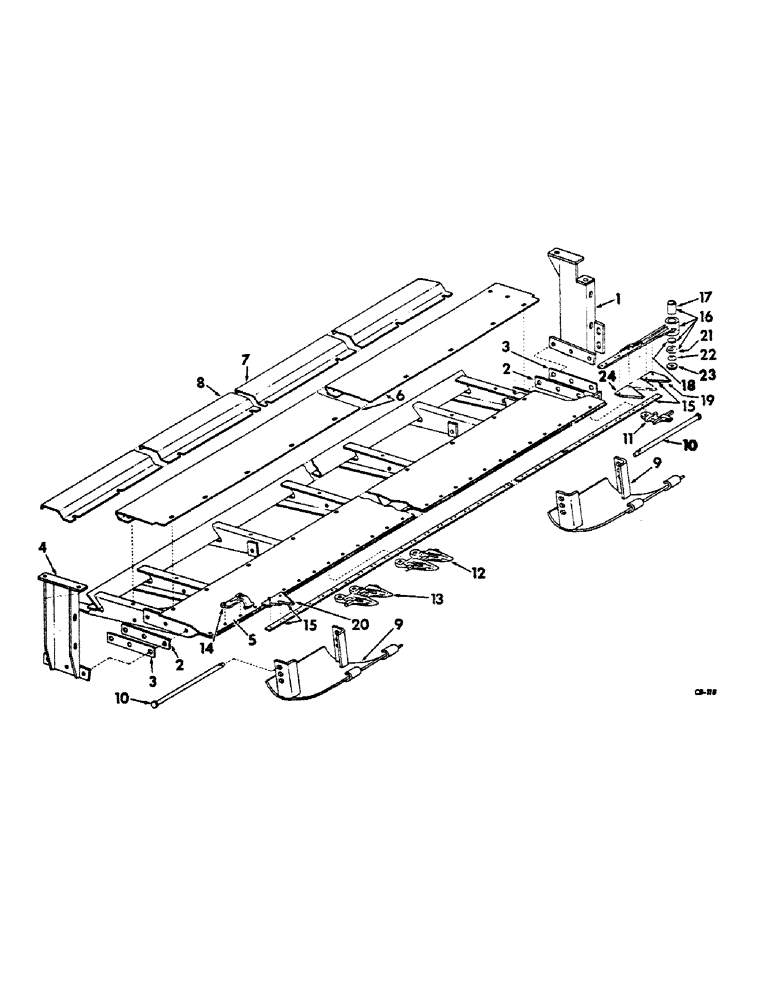

Запчасти Case IH 816 (G-33) - CUTTER BAR, KNIVES, STONE SHOE AND RELATED PARTS CONVERSION

1

493217R1

SUPPORT ASSY, LH

1шт.

189349

SCREW, 1/2-20 x 5-1/4 znd hex-hd cap

1шт.

484781R1

NUT

1/2-20 C-Z flange lock

2шт.

453037

BOLT

SCREW, 1/2-20 x 7-1/2 znd hex-hd cap

1шт.

414-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

SCREW, 1/2-20 x 3/4 znd hex-hd cap

2шт.

86837293

SHAFT

1/2-20 x 1 znd hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

2

493224R1

SHIM, cutter bar

2шт.

3

493225R1

SHIM, cutter bar

1шт.

4

493226R1

SUPPORT ASSY, RH

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

2шт.

604355R1

WASHER, bevel

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z flange lock

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

2шт.

603901R1

WASHER

bevel

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z flange lock

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

414-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

SCREW, 1/2-20 x 3/4 znd hex-hd cap

2шт.

181696

1/2-20 x 1 znd hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

5

493229R1

BAR ASSY, cutter

1шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, 7/16-14 x 1 znd hex-hd cap

13шт.

136857

WASHER,Ext Tooth, 7/16"

7/16 C-Z ext-tooth lock

13шт.

21737R1

BOLT,Sq Nk, 5/16" - 18 x 5/8", Gr 2

5/16-18 x 5/8 znd sq-nk crg

14шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z flange lock

14шт.

6

493244R1

SHEET, cutter back deck

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

SCREW, 5/16-18 x 5/8 znd hex-hd cap

9шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

9шт.

125682

SCREW, 3/8-16 x 5/8 C-Z slt-truss-hd mach

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z flange lock

9шт.

456197R1

NUT, 3/8-16 C-Z flange lock

2шт.

7

493245R1

EXTENSION, grass pan LH

1шт.

8

493246R1

EXTENSION, grass pan RH

1шт.

9

493247R1

SHOE ASSY

2шт.

10

493252R1

PIN, wear shoe

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

11

472717R2

GUARD

stub, used on LH end of cutter bar

1шт.

12

483500R3

GUARD

standard, hay double guard, use 2nd from LH end of cutter bar

1шт.

Double heat treated guard part number is 187346A1.

1шт.

13

493163R1

GUARD, hay double RH

1шт.

M805

BOLT, 7/16-14 x 1-5/16 no. 3 plow

3шт.

M806

PLOW BOLT

BOLT, 7/16-14 x 1-9/16 no. 3 plow

2шт.

482161R1

NUT

7/16-14 C-Z flange lock

5шт.

14

611759R1

KNIFE CLIP

HOLDER, knife, used ofer 3rd and 4th holes from left end of cutter bar

1шт.

15

493195R91

KNIFE ASSY, 9 ft. underserrated heavy

2шт.

16

493196R11

HEAD ASSY, knife

2шт.

MA133M

RIVET,23.81mm OD x 139.7mm L

no. 5-1/2 x 15/16 small ov-hd, one pound package

20шт.

17

458971R1

BRONZE BUSHING,25.43mm ID x 28.63mm OD x 35.18mm L

BUSHING, knife head

2шт.

18

458972R1

PLUG

knife head

2шт.

19

493198R1

KNIFE SECTION

SECTION, knife head

2шт.

20

467456R11

KNIFE SECTION

SECTION W/RIVETS, underserrated heavy triplet end crp

1шт.

MB133

RIVET

no. 5-1/2 x 5/8 small ov-hd, one pound package

2шт.

21

152181C91

SEAL

SEAL, oil

1шт.

22

487313R1

SHIM

or as required

3шт.

23

493209R1

WASHER, 17/32 x 1-1/4 x 11 ga C-Z

4шт.

181702

BOLT,Hex, 1/2" - 20 x 1 3/4", Gr 5

SCREW, 1/2-20 x 1-3/4 znd hex-hd cap

2шт.

120371

NUT,1/2"-20, G5

4шт.

24

826722C1

KNIFE SECTION

SECTION, heavy underserrated knife, 70, replaces M22831

1шт.

991059R91

RIVET

no. 6 x 5/8 pln o/hd, two pound package

1шт.
