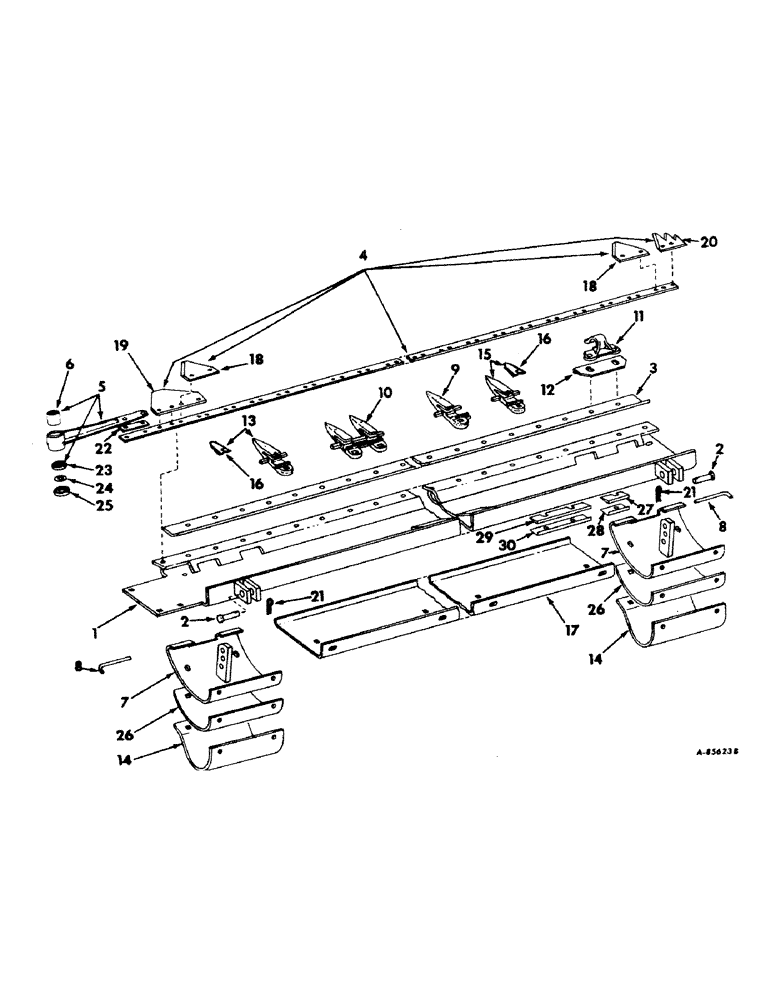

Запчасти Case IH 816 (G-31) - CUTTER BAR, KNIVES, STONE SHOE AND RELATED PARTS

1

488169R1

BAR ASSY, cutter, 1967 & since, on machines built prior to 1967 also order 2-shoe assy, 487355R1 and 2-wear shoes, 487358R1, for 9 ft. machines

1шт.

1

488170R1

BAR ASSY, cutter, 1967 & since, on machines built prior to 1967 also order 2-shoe assy, 487355R1 and 2-wear shoes, 487358R1, for 7 ft. machines

1шт.

181425

BOLT,Hex, 1/2" - 20 x 3/4"

SCREW, 1/2-20 x 3/4 hex-hd cap, on LH side of cutter bar

2шт.

181426

BOLT,Hex, 1/2" - 20 x 7/8", Gr 5

SCREW, 1/2-20 x 7/8 hex-hd cap, 2-RH side & 2-LH side rear leg of cutter bar

4шт.

118975

WASHER, 1/2 HV int-tooth lock

6шт.

Q5035

WASHER

17/32 x 1 x 16 ga, on RH side of cutter bar

2шт.

PO10535

WASHER

17/32 x 1-1/4 x 11 ga, on bolts in rear leg of cutter bar

2шт.

2

21573R1

HEADED PIN,1/2" x 2"

PIN, 1/2 x 2 C-Z std-hd

2шт.

3

482162R1

STRIP, filler, for 9 ft. machines

1шт.

3

482163R1

STRIP, filler, for 7 ft. machines

1шт.

4

482167R92

KNIFE

ASSY, underserrated heavy 7 ft.

1шт.

4

484497R92

KNIFE ASSY, smooth 7 ft.

1шт.

4

482164R92

KNIFE

ASSY, underserrated heavy 9 ft.

1шт.

4

484498R92

KNIFE ASSY, smooth 9 ft.

1шт.

5

482166R21

ARM

ASSY, knife connecting

1шт.

144418H

LOCK NUT,5/16"-24, GB

NUT, LOCK, , Stop 5/16"-24, GB

4шт.

294612C1

BOLT,Hex Flg, 5/16" - 24 x 1"

SCREW, 5/16-24 x 1 washer hd cap

2шт.

5

488097R91

ARM ASSY, knife connecting, used with guard tilting att

1шт.

6

458971R1

BRONZE BUSHING,25.43mm ID x 28.63mm OD x 35.18mm L

BUSHING, 1966

1шт.

6

487307R1

BUSHING

bronze, 1967 & since

1шт.

7

482169R91

SHOE ASSY, wear, 1966

2шт.

7

487355R1

SHOE ASSY, wear, for 1966 machines that have been reworked and 1967 and since

2шт.

8

484491R1

ROD, shoe retaining, 1966

2шт.

9

486452R2

SHIELD

GUARD, inner, used w/guard, 483500R3

1шт.

QA1118

BOLT, 7/16 x 1-1/8 no. 3 plow

1шт.

482161R1

NUT

7/16-14 flange lock

1шт.

10

483500R3

GUARD

hay, double point, 14 for 7 ft. machines, 18 for 9 ft. machines

1шт.

REF: #10 - 483500R3 IS A STANDARD GUARD, NOWS THERE'S A DOUBLE HEAT TREATED GUARD PART NUMBER IS 187346A1.

1шт.

Q5119

PLOW BOLT

7/16 x 1-1/4 no. 3 plow, 13 for 7 ft. machines, 17 for 9 ft. machines

1шт.

M806

PLOW BOLT

BOLT, 7/16 x 1-9/16 no. 3 plow, 14 for 7 ft. machines, 18 for 9 ft. machines

1шт.

QA1118

BOLT, 7/16 x 1-1/8 no. 3 plow

1шт.

482161R1

NUT

7/16-14 flange lock, 28 for 7 ft. machines, 36 for 9 ft. machines

1шт.

11

MA812

SUPPORT

HOLDER, knife, 7 for 7 ft. machines, 9 for 9 ft. machines

1шт.

11

487805R1

HOLDER, knife, 7 for 7 ft. machines, 9 for 9 ft. machines

1шт.

12

MC468

PLATE ASSY.

PLATE, wear, 7 for 7 ft. machines, 9 for 9 ft. machines

1шт.

13

MC2041Z

GUARD

GUARD ASSY, single point, 27 for 7 ft. machines, 35 for 9 ft. machines

1шт.

Q5119

PLOW BOLT

7/16 x 1-1/4 no. 3 plow

1шт.

M805

BOLT, 7/16 x 1-5/16 no. 3 plow, 13 for 7 ft. machines, 17 for 9 ft. machines

1шт.

Q3596

PLOW BOLT,7/16" - 14 x 1 5/8", Gr 5

BOLT, 7/16 x 1-5/8 no. 3 plow, 14 for 7 ft. machines, 18 for 9 ft. machines

1шт.

482161R1

NUT

7/16-14 flange lock, 28 for 7 ft. machines, 36 for 9 ft. machines

1шт.

14

487359R1

SHOE, extension, 1967 & since

1шт.

488233R1

BOLT, 3/8-16 x 7/8 C-Z sq-nk crg type 4

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z flange whiz lock

4шт.

15

MC2043Z

GUARD

ASSY, outer, used w/single point guards

1шт.

Q5119

PLOW BOLT

7/16 x 1-1/4 no. 3 plow

1шт.

482161R1

NUT

7/16-14 flange lock

1шт.

16

455634R1

PLATE

ledger, 1 per guard, used w/single point guards

1шт.

407039R91

RIVET,Countersunk, 4.76mm OD x 25.4mm L

3/16 x 1 74 deg csk-hd, 2 per ledger plate, one pound package

1шт.

17

484532R1

SHOE, 7 ft. stone

1шт.

17

484534R1

SHOE, 9 ft. stone

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1/2 x 1 C-Z hex-hd cap

4шт.

178373

WASHER, 17/32 x 1 x 16 ga C-Z

4шт.

19058R1

BOLT, 1/2 x 1 C-Z no. 3 plow 1/2"-13 x 1", G2, Full Thd

4шт.

473197R1

FLANGE NUT

1/2-13 C-Z hex. flanged lock

8шт.

18

826724C1

KNIFE SECTION

SECTION, HV smooth, replaces M3331/2

1шт.

18

826722C1

KNIFE SECTION

SECTION, HV underserrated, replaces M22831, 54 for 7 ft. machines, 70 for 9 ft. machines

1шт.

991059R91

RIVET

no. 6 x 5/8 pln o/hd, 2 per section two pound package

1шт.

19

464097R1

KNIFE SECTION

SECTION, underserrated LH, 1966

1шт.

19

618543R1

KNIFE SECTION

SECTION, smooth LH, 1966

1шт.

19

486999R1

SUPPORT

BAR, reinforcing, 1967 & since

1шт.

14751R1

RIVET, no. 6 x 9/16 ov-hd, 2 per section Oval Hd, .203" x 9/16"

1шт.

20

464098R1

KNIFE SECTION

SECTION, underserrated RH, 1966

1шт.

20

467456R11

KNIFE SECTION

SECTION, unserrated triplet end, 1967 & since

1шт.

20

618544R1

KNIFE

SECTION, smooth RH, 1966

1шт.

20

467455R11

VALVE

SECTION, smooth triplet end, 1967 & since

1шт.

MB133

RIVET

no. 5-1/2 x 5/8 o/hd, 2 per section, one pound package

1шт.

21

520175R1

CLIP

PIN, quick attachable cot.

2шт.

22

485697R1

BAR

STRIP, knife arm shim, or as required

4шт.

23

152181C91

SEAL

SEAL, oil, 1967 & since

1шт.

24

487313R1

SHIM

1967 & since, or as required

6шт.

25

487312R1

WASHER

retaining, 1967 & since

1шт.

26

487358R1

SHOE, wear, 1967 & since, used w/center adj shoe

2шт.

488233R1

BOLT, 3/8-16 x 7/8 C-Z sq-nk crg type 4

8шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z flange whiz lock

8шт.

15546R1

BOLT, 5/16-18 x 7/8 no. 3 plow, used w/center adj shoe

2шт.

19576R1

BOLT,Short NK, 5/16"-18 x 7/8", G2, Full Thd

5/16-18 x 7/8 C-Z sq-nk crg, used w/center adj shoe

2шт.

632225R1

LOCK NUT

5/16-18 flange whiz lock, used w/center adj shoe

4шт.

27

487802R1

BAR, guard tilt inner, used with guard tilting att

1шт.

28

488096R1

SUPPORT, guard tilt bar retainer inner, used with guard tilting att

1шт.

487803R1

BOLT, 1-17/32 special

1шт.

482161R1

NUT

7/16-14 C-Z whiz flange lock

1шт.

29

487826R1

BAR, guard tilt, used with guard tilting att

1шт.

487803R1

BOLT, 1-17/32 special

1шт.

487804R1

BOLT, 1-7/8 special

1шт.

482161R1

NUT

7/16-14 C-Z whiz flange lock, 18 used with 9 ft. machine, 14 used with 7 ft. machine

1шт.

30

487825R1

SUPPORT, guard tilt bar retainer, used with guard tilting att, 18 used with 9 ft. machine, 14 used with 7 ft. machine

1шт.
