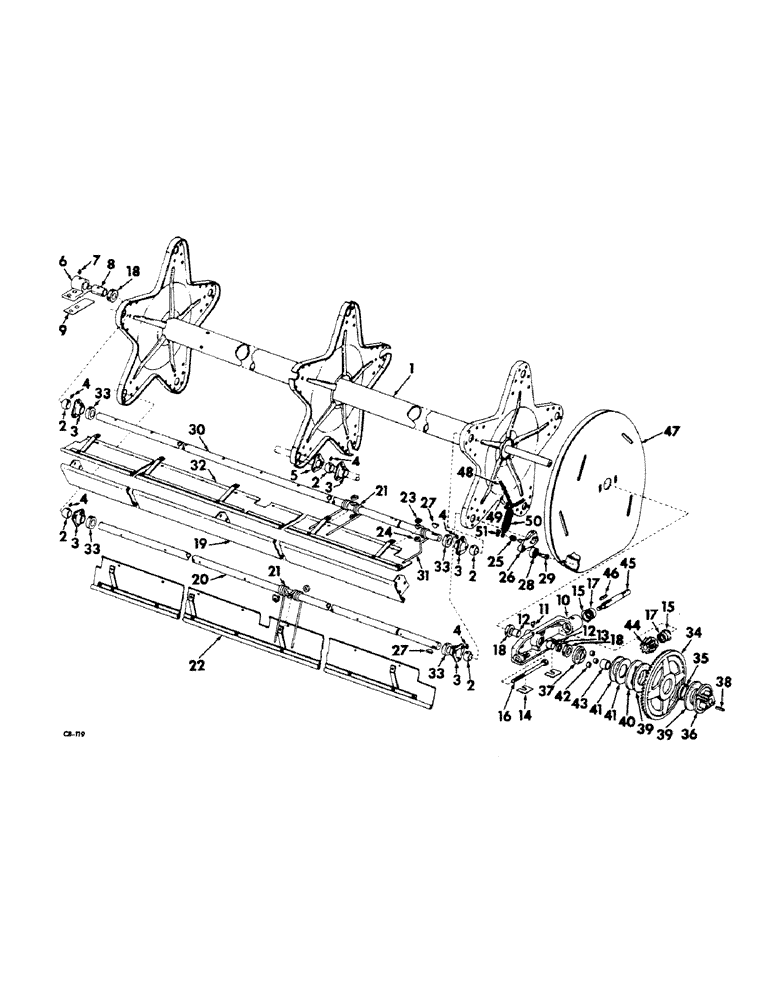

Запчасти Case IH 816 (G-27) - REEL CONVERSION

1

493399R1

CORE ASSY, reel

1шт.

2

493406R1

BEARING, tine

15шт.

3

493407R1

FLANGE, tine brg

15шт.

4

20691R1

FITTING,3/16" x .47" lg, Drive

3/16 drive type str lub

15шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16-18 x 5/8 znd hex-hd cap

45шт.

138538

LOCK WASHER

WASHER, 5/16 C-Z int-tooth lock

45шт.

483303R1

LOCK NUT

5/16-18 C-Z flange lock

45шт.

5

493408R1

FLANGE, tine backing

2шт.

6

493409R11

SUPPORT

ASSY, reel RH

1шт.

7

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

8

493410R1

BUSHING,31.8mm ID x 34.95mm OD x 63.5mm L

reel support RH

1шт.

9

493411R1

BAR

SHIM, spacer reel

6шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2-13 x 2 znd hex-hd cap

2шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z flange lock

2шт.

10

493412R11

SUPPORT ASSY, reel LH

1шт.

11

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 ptf 65 deg angle lub

1шт.

12

487050R1

BUSHING,31.83mm ID x 34.85mm OD x 28.45mm L

reel support LH

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

2шт.

475954R1

NUT

3/8-16 C-Z flange lock

2шт.

13

460551R91

OIL SEAL

SEAL, reel shaft oil

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 znd hex-hd cap

2шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z flange lock

2шт.

14

493380R1

SHIM, reel support

12шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

1/8 slt-hdls pipe

1шт.

15

463910R1

RING, SNAP

RING, retaining

2шт.

16

493413R1

BOLT, reel adj

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

22971R1

PIN

5/32 x 1-1/4 C-Z hv coiled spring

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

3шт.

17

493448R91

BEARING ASSY W/SEAL PINION SHAFT ROLLER

2шт.

18

493414R1

COLLAR, shaft retaining

3шт.

102580

GUIDE

SCREW, 5/16-18 x 1/4 hex-soc-hd cup-pt set

12шт.

19

493415R1

BAT ASSY, fixed

5шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

SCREW, 3/8-16 x 5/8 znd hex-hd cap

30шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

30шт.

125158

SLOTTED NUT,5/8"-11, G5

NUT, 5/8-11 C-Z slt hex.

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

20704R1

WASHER

1-1/32 x 1-1/2 x 11 ga C-Z

2шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga C-Z

1шт.

46

Y24430

KEY,1/4" Sq x 1 1/2", Par

1/4 x 1-1/2 sq-parallel

1шт.

47

493451R1

CAM ASSY

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

4шт.

475954R1

NUT

3/8-16 C-Z flange lock

4шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

SCREW, 3/8 x 1-1/4 znd sq-nk crg

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

12шт.

48

CHAIN REEL, use 43 str links of no. 3 machine chain, purchase locally

1шт.

49

S-HOOK, reel chain no. 39, purchase locally

1шт.

50

493457R1

SPRING, reel extension

5шт.

51

540059R1

HOOK, chain

10шт.
