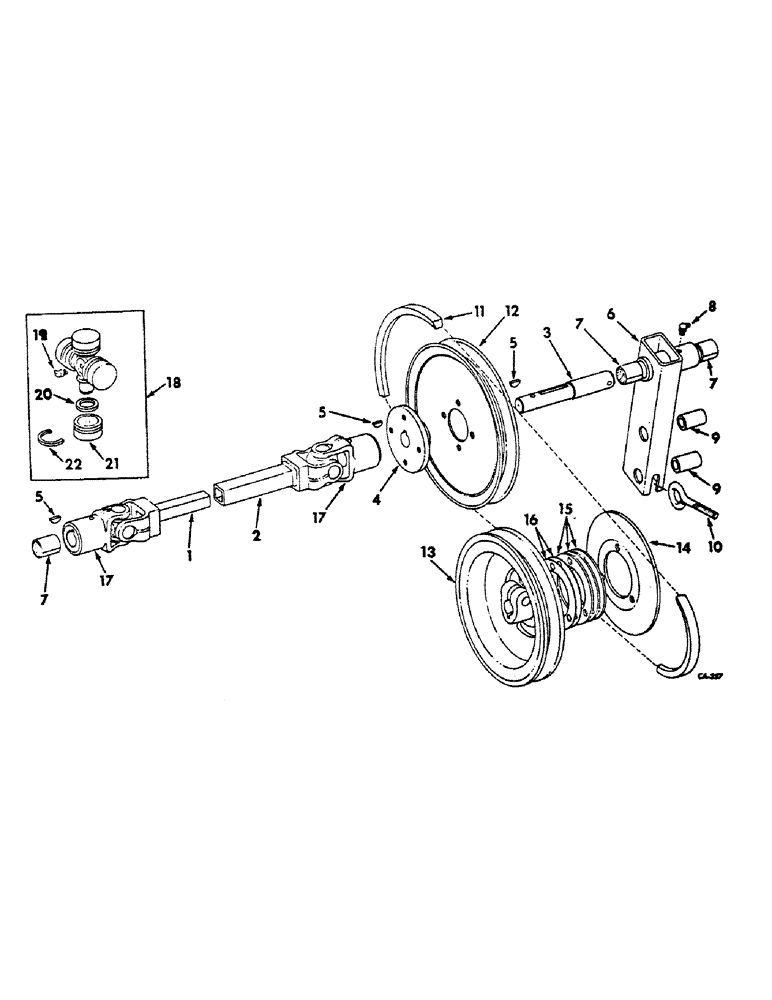

Запчасти Case IH 816 (G-26) - REEL DRIVE CONVERSION

1

493182R91

JOINT W/SHAFT ASSY, universal

1шт.

20704R1

WASHER

1-1/32 x 1-1/2 x 11 ga C-Z

1шт.

21951R1

PIN,5/16" x 2 1/4"

5/16 x 2-1/4 C-Z std-hd

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

2

493183R91

JOINT W/TUBE ASSY, universal

1шт.

21951R1

PIN,5/16" x 2 1/4"

5/16 x 2-1/4 C-Z std-hd

1шт.

3

493184R1

SHAFT, rear

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga C-Z, or as required

4шт.

21742R1

WASHER

1-1/32 x 1-1/2 x 22 ga C-Z, or as required

3шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

4

493185R1

HUB, drive pulley

1шт.

5

NLS

NO LONGER SERVICED

1/4 x 1 Woodruff

3шт.

6

493186R91

ARM ASSY, support

1шт.

7

487307R1

BUSHING

3шт.

8

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-27 ptf 90 deg angle lub

1шт.

9

363830R1

SPACER,1/2" X-Strng Pipe x 1 1/2"

1/2 x 1-1/2 std pipe

2шт.

10

493189R1

EYEBOLT

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

22229R1

SCREW, 1/2-13 x 2-1/8 znd hex-hd cap

2шт.

460869R1

NUT, 1/2-13 C-Z flange lock

2шт.

11

493190R1

BELT, reel drive pulley

1шт.

12

569157R11

PULLEY ASSY, reel drive

1шт.

181593

BOLT,Hex, 5/16" - 24 x 5/8", Gr 5

SCREW, 5/16/24 x 5/8 znd hex-hd cap

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

13

493191R1

PULLEY, combination drive

1шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

SCREW, 1/2-13 x 2-1/4 znd hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

14

493192R1

DISK, pulley

2шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

SCREW, 3/8-16 x 1-1/2 znd hex-hd cap

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

15

493193R1

SPACER, pulley 11 ga

3шт.

16

493194R1

SPACER, pulley 16 ga

2шт.

17

462477R1

YOKE

W/KEYWAY

2шт.

18

150635R92

SPIDER

CROSS ASSY, center

2шт.

19

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 ptf 65 deg angle lub

1шт.

20

357425R1

CORK SEAL

cork oil

4шт.

21

661678R91

BEARING

CUP ASSY, needle brg

4шт.

22

357426R1

RING

snap

4шт.
