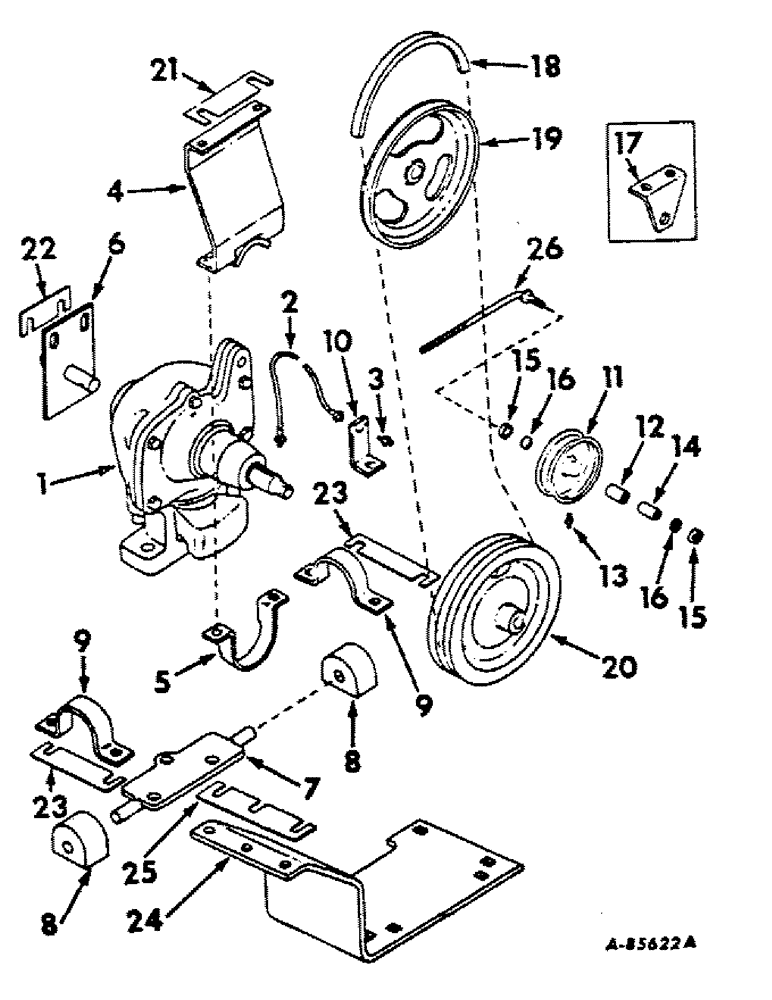

Запчасти Case IH 816 (G-23) - BALANCED HEAD DRIVE AND RELATED PARTS
№
Артикул
Название
Примечание
Количество
1
484670R91
HOUSING ASSY, balance head, for components see list of parts under details of balance head
1шт.
2
482225R91
HOSE ASSY, lubricating
1шт.
144030
NUT
1/8-27 brg pipe lock
1шт.
3
86636814
LUBE NIPPLE,1/4"-28 x .52" lg
FITTING, 1/4-28 NF2 str lub
1шт.
4
487899R1
BRACKET, rear mounting, 1967 & since, on machines built prior to 1967, also order clamp, 487910R1 and 4 shim, 487902R1
1шт.
181700
BOLT,Hex, 1/2" - 20 x 1 1/2", Gr 5
SCREW, 1/2-20 x 1-1/2 C-Z hex-hd cap
2шт.
484781R1
NUT
1/2-20 C-Z flange lock
2шт.
5
487910R1
CLAMP, balance head, 1967 & since, on machines built prior to 1967, also order bracket assy, 487899R1 and 4 shim, 487902R1
1шт.
NLS
NO LONGER SERVICED
5/8-18 x 1-1/4 hex-hd cap
2шт.
114609
LOCK WASHER,Ext Tooth, 5/8"
WASHER, LOCK, Ext Tooth, 5/8"
4шт.
425-1110
NUT,5/8"-18, G5
2шт.
6
487909R1
BLOCK ASSEMBLY, mounting, 1967 & since, on machines built prior to 1967 also order 6 shim, 487903R1
1шт.
181696
1/2-20 x 1 C-Z hex-hd cap
2шт.
487781R1
NUT, 1/2-20 C-Z flange lock
2шт.
7
482208R1
PLATE, mounting
1шт.
413-1024
BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5
SCREW, 5/8-11 x 1-1/2 hex-hd cap
3шт.
111649
WASHER, 5/8 int-tooth lock
3шт.
8
482209R1
PAD
rubber
2шт.
9
493210R1
CLAMP ASSY, LH
1шт.
88530
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5
BOLT, 1/2 x 1-3/4 znd sq-nk crg
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
9
493211R1
CLAMP ASSY, RH
1шт.
466971R1
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5
BOLT, 1/2 x 2 znd sq-nk crg
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
10
482211R1
BRACKET, lub fitting
1шт.
11
469611R91
PULLEY
IDLER ASSY
1шт.
12
464897R1
BUSHING, idler
1шт.
14
464989R1
VENT
BEARING, idler
1шт.
15
464899R1
CUP WASHER
cupped
2шт.
16
464900R1
THRUST WASHER
thrust
2шт.
17
482221R1
BRACKET, C-section idler, 1966
1шт.
179882
PIN
SCREW, 1/2-13 x 1-1/8 hex-hd cap
2шт.
76730H
WASHER
17/32 x 1-1/2 x 16 ga
2шт.
179891
SHAFT
SCREW, 1/2-13 x 2-1/2 hex-hd cap
1шт.
Q5035
WASHER
17/32 x 1 x 16 ga, or as required between bracket & pulley
2шт.
482253R1
NUT, 1/2-13 flange lock
2шт.
473361R1
NUT, 1/2-13 small flange lock
1шт.
18
482223R2
BELT,0.88" W
C section, Unit A 0.88" W
1шт.
18
485764R1
BELT,0.88" W x 51.00" L
C section, Unit B 0.88" W x 51.00" L
1шт.
18
487939R1
V-BELT 0.88" W x 60.65" L, C section, 1967 & since, Used with pulley 456568R3 0.88" W x 60.65" L
1шт.
18
493213R1
BELT, C section, for reel conversion
1шт.
19
456567R3
PULLEY
drive, unit A, 1966
1шт.
19
456568R5
PULLEY
drive, unti B, 1967 & since
1шт.
113782
KEY
1/4 x 1 Woodruff
1шт.
22963R1
HEADED PIN,5/16" x 2 1/4"
PIN, 5/16 x 2-1/4 C-Z std-hd
1шт.
648002
KNIFE
1/8" x 3/4"
1шт.
20
478787R11
PULLEY
balance head drive, unit A
1шт.
20
485763R1
PULLEY, balance head drive, unit B
1шт.
21
487902R1
SHIM, mounting bracket, or as required, for 1966 machines that have been reworked and 1967 and since
4шт.
22
487903R1
SHIM, mounting bracket, or as required, for 1966 machines that have been reworked and 1967 and since
4шт.
23
487905R1
SHIM, lower mount, 1967 & since, used or as required
6шт.
24
487906R1
SUPPORT, balance head, 1967 & since
1шт.
181702
BOLT,Hex, 1/2" - 20 x 1 3/4", Gr 5
SCREW, 1/2-20 x 1-3/4 znd hex-hd cap
2шт.
20601R1
WASHER
17/32 x 1-1/4 x 11 ga C-Z
4шт.
120371
NUT,1/2"-20, G5
4шт.
271746
INSERT,Hex, 5/8" - 18 x 1 3/4", Gr 5
SCREW, 5/8-18 x 1-3/4 znd hex-hd cap
2шт.
425-110
5/8-18 C-Z hex.
4шт.
485734R1
CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd
BOLT, 1/2 x 1-1/4 C-Z sq-nk crg
4шт.
178373R1
WASHER
17/32 x 1 x 16 ga C-Z
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
8шт.
619008R1
BOLT
1/2 x 1 sq-nk crg
1шт.
487374R1
BEARING LOCK NUT,Flg, USR, 1/2"-13
1/2-13 C-Z flange lock
1шт.
25
487904R1
SHIM, balance head support, 1967 and since, or as required
4шт.
272417
HYDRAULIC PUMP
SCREW, 1/2-20 x 5-1/4 phc hex-hd cap
3шт.
484781R1
NUT
1/2-20 C-Z flange lock
3шт.
26
487370R1
ROD ASSY, belt tightener, 1967 & since
1шт.
473361R1
NUT, 1/2-13 small flange lock
1шт.
120238
JAM NUT,Jam, 1/2"-13, G5
1/2-13 C-Z hex. jam
2шт.
Выбрано товаров: 69
