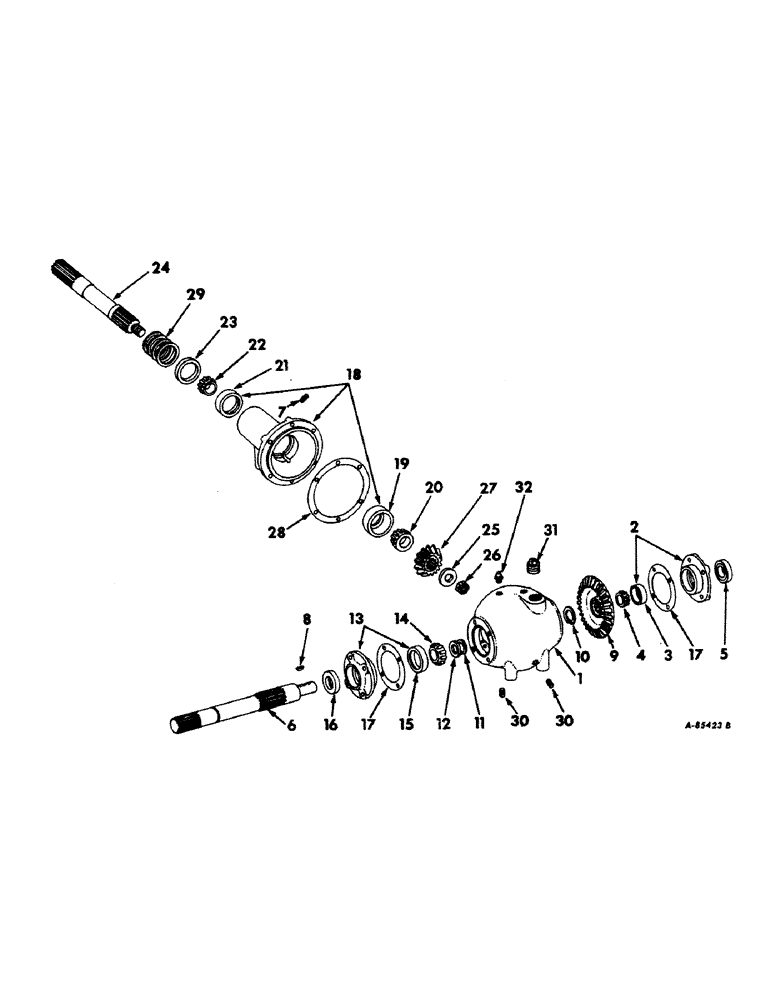

Запчасти Case IH 816 (G-22) - GEAR BOX

1

629439R1

CASE

main drive

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

Into main drive case top Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

2

466312R11

CAP W/CUP, rear output

1шт.

For tractors equipped w/540 RPM power take-off

1шт.

2

485765R11

CAP W/CUP, rear output

1шт.

For tractors equipped w/1000 RPM power take-off

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

3

567847R1

BEARING, CUP,76.22mm OD x 17.46mm W

BEARING, input shaft rear cup

1шт.

4

567848R91

CONE

BEARING ASSY, input shaft rear cone

1шт.

5

83163R91

OIL SEAL

input shaft rear oil

1шт.

6

482212R1

SHAFT, input

1шт.

457216R1

HEADED PIN,5/16" x 2 1/4"

PIN, 5/16 x 2-1/4 std-hd

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

7

444574

PLUG,Sq Hd, 1/4"-18 NPTF

1/4 sq-hd pipe, in main drive case housing

1шт.

8

NLS

NO LONGER SERVICED

1/4 x 1 Woodruff 15

1шт.

9

471689R1

GEAR WHEEL

GEAR, drive, 26 T

1шт.

For tractors equipped w/540 RPM power take-off

1шт.

9

472891R1

GEAR, drive, 21 T

1шт.

For tractors equipped w/1000 RPM power take-off

1шт.

10

573984R1

SNAP RING

RING, input shaft rear retaining

1шт.

11

659380R1

SNAP RING,#137, Ext

Ring, Snap, , input shaft front, 1966 #137, Ext

1шт.

11

376909R1

SNAP RING,#137, 1.291", Ext

RING, input shaft front retaining, 1967 & since

1шт.

12

477230R1

SPACER, order 487000R1 and 376909R1

1шт.

12

487000R1

SPACER

1шт.

13

626840R11

CAP

W/CUP, main drive case input

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

20285H

WASHER

13/32 x 3/4 x 11 ga

2шт.

14

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING, input shaft front cone

1шт.

15

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Assy, Input shaft front

1шт.

16

629355R91

SEAL

main drive case front oil

1шт.

17

626838R1

SHIM

cap and cover, .020

1шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

1шт.

17

626839R1

SHIM

cap and cover, .005, or as required

4шт.

18

466299R11

HOUSING

W/CUPS, RH output

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

19

13201D

TAPERED BEARING

BEARING, RH output inner cup

1шт.

20

13499DA

TAPERED BEARING

BEARING ASSY, RH output inner cone

1шт.

21

17498D

TAPERED BEARING," ID x 76.2125 mm OD x 23.9135 mm

BEARING, RH output outer cup

1шт.

22

25488H

ROLLER BEARING,38.1063 mm ID x 25.565 mm

BEARING ASSY, RH output outer cone

1шт.

23

291596R91

SEAL

RH output outer brg oil

1шт.

24

482213R11

SHAFT ASSY, RH outer

1шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

17428R1

BOLT,Hex, 1/2"-13 x 1", G2, Full Thd

1/2 x 1 hex-hd mach

1шт.

615090R1

WASHER

17/32 x 2 x 11 ga

1шт.

25

453599R1

WASHER

29/32 x 2 x 3 ga

1шт.

26

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-9 slt hex.

1шт.

27

466303R1

GEAR

RH output shaft driven, 16T

1шт.

For tractors equipped w/540 RPM power take-off

1шт.

27

472890R1

GEAR

RH output shaft driven, 21T

1шт.

For tractors equipped w/1000 RPM power take-off

1шт.

28

626835R1

SHIM

RH output housing .020, or as required

2шт.

28

626836R1

SHIM

RH output housing .007, or as required

2шт.

28

626837R1

SHIM

RH output housing .005, or as required

2шт.

29

243

WASHER, 1-17/32 x 2 x 16 ga, or as required

8шт.

30

445671

PLUG,Sq Hd, 1/8"-27 NPTF

1/8 sq-hd pipe

2шт.

31

444600

BUSHING

1-11-1/2 sq-hd pipe

1шт.

32

464989R1

VENT

BREATHER

1шт.
