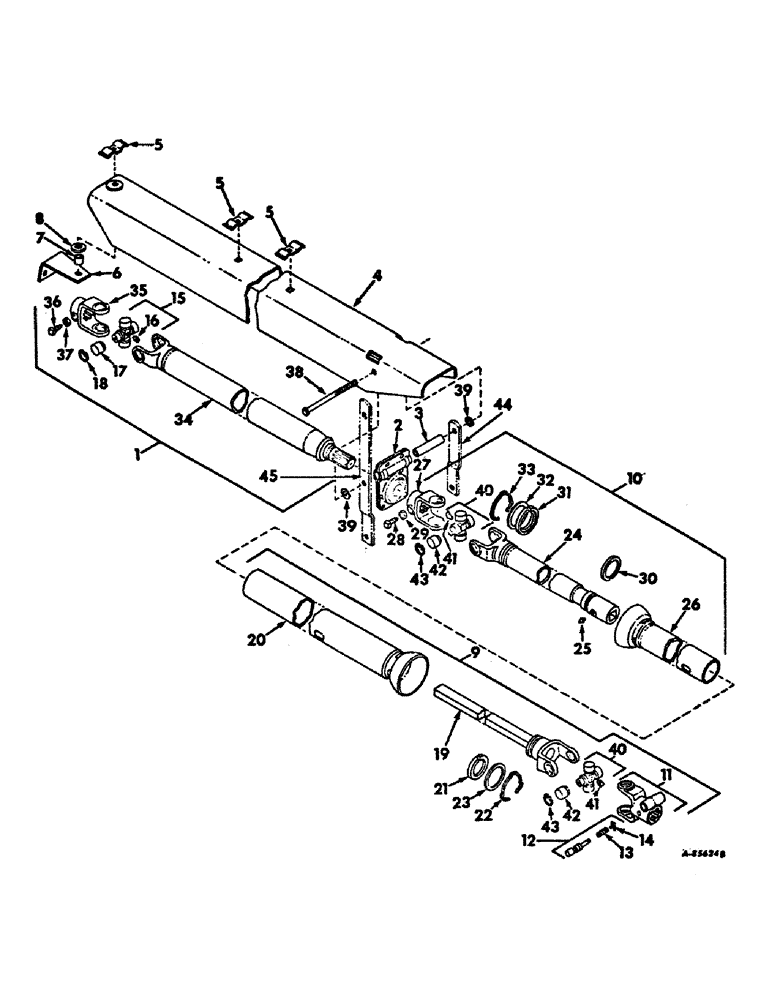

Запчасти Case IH 816 (G-20) - POWER DRIVE, SHIELD AND RELATED PARTS

1

482262R91

JOINT ASSY, input drive shaft, Rockwell standard

1шт.

1

482263R91

JOINT ASSY, input drive shaft, chain belt

1шт.

1

488105R91

JOINT ASSY, input drive, heavy duty

1шт.

2

ST669

BEARING ASSY,35mm ID

BEARING, pedestal ball

1шт.

3

463580R1

SPACER,1/2" Pipe x 4.109"

pedestal brg

1шт.

4

484297R91

SHIELD ASSY, input drive

1шт.

5

515030R1

CLAMP

hose

3шт.

605291R1

BOLT, 3/8-16 x 1-1/4 sq-nk crg

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x 16 ga C-Z

2шт.

472144R1

NUT

3/8-16 C-Z hex. 2 way lock

2шт.

6

482673R1

BRACKET, input drive shield

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3/8-16 x 1-3/4 C-Z hex-hd cap

1шт.

472144R1

NUT

3/8-16 C-Z hex. 2-way lock

1шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x 16 ga C-Z

1шт.

178372R1

WASHER

13/32 x 1-1/4 x 16 ga C-Z

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

7

661290R1

SPACER

1шт.

8

472188R1

SPACER, rubber

1шт.

9

469354R92

JOINT ASSY, tractor half

1шт.

9

155734C91

JOINT ASSY, tractor half, heavy duty

1шт.

10

469355R91

JOINT ASSY, implement half

1шт.

10

155735C91

JOINT ASSY, implement half, heavy duty

1шт.

11

568100R92

YOKE

ASSY, quick detachable, Rockwell standard

1шт.

For tractors equipped w/540 RPM power take-off

1шт.

11

668335R11

FORK

YOKE ASSY, quick detachable, chain belt

1шт.

For tractors equipped w/540 RPM power take-off

1шт.

11

472857R91

YOKE

ASSY, quick detachable

1шт.

For tractors equipped w/1000 RPM power take-off

1шт.

11

660484R21

FORK

YOKE ASSY, quick detachable, heavy duty

1шт.

12

455346R21

PIN

ASSY, lock, 540 RPM & heavy duty

1шт.

For tractors equipped w/540 RPM power take-off

1шт.

12

631976R91

PIN

ASSY, lock

1шт.

For tractors equipped w/1000 RPM power take-off

1шт.

13

455347R1

VALVE SPRING

SPRING, lock pin, 540 RPM & heavy duty

1шт.

For tractors equipped w/540 RPM power take-off

1шт.

13

587479R1

SPRING

lock pin

1шт.

For tractors equipped w/1000 RPM power take-off

1шт.

14

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

X-WASHER, lock pin

1шт.

15

569047R91

REPAIR KIT

CROSS ASSY, center, used with 482262R91

1шт.

15

667496R91

SPIDER ASSY.

CROSS ASSY, center, used with 482263R91, serviced only as assy.

1шт.

15

347960R91

U-JOINT SPIDER

CROSS ASSY, center, heavy duty

1шт.

16

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 ptf 65 deg angle lub

1шт.

17

569044R91

BEARING ASSY

ASSY, needle cup, used with 569047R91

4шт.

17

669563R91

NEEDLE BEARING

ASSY, needle cup, heavy duty

4шт.

18

576420R1

RING

brg retaining, used with 569047R91

4шт.

18

495962R1

RING

brg retaining, heavy duty

4шт.

19

469435R2

YOKE

SHAFT W/YOKE, Rockwell standard

1шт.

19

481634R92

SHAFT W/YOKE, chain belt

1шт.

19

935844R91

YOKE

SHAFT W/YOKE, heavy duty

1шт.

20

469436R1

SHIELD, outer, Rockwell standard

1шт.

20

481635R1

SHIELD, outer, chain belt

1шт.

20

466371R1

SHIELD

outer, heavy duty

1шт.

21

464920R1

NYLON BEARING,2.08" ID x 2.8" OD x 0.38"

shield

1шт.

22

613436R1

CLAMP

RING, shield retaining

1шт.

23

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

shield brg thrust

1шт.

24

469438R1

YOKE

W/TUBE, Rockwell standard

1шт.

24

481639R91

YOKE W/TUBE, chain belt

1шт.

24

466372R1

YOKE

W/TUBE, heavy duty

1шт.

25

49688R1

FITTING, 1/4-28NF, 2 str lub

1шт.

26

469437R1

SHIELD, inner, Rockwell standard

1шт.

26

481638R1

SHIELD, inner, chain belt

1шт.

26

466374R2

SHIELD

inner, heavy duty

1шт.

27

460620R1

YOKE

Rockwell standard

1шт.

27

480755R1

YOKE

chain belt

1шт.

27

664179R1

YOKE

heavy duty

1шт.

28

38904K

SET SCREW,1/2" - 20 x 1-9/16"

1/2-20 x 1-3/16 sq-hd cup pt set

1шт.

29

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, 1/2-20 hex. jam

1шт.

30

613439R1

BRACKET

BEARING, nylon support

1шт.

31

464920R1

NYLON BEARING,2.08" ID x 2.8" OD x 0.38"

nylon

1шт.

32

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

thrust

1шт.

33

613436R1

CLAMP

RING, snap

1шт.

34

482902R1

YOKE TUBE STUB, used with 482262R91

1шт.

34

482903R1

YOKE TUBE STUB, used with 482263R91

1шт.

34

488484R1

YOKE TUBE STUB, heavy duty

1шт.

35

460620R1

YOKE

used with 482262R91

1шт.

35

480755R1

YOKE

used with 482263R91

1шт.

35

664179R1

YOKE

heavy duty

1шт.

36

38904K

SET SCREW,1/2" - 20 x 1-9/16"

SCREW, sq-hd cup-pt set, used with 482262R91 and heavy duty

1шт.

36

482904R91

SCREW W/NUT, set, used with 482263R91

1шт.

37

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, 1/2-20 hex. jam

1шт.

38

20546R1

SCREW,Hex, 1/2"-13 x 6", G5

1/2-13 x 6 C-Z hex-hd cap

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 hex. 2 way lock

1шт.

178373R1

WASHER

17/32 x 1 16 ga C-Z

1шт.

39

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

2шт.

40

569047R91

REPAIR KIT

CROSS ASSY, center, Rockwell standard

2шт.

40

479741R91

KIT

CROSS ASSY, center, chain belt

2шт.

40

374960R91

CROSS ASSY, center, heavy duty

2шт.

41

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 ptf 65 deg angle lub

2шт.

42

569044R91

BEARING ASSY

ASSY, needle cup, Rockwell standard

8шт.

42

479742R91

BEARING ASSY, needle cup, chain belt

8шт.

42

669563R91

NEEDLE BEARING

ASSY, needle cup, heavy duty

8шт.

43

576420R1

RING

brg retaining, Rockwell standard

1шт.

43

667498R1

RING

brg retaining, chain belt

8шт.

495962R1

RING

brg retaining, heavy duty

8шт.

44

SUPPORT, PTO, refer to main frame, tongue, hitch and related parts unit

1шт.

45

SUPPORT, hose and PTO brg, refer to main frame, tongue, hitch and related parts unit

1шт.
