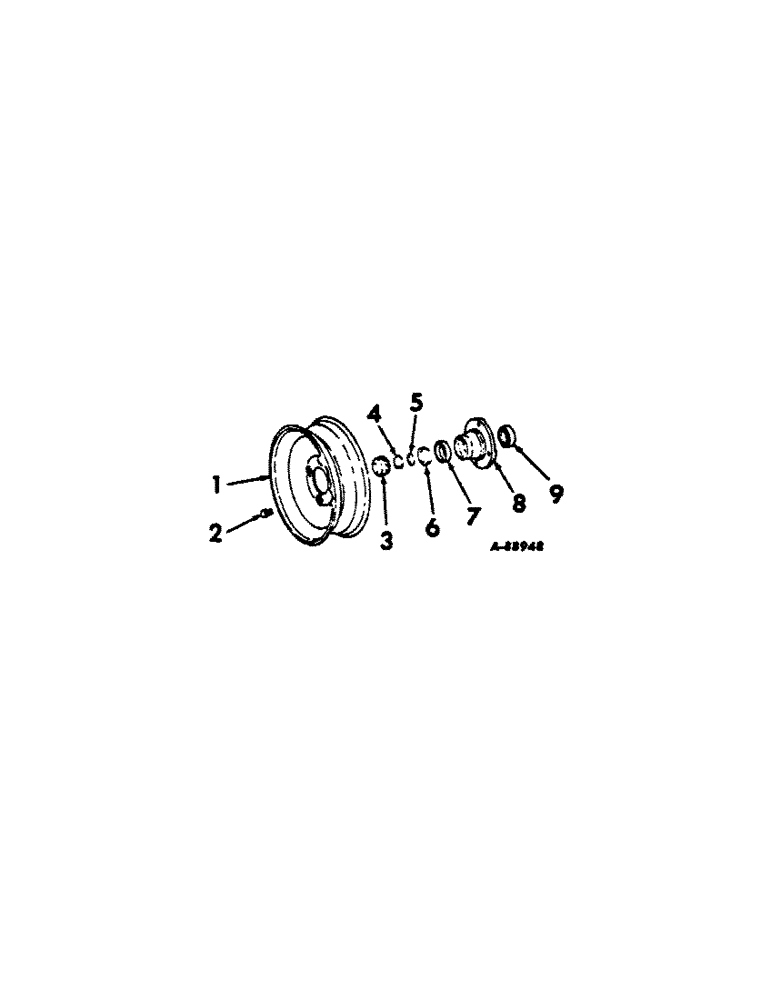

Запчасти Case IH 816 (G-19) - WHEELS AND RELATED PARTS

1

455169R92

WHEEL

ASSY, 15 x 4-1/2KB, 2 disk & rim, for 5.90-15 pneumatic tire

1шт.

2

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

1/2-20 x 15/16 C-Z conical-hd wheel hub

8шт.

3

651194R1

CAP

wheel hub

2шт.

4

69442D

NUT

3/4-16 slt hex. jam

2шт.

5

575813R1

WASHER

25/32 x 1-1/4 x 11 ga

2шт.

6

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, wheel hub outer cone

2шт.

6

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

7

651814R1

BEARING CUP

BEARING, wheel hub outer cup

2шт.

8

465492R2

HUB

wheel

2шт.

9

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

W/SEAL, wheel hub inner

2шт.
