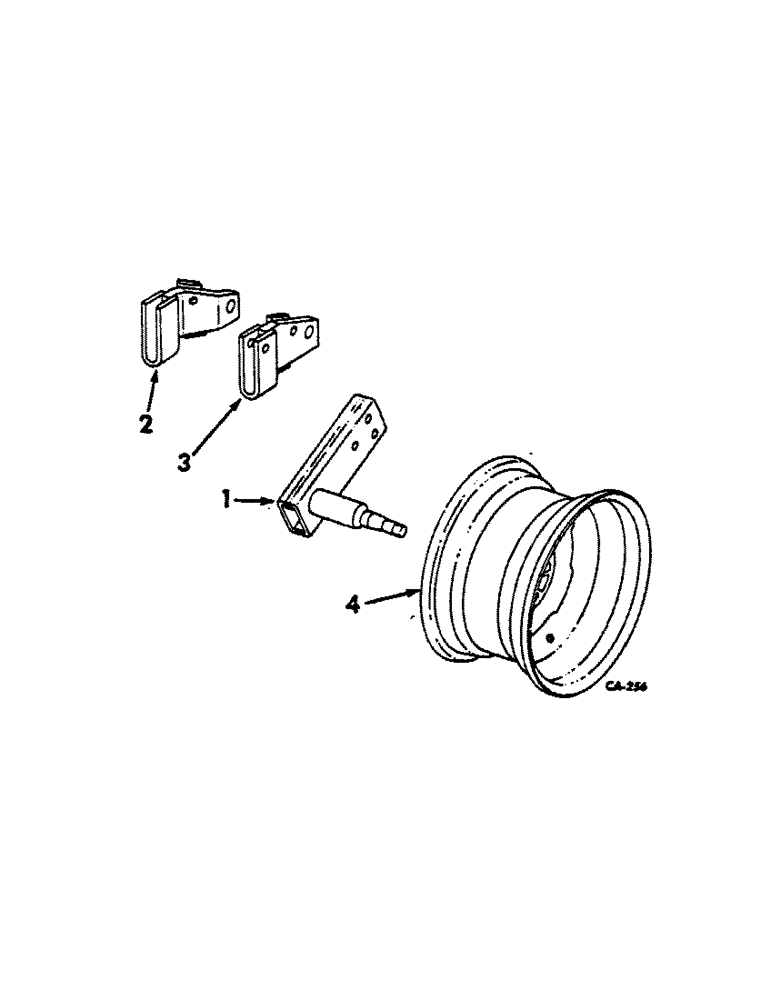

Запчасти Case IH 816 (G-19[A]) - FLOTATION TIRE ATTACHMENT

1

489131R1

EXTENSION ASSY, axle RT

1шт.

69442D

NUT

3/4-16 slt hex.

1шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga C-Z

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

2

489135R1

ARM ASSY, hydraulic cylinder upper, 1967 & since

1шт.

21849R1

PIN, 5/8 x 2-1/8 C-Z std-hd 5/8" x 2 1/8"

1шт.

21848R1

HEADED PIN,5/8" x 2"

PIN, 5/8 x 1-3/4 C-Z std-hd

1шт.

21796R1

WASHER

21/32 x 1 x 16 ga C-Z

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

2шт.

3

489139R1

ARM ASSY, hydraulic cylinder upper, 1966

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

2шт.

21796R1

WASHER

21/32 x 1 x 16 ga C-Z

1шт.

21848R1

HEADED PIN,5/8" x 2"

PIN, 5/8 x 1-3/4 C-Z std-hd

1шт.

21849R1

PIN, 5/8 x 2-1/8 C-Z std-hd 5/8" x 2 1/8"

1шт.

4

489138R1

WHEEL, pneumatic, 15 in.

2шт.

TIRE, pneumatic 11.00-15 x 6 ply

2шт.

TUBE, pneumatic 11.00-15 w/valve

2шт.
