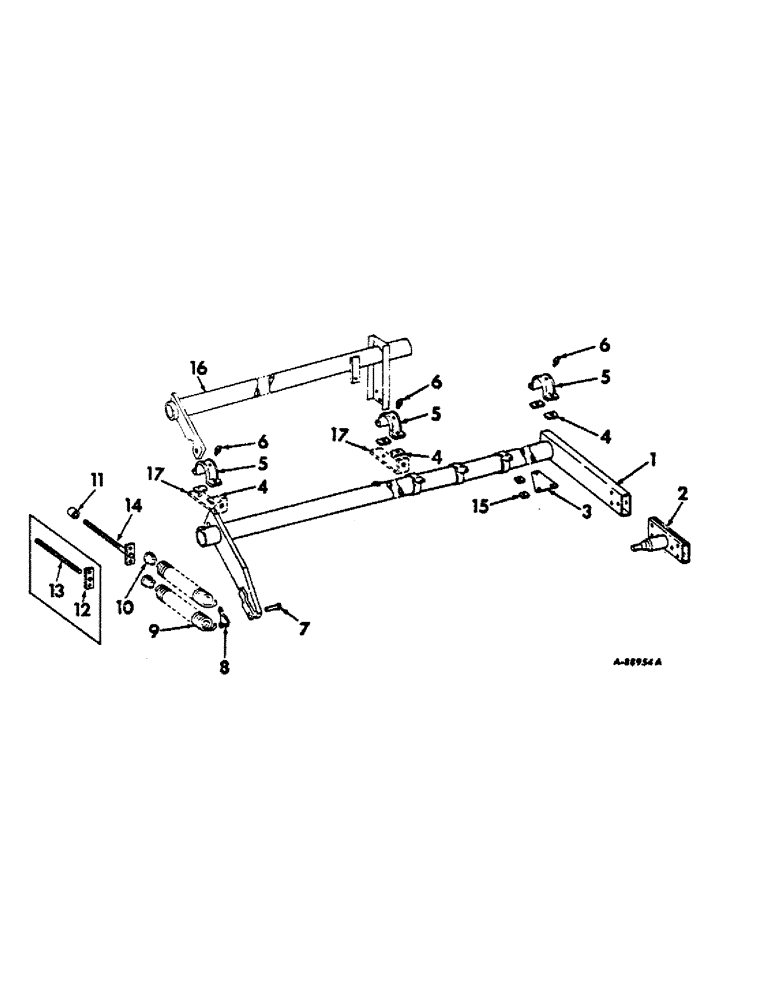

Запчасти Case IH 816 (G-17) - REAR AXLE AND BALANCE SPRINGS

1

482226R91

AXLE ASSY, rear, with 3 clamps, 482683R1, for 9 ft. machines

1шт.

1

482244R91

AXLE ASSY, rear, with 3 clamps, 482683R1, for 7 ft. machines

1шт.

181709

SCREW,Hex, 1/2" - 20 x 1/2"

1/2-20 x 2-1/2 C-Z hex-hd cap

3шт.

484781R1

NUT

1/2-20 C-Z flange lock

3шт.

2

482231R91

EXTENSION ASSY, axle

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

3

483138R1

BLOCK, axle support, 1966

1шт.

86837293

SHAFT

1/2-20 x 1 C-Z hex-hd cap

1шт.

484781R1

NUT

1/2-20 C-Z flange lock

1шт.

3

487933R1

BLOCK, axle support, 1967 & since

1шт.

181698

BOLT,Hex, 1/2" - 20 x 1 1/4", Gr 5

SCREW, 1/2-20 x 1-1/4 C-Z hex-hd cap

1шт.

484781R1

NUT

1/2-20 C-Z flange lock

1шт.

4

469407R1

BAR

SHIM, axle clamp, or as required

24шт.

5

469433R1

CLAMP

center axle

3шт.

181700

BOLT,Hex, 1/2" - 20 x 1 1/2", Gr 5

SCREW, 1/2-20 x 1-1/2 C-Z hex-hd cap

1шт.

484781R1

NUT

1/2-20 C-Z flange lock

6шт.

191769

BOLT,Hex, 1/2" - 20 x 5 1/2"

SCREW, 1/2-20 x 5-1/2 hex-hd cap

4шт.

181702

BOLT,Hex, 1/2" - 20 x 1 3/4", Gr 5

SCREW, 1/2-20 x 1-3/4 C-Z hex-hd cap

1шт.

6

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4-28 45 deg self-tap lub

3шт.

7

465839R1

PIN, 1/2 x 2-5/16 std-hd, 1966

1шт.

7

21481R1

PIN, 9/16 x 2-1/8 std-hd, 1967 & since

1шт.

Q5035

WASHER

17/32 x 1 x 16 ga

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

8

486264R1

HOOK ASSY, reinforced equalizer

1шт.

9

483885R3

SPRING, rear axle float, for 9 ft. machines

2шт.

9

483886R2

SPRING, rear axle float, for 7 ft. machines

2шт.

10

485120R1

PLUG, spirng, for 9 ft. machines

2шт.

10

600030R1

PLUG, spring, for 7 ft. machines

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

11

468712R1

HUB, lever

1шт.

12

M42264

EQUALIZER, lift spring, 1966

1шт.

13

483888R1

STUD, 1966

1шт.

612887R1

WASHER

21/32 x 1-1/4 x 11 ga

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

114507

JAM NUT,Jam, 5/8"-11, G5

1шт.

14

487368R1

STUD ASSEMBLY, float spring, 1967 & spring

1шт.

612887R1

WASHER

21/32 x 1-1/4 x 11 ga

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

15

604355R1

WASHER, bevel

2шт.

16

493355R91

AXLE W/SPRING ANCHOR ASSY, rear, for float and Windrower extension

1шт.

17

BRACKET, cover shield rear mounting, refer to main frame, tongue, hitch and related parts unit

1шт.
