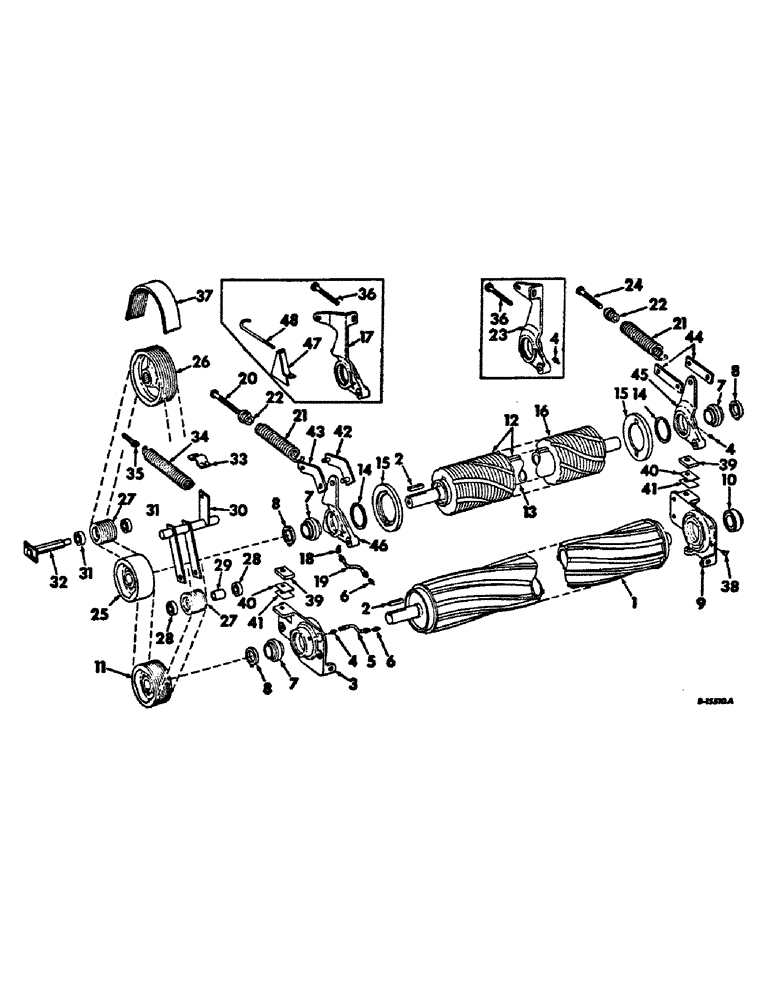

Запчасти Case IH 816 (G-13) - ROLLS, DRIVE PULLEYS AND RELATED PARTS

1

482173R91

ROLL ASSY, lower, for 9 ft. machines

1шт.

1

482183R91

ROLL ASSY, lower, for 7 ft. machines

1шт.

19538R1

BOLT (SPREADER)

BOLT, 7/16-14 LH x 1 hex-hd mach

1шт.

463501R1

WASHER, 15/32 x 2 x 11 ga

2шт.

136857

WASHER,Ext Tooth, 7/16"

7/16 C-Z ext-tooth lock

1шт.

2

Q459

KEY,3/8" Sq x 2 1/4", Par

3/8 x 2-1/4 sq parallel

2шт.

3

482180R2

HOUSING, lower roll brg LH

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

5шт.

231-5146

FLANGE NUT,3/8"-16

3/8-16 flange lock

5шт.

4

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str self-tap, lub

2шт.

5

483459R91

HOSE ASSY

1шт.

144030

NUT

1/8-27 brs pipe lock

1шт.

6

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF, 2 str lub, into end of hose

2шт.

7

467172R91

BALL BEARING,38.1mm ID x 80mm OD x 21mm W

ball

3шт.

8

455112R11

COLLAR

W/SET SCREW, locking

3шт.

9

482181R2

HOUSING, lower roll brg RH

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

5шт.

231-5146

FLANGE NUT,3/8"-16

3/8-16 flange lock

5шт.

10

478038R92

BALL BEARING,38.1mm ID x 80mm OD x 21mm W

ball

1шт.

11

482182R1

PULLEY, lower roll

1шт.

12

482186R91

ROLL ASSY, upper, for 9 ft. machines

1шт.

12

482200R91

ROLL ASSY, upper, for 7 ft. machines

1шт.

179858

SUPPORT

SCREW, 7/16-14 x 1 hex-hd cap

1шт.

463501R1

WASHER, 15/32 x 2 x 11 ga

2шт.

136857

WASHER,Ext Tooth, 7/16"

7/16 C-Z ext-tooth lock

1шт.

13

482187R91

ROLL ASSY, upper tube, for 9 ft. machines

1шт.

13

482201R91

ROLL ASSY, upper tube, for 7 ft. machines

1шт.

14

380275R1

RING, external snap

2шт.

15

482193R1

COLLAR, retaining

2шт.

16

482194R1

DISC, roll, 70 or as required for 7 ft. machines, 105 or as required for 9 ft. machines

1шт.

16

482195R1

DISC, roll, 70 or as required for 7 ft. machines, 105 or as required for 9 ft. machines

1шт.

17

482196R1

ARM, upper roll brg LH, 1966

1шт.

18

580256R1

ADAPTER,45 Degree, 1/8"-27

1/8-27 ptf special short 45 deg elbow

1шт.

19

482198R91

HOSE ASSY

1шт.

144030

NUT

1/8-27 brs pipe lock

1шт.

20

QA5126

BOLT, 5/8-11 x 9-3/4 hex-hd mach

1шт.

114507

JAM NUT,Jam, 5/8"-11, G5

1шт.

21

PO199A

SPRING

extension

2шт.

22

SA1378A

PLUG

spring

2шт.

23

482197R1

ARM, upper roll brg RH, 1966

1шт.

24

566105R1

BOLT, 5/8-11 x 5-1/2 hex-hd

1шт.

114507

JAM NUT,Jam, 5/8"-11, G5

1шт.

25

482199R1

PULLEY, upper roll

1шт.

26

482215R1

PULLEY, drive

1шт.

27

482224R1

PULLEY, idler poly V

2шт.

28

ST432

BALL BEARING,15 mm ID x 42 mm OD x 15 mm

BEARING, idler pulley

2шт.

29

482216R1

SPACER, pipe

1шт.

30

482217R92

BRACKET ASSY, poly V idler, 1966

1шт.

30

487929R1

BRACKET ASSY, poly V idler, 1967 & since

1шт.

181746

SCREW, 9/16-18 x 3-3/4 C-Z hex-hd cap

1шт.

NLS

NO LONGER SERVICED

19/32 x 1-3/16 x 13 ga

1шт.

472215R1

LOCK NUT,9/16"-12, GB

NUT, 9/16-18 hex. 2 way lock

1шт.

31

ST485

BALL BEARING,0.828" ID x 1.6535" OD x 0.5906"

BEARING, idler w/hex. bore

2шт.

32

483137R91

SHAFT ASSY, front idler

1шт.

NLS

NO LONGER SERVICED

2шт.

231-5146

FLANGE NUT,3/8"-16

3/8-16 flange lock

2шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

2шт.

33

462290R1

STRAP, idler retaining

1шт.

NLS

NO LONGER SERVICED

2шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

2шт.

231-5146

FLANGE NUT,3/8"-16

3/8-16 whiz flange lock

2шт.

34

655123R1

SPRING

extension

1шт.

35

485226R2

EYE

BOLT, idler spring eye, 1966

1шт.

35

488217R2

BOLT,7/16" - 14 x 8"

idler spring eye, 1967 & since

1шт.

W6652

WASHER

15/32 x 1 x 16 ga

1шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 hex. 2 way lock

1шт.

36

668064R1

BOLT, 1/2-13 x 5-1/2 hex-hd mach, 1966

2шт.

114505

JAM NUT,Jam, 1/2"-13, G5

4шт.

16038R1

WASHER

17/32 x 1 x 11 ga

2шт.

37

482222R2

BELT

12 rib poly

1шт.

38

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4-28 45 deg self-tap lub

1шт.

39

487361R1

BAR, lower roll brg housing, 1967 & since

2шт.

179146

HEX SOC SCREW,3/8" - 16 x 1 1/4"

3/8-16 x 1-1/4 C-Z hex-soc-hd cap

2шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

40

487363R1

BAR, lower roll brg housing shim, 1967 & since, or as required

8шт.

41

487362R1

SHIM, lower roll brg housing, 1967 & since, or as required

4шт.

42

487364R1

BRACE ASSEMBLY, strap, 1967 & since

1шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 C-Z

2шт.

338835A1

TUBE

PIN, 3/16 x 1 cot.

2шт.

43

487365R1

BRACE, pressure strap, 1967 & since

1шт.

44

487367R1

BAR, connecting strap

2шт.

5699S

PIN, 1/2 x 1-3/16 std-hd

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 C-Z

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

45

487547R1

ARM, upper roll brg RH, 1967 & since

1шт.

46

487573R1

ARM, upper roll brg LH, 1967 & since

1шт.

47

487314R1

BRACKET ASSY, 1966

1шт.

191769

BOLT,Hex, 1/2" - 20 x 5 1/2"

SCREW, 1/2-20 C-Z hex-hd cap

3шт.

191777

SCREW, 1/2-20 C-Z hex-hd cap

1шт.

16412R1

SCREW, 1/2-20 phc hex-hd cap

4шт.

484781R1

NUT

1/2-20 C-Z flange lock

8шт.

48

487317R1

ROD, 1966

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.
