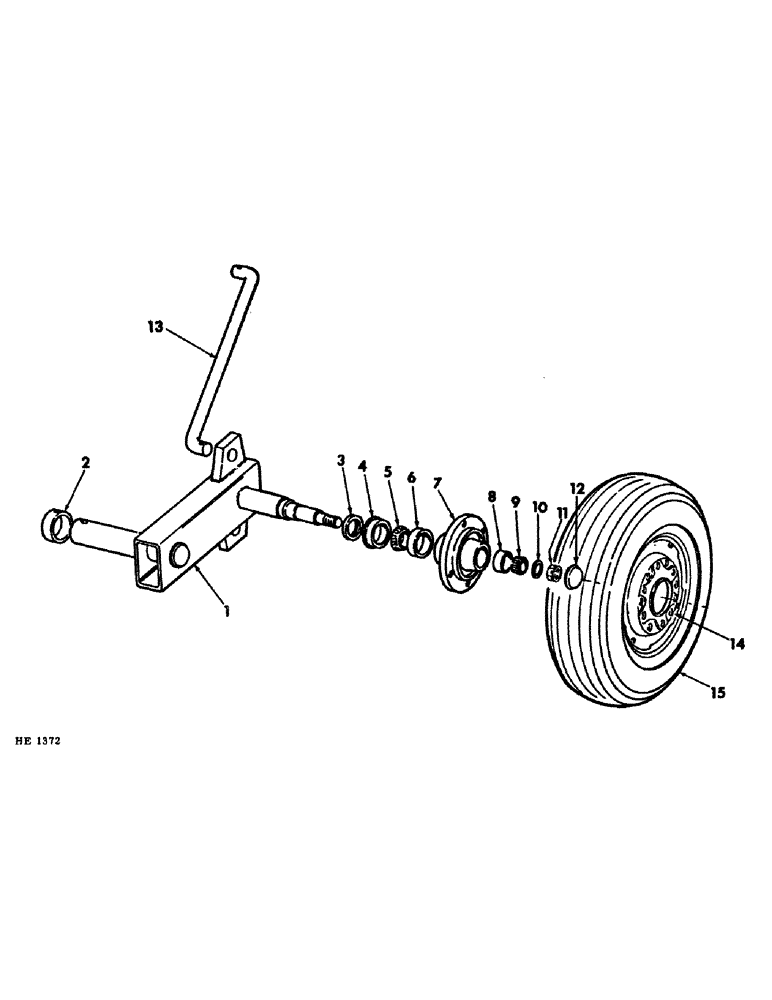

Запчасти Case IH 1290 (07) - WHEEL AXLE - TRANSPORT

1

824322C11

AXLE ASSY, transport wheel composed of (1) axle (NSS), (1) washer 467750R1, (1) nut 427640, (1) pin 163396

1шт.

2

619930R1

BUSHING

SPACER, axle lock collar

1шт.

19525R1

PIN,3/8" x 2 3/4", Coiled

1шт.

3

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

axle spindle oil

1шт.

4

472222R1

SLEEVE

oil seal wear

1шт.

5

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, inner bearing

1шт.

6

651817R1

BEARING CUP

CUP, inner bearing

1шт.

6

651817R1GV

BEARING CUP

Value, Bearing Cup

1шт.

7

810087C1

HUB

wheel

1шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel

6шт.

8

651814R1

BEARING CUP

CUP, outer bearing

1шт.

9

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE, outer bearing

1шт.

9

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

10

467750R1

WASHER

25/32 x 1-1/2 x 11 ga

1шт.

11

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4" hex stld

1шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

1шт.

12

602959R1

PLUG

CAP, hub

1шт.

13

824328C1

ROD, transport lock

1шт.

471194R1

AXLE PIN

C-PIN, Q.A.

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

14

481344R91

WHEEL

DISK AND RIM, 14 x 8 KB

1шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel

6шт.

387841R91

VALVE

tubeless tire

1шт.

15

TIRE, 8.5L-14 4 ply rib implement tubeless (code W-1 open center)

1шт.
