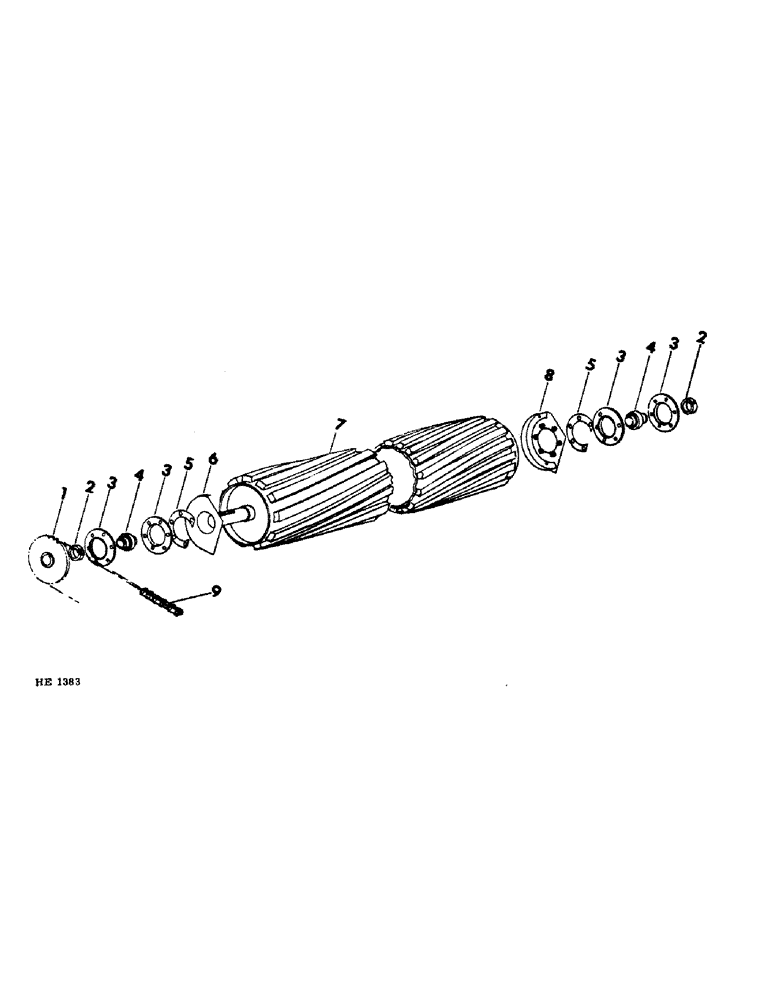

Запчасти Case IH 1290 (40) - CONDITIONER LOWER STEEL ROLL

1

599488R1

SPROCKET ASSY.

SPROCKET, 26T lower roll drive

1шт.

Q3947

KEY,Gib, 3/8" Sq x 1 1/2"

3/8 x 1-1/2" gib-hd

1шт.

2

517645R11

COLLAR

W/SCREW, bearing locking

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" cup-pt set

2шт.

3

825620C1

RETAINER

FLANGETTE, roll bearing

4шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4"

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

4

611583R91

BALL BEARING

BEARING, lower roll

2шт.

5

824078C1

SHIM, lower roll bearing retainer (5 LH side) (3 RH side)

1шт.

6

824190C1

SHROUD, lower roll LH

1шт.

7

599472R2

ROLL, steel lower

1шт.

8

824191C1

SHROUD, lower roll RH

1шт.

9

824140C1

CHAIN, 3/4" pitch standard (for service parts refer to "Conditioner Drive")

1шт.
