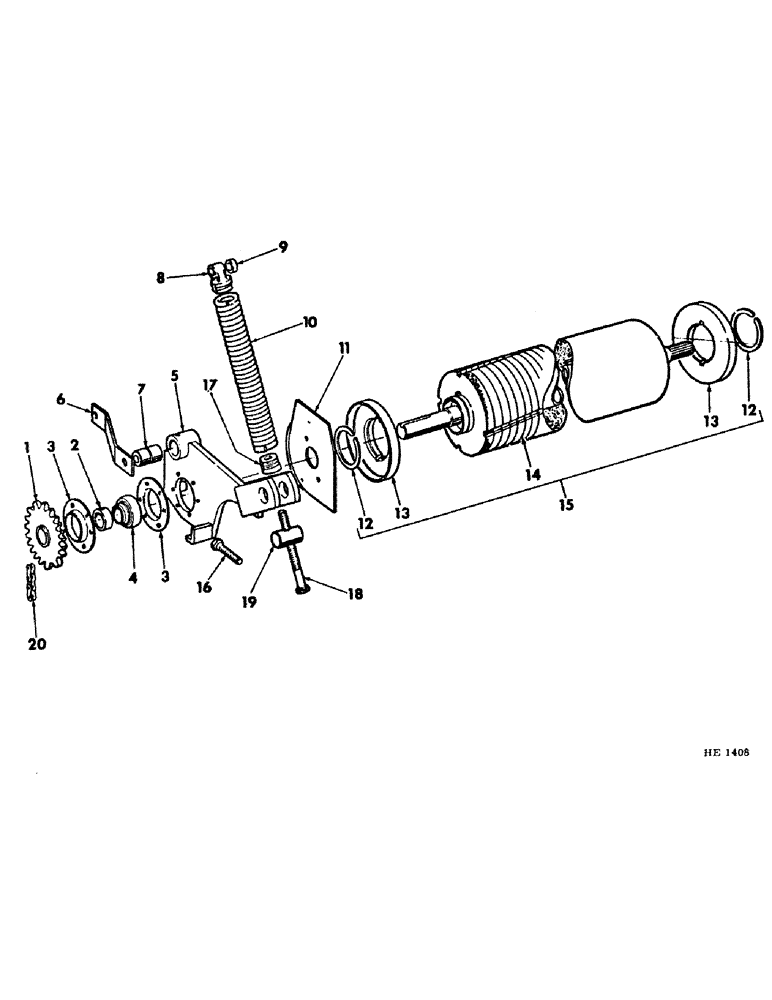

Запчасти Case IH 1290 (38) - CONDITIONER UPPER RUBBER ROLL

1

599488R1

SPROCKET ASSY.

SPROCKET, 26T upper roll drive

1шт.

Q3947

KEY,Gib, 3/8" Sq x 1 1/2"

3/8 x 1-1/2" gib-hd

1шт.

2

517645R11

COLLAR

W/SCREW, bearing locking

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" cup-pt set

2шт.

3

825620C1

RETAINER

FLANGETTE, roll bearing

4шт.

19020R1

PLOW BOLT,#3, 3/8" - 16 x 1 1/4", Gr 2

BOLT, 3/8 x 1-1/4" type 1 no. 3 plow

4шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4" crg

4шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8 x 2"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

4

611583R91

BALL BEARING

BEARING, upper roll

2шт.

5

824132C1

LEVER, upper roll return RH

1шт.

5

824214C1

LEVER, upper roll return LH shown

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

LUB-FITTING, 1/8 - 90deg.

2шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8 x 3-1/4"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

2шт.

86727275

WASHER, LOCK, 5/8"

2шт.

6

599483R1

BRACE, upper roll bearing housing

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

7

599063R2

BUSHING, upper roll bearing housing pivot

2шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8 x 3-1/4"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

2шт.

86729275

LOCK WASHER,5/8 0.634 CST ZND

WASHER, LOCK, 5/8"

2шт.

8

591544R1

PLUG

roll pressure spring upper

2шт.

Q1194

AXLE PIN,1/2" x 3"

PIN, 1/2 x 3" std-hd-dld

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

9

222890R1

SPACER, spring upper plug

2шт.

10

596191R1

SPRING

roll pressure

2шт.

11

824217C1

SHROUD, upper roll RH

1шт.

11

824216C1

SHROUD, upper roll LH shown

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/6 x 2"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

12

598318R1

RING, SNAP

RING, cap retaining

2шт.

13

598317R1

CAP

roller end

2шт.

14

598316R1

DISC

DISK, conditioner rubber, Serial Range: 139-145

1шт.

15

599475R92

ROLL ASSY, conditioner upper rubber composed of (2) ring 598318R1, (2) cap 598317R1, (145) disk 598316R1

1шт.

16

593295R1

BOLT

5/8-11 type 8 special

2шт.

21434R1

NUT,5/8"-11, G8

5/8" type 8

2шт.

17

596192R1

PLUG

roll pressure spring lower

2шт.

18

599486R1

BOLT, 5/8 x 7" bolt

2шт.

21793R1

WASHER

21/32 x 1-1/4 x 7 ga

2шт.

124847

COLLAR

5/8" jam

2шт.

19

824146C1

PIN, spring pivot

2шт.

20

824140C1

CHAIN, 3/4" pitch standard (for service parts refer to "Conditioner Drive")

1шт.
