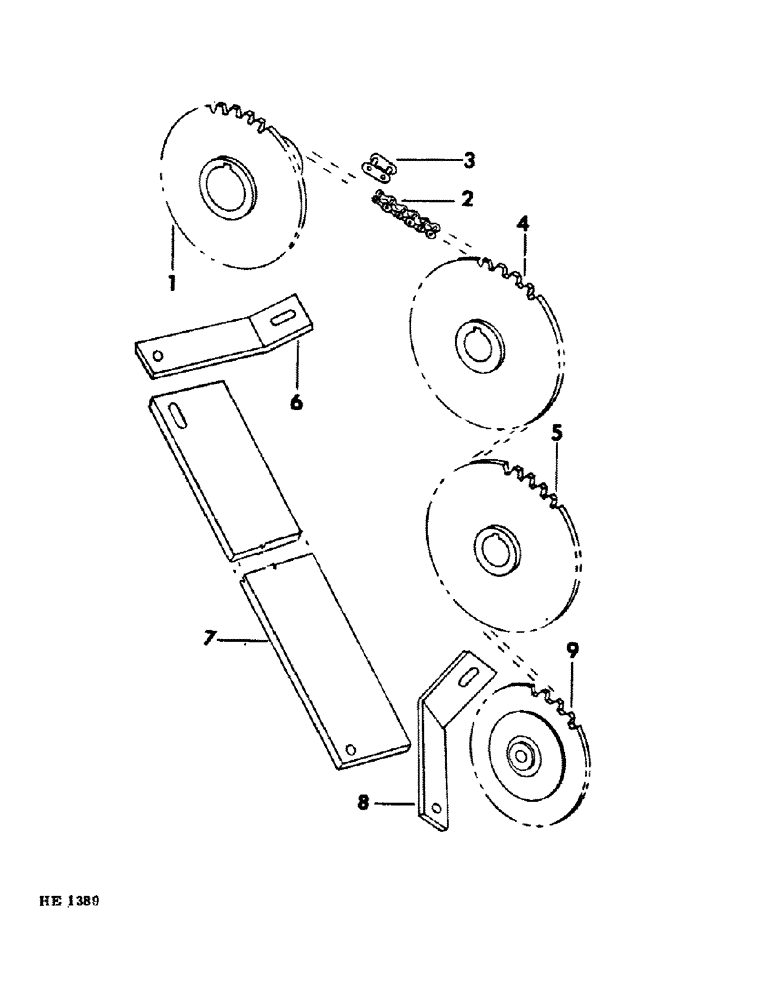

Запчасти Case IH 1290 (37) - CONDITIONER DRIVE

1

824122C1

SPROCKET ASSY.

SPROCKET, gearbox output

1шт.

113879

KEY

5/16 x 1-1/4" Woodruff

1шт.

21226R1

WASHER

1-9/32 x 2 x 11 ga

1шт.

631415

FLEXIBLE HOSE

NUT, 1-1/4" hex jam

1шт.

2

824140C1

CHAIN, 3/4" pitch standard composed of: (91) link (NSS), (1) connecting link 574532R91

1шт.

3

574532R91

CLIP, SPRING

LINK, chain connecting

1шт.

4

599488R1

SPROCKET ASSY.

SPROCKET, 26T upper rubber roll (for service parts refer to "Upper Rubber Conditioner Roll")

1шт.

Q3947

KEY,Gib, 3/8" Sq x 1 1/2"

3/8 x 1-1/2" gib-hd

1шт.

5

599488R1

SPROCKET ASSY.

SPROCKET, 26T lower steel roll (for service parts refer to "Lower Steel Conditioner Roll")

1шт.

Q3947

KEY,Gib, 3/8" Sq x 1 1/2"

3/8 x 1-1/2" gib-hd

1шт.

6

824493C1

SUPPORT, chain guide upper

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

7

824492C1

BOARD, chain guide

1шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8 x 1-1/2" crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

8

824494C1

SUPPORT, chain guide lower

1шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2 x 1-1/2" crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

9

607345R11

SPROCKET ASSY.

SPROCKET, 20T drive chain tightener

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga

2шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 ga

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.
