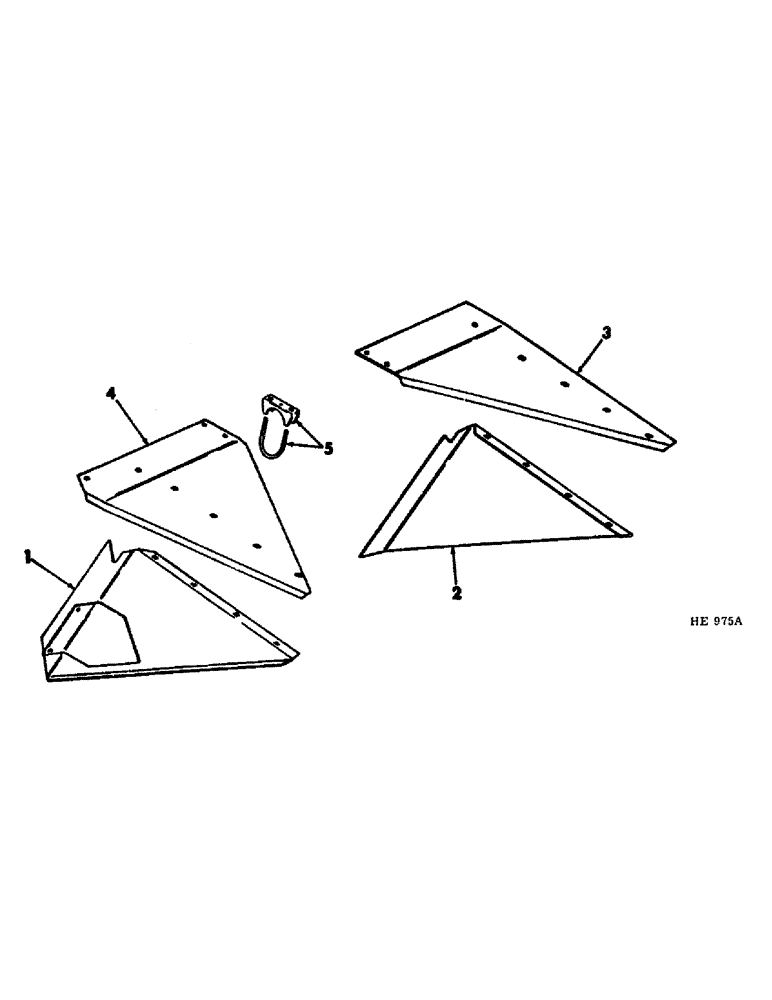

Запчасти Case IH 1290 (35) - DIVIDER EXTENSION ATTACHMENT, FOR USE IN SUDEX

1

599509R2

DIVIDER, extension LH

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

599510R2

DIVIDER, extension RH

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

599514R2

DIVIDER, extension top LH

1шт.

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

3/8 x 1/2"

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4" crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

4

599515R2

DIVIDER, extension top RH

1шт.

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

3/8 x 1-2"

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 x 5/8"

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4" crg

4шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

5

119442H1

CLAMP

shield composed of: (1) saddle (NSS), (1) u-bolt (NSS), (2) nut 120368

1шт.
