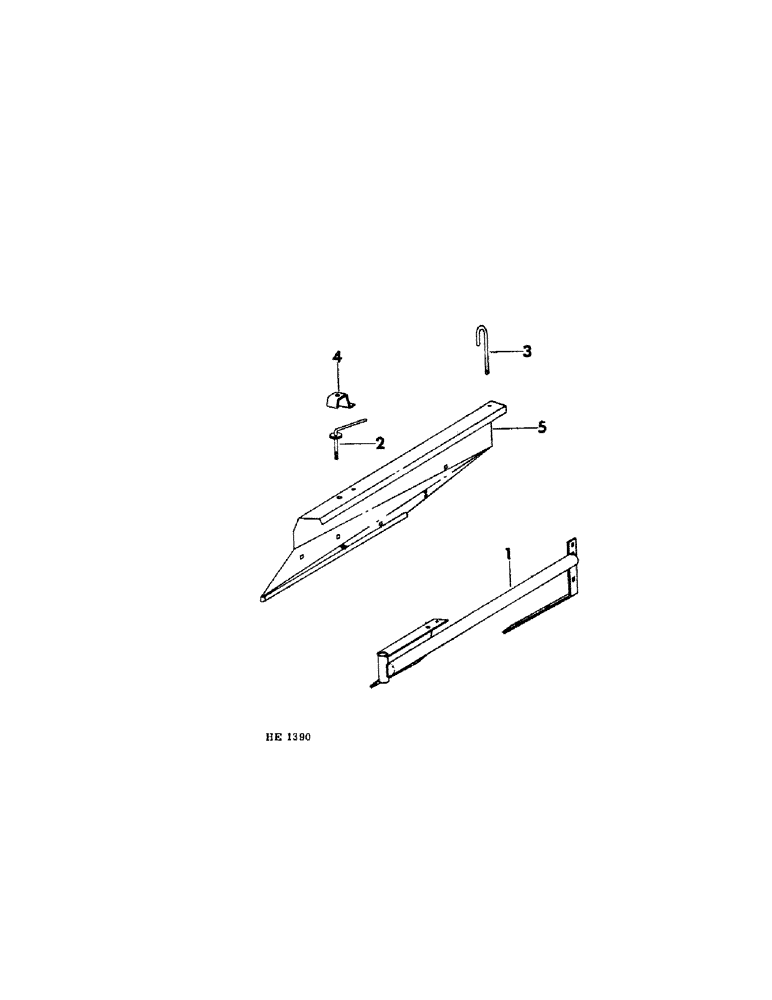

Запчасти Case IH 1290 (34) - WINDROW FORMING SHIELDS

1

824442C1

SUPPORT, deflector shield LH shown

1шт.

1

824443C1

SUPPORT, deflector shield RH

1шт.

19873R1

HARDWARE,Hex, 3/4"-10 x 5 1/2", G5

BOLT, 3/4 x 5-1/2"

2шт.

280954

NUT,3/4"-10, G5

2шт.

2

824364C1

BOLT, shield adjusting lock

2шт.

3

824423C1

ROD, shield lock

1шт.

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

C-PIN, Q.A.

1шт.

4

824477C1

SUPPORT, swath shield lock

2шт.

17479R1

BOLT, 3/8 x 1-1/2" dld

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

2шт.

5

824438C1

SHIELD, deflector LH shown

1шт.

5

824439C1

SHIELD, deflector RH

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4" crg

4шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

8шт.

120377

NUT,3/8" - 16, Gr 5

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.
