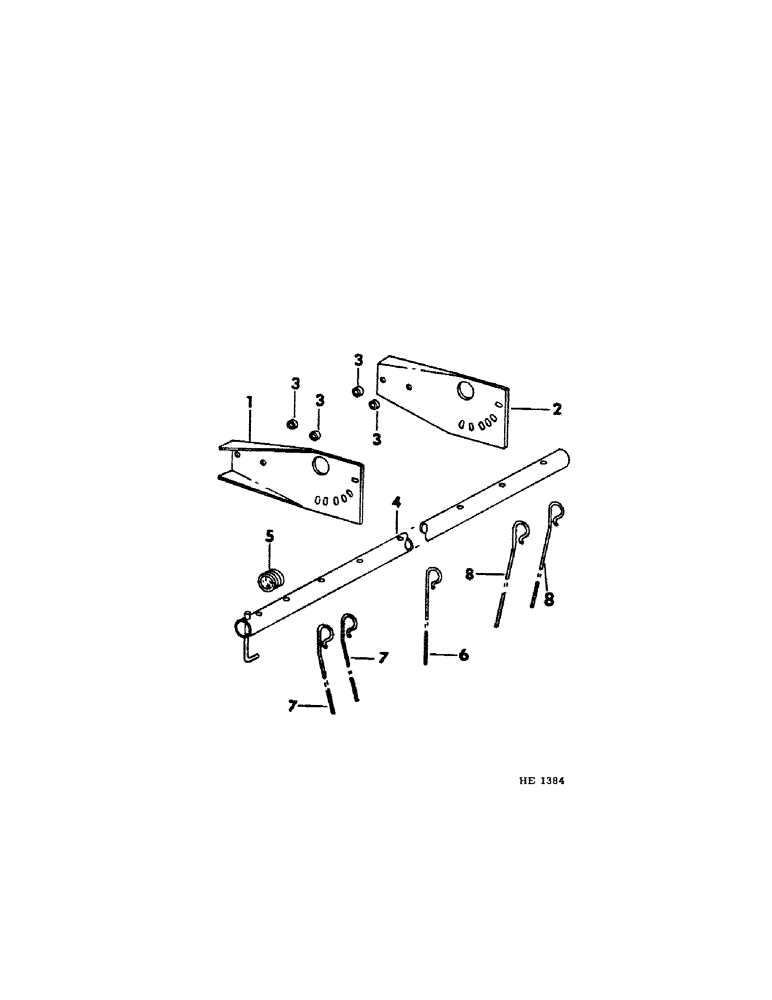

Запчасти Case IH 1290 (34[A]) - SWATH AERATOR ATTACHMENT

1

824205C1

BRACKET, aerator mounting LH

1шт.

2

824206C1

BRACKET, aerator mounting RH

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

3

353232R1

SPACER,3/8" Pipe x .344

mounting bracket

4шт.

4

824209C1

TUBE, tine pivot

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

5

653125R1

SPRING, pivot tube compression

1шт.

591107R1

COTTER PIN

C-PIN, Q.A.

1шт.

6

545176R1

ROD

TINE, aerator inner

5шт.

7

545177R1

ROD

TINE, aerator outer LH

2шт.

8

545178R1

ROD

TINE, aerator outer RH

2шт.
