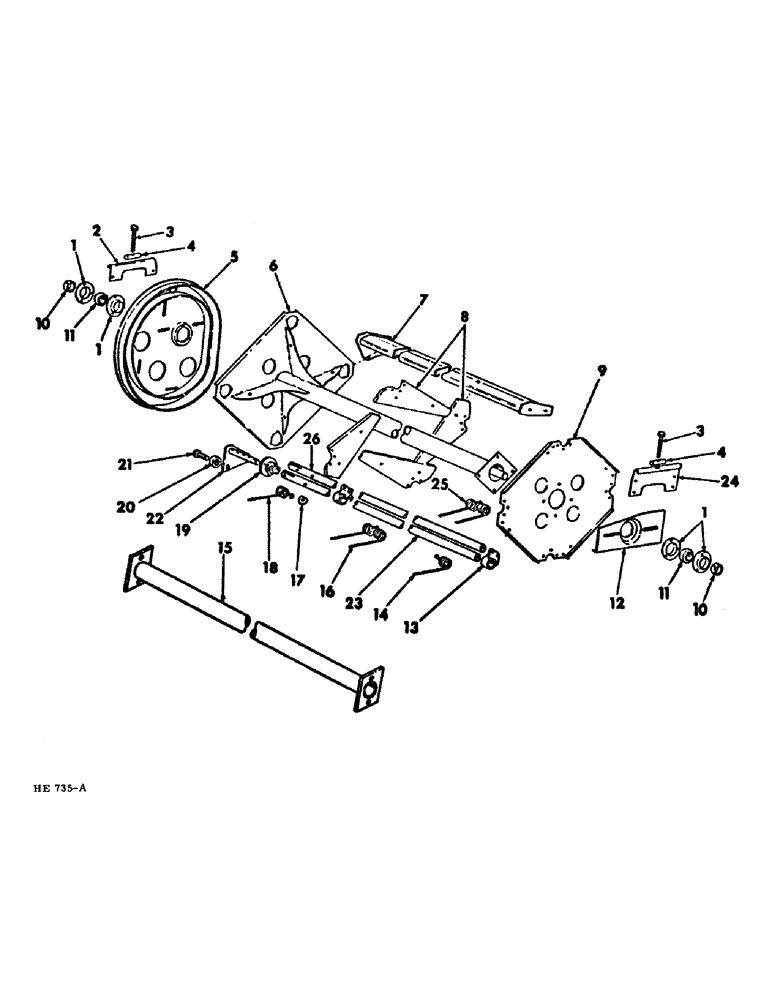

Запчасти Case IH 1290 (32) - PICK-UP REEL, LOW-PROFILE

1

617863R1

FLANGED BEARING

RETAINER, reel tube bearing

4шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4" crg

6шт.

595848R1

NUT

LK-NUT, 3/8"

6шт.

2

598037R1

BRACKET, adjusting RH

1шт.

3

824361C1

BOLT, 7/16 x 7" reel adjusting

2шт.

21763R1

WASHER

15/32 x 3/4 x 11 ga

2шт.

4

596013R1

BAR, reel adjusting

2шт.

5

599401R1

TRACK, reel cam roller

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

5шт.

593862R1

WASHER, 15/32 x 1-1/4 x 11 ga

3шт.

NLS

NO LONGER SERVICED

NUT, 7/16"

5шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

5шт.

6

599540R2

TUBE, pick-up reel

1шт.

7

599546R1

BAT

reel

4шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4" crg

8шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 x 5/8"

16шт.

595848R1

NUT

LK-NUT, 3/8" (1 per bolt)

1шт.

8

599407R1

SUPPORT

reel intermediate

8шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 x 5/8"

8шт.

595848R1

NUT

LK-NUT, 3/8

8шт.

9

599408R1

SUPPORT, reel end LH

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4" crg

4шт.

595848R1

NUT

LK-NUT, 3/8

4шт.

10

557113R11

COLLAR

W/SCREW, reel tube bearing locking

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" hdls cup-pt set

2шт.

11

256557R91

BEARING

reel tube

2шт.

12

595849R2

BRACKET, reel mounting LH

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

2шт.

271501

SOCKET

NUT, 7/16"

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

13

595861R1

BEARING HOUSING,1.36" ID x 2" OD x 1.25"

pick-up finger tube

12шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

LUB-FITTING, 1/4"

12шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

36шт.

595848R1

NUT

LK-NUT, 3/8"

36шт.

14

599422R1

FINGER

reel pick-up LH

2шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

5/16 x 2"

2шт.

596934R1

NUT

5/16"

2шт.

15

824053C1

BAR

platform lean

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

4шт.

477589R1

WASHER

13/32 x 1-1/2 x 11 ga

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

16

595873R1

FINGER

reel pick-up

84шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 2"

60шт.

20248R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8

3/8 x 2-1/4" type 8

4шт.

596934R1

NUT

LK-NUT, 5/16"

60шт.

595848R1

NUT

LK-NUT, 3/8"

4шт.

17

595876R1

COVER

RETAINER, pick-up finger

72шт.

18

599423R1

FINGER

reel pick-up RH

2шт.

20248R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8

3/8 x 2-1/4" type 8

2шт.

20803R1

WASHER

13/32 x 1 x 11 ga

2шт.

595848R1

NUT

LK-NUT, 3/8"

2шт.

19

599415R91

BALL BEARING,1.069" ID x 4.4375" OD x 1.25"

reel cam follower arm

4шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

12шт.

20803R1

WASHER

13/32 x 1 x 11 ga

12шт.

595848R1

NUT

LK-NUT, 3/8"

12шт.

137303

COTTER PIN,1/4" x 2 1/4"

PIN, SPLIT (COTTER), 1/4" x 2 1/4"

4шт.

20

667925R91

ROLLER BEARING,0.628" ID x 2" OD x 15 mm

reel cam follower

4шт.

21

599420R1

BOLT,Hex, 5/8" - 11 x 1.50", Gr 2

cam follower bearing

4шт.

21796R1

WASHER

21/32 x 1 x 16 ga

4шт.

22

599416R2

ARM ASSY.

ARM, reel cam follower

4шт.

23

599553R1

TUBE, reel pick-up finger #1 (drill hole 7/16" from slotted end)

2шт.

23458R1

BOLT,Hex, 3/8" - 16 x 2", Gr 8

2шт.

20803R1

WASHER

13/32 x 1 x 11 ga

2шт.

595848R1

NUT

LK-NUT, 3/8"

2шт.

24

596012R1

PLATE, adjusting LH

1шт.

25

599421R1

FINGER, reel pick-up short LH

4шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

5/16 x 2"

4шт.

596934R1

NUT

LK-NUT, 5/16"

4шт.

26

599556R1

TUBE

reel pick-up finger #2 (drilled hole 2" from slotted end)

2шт.
