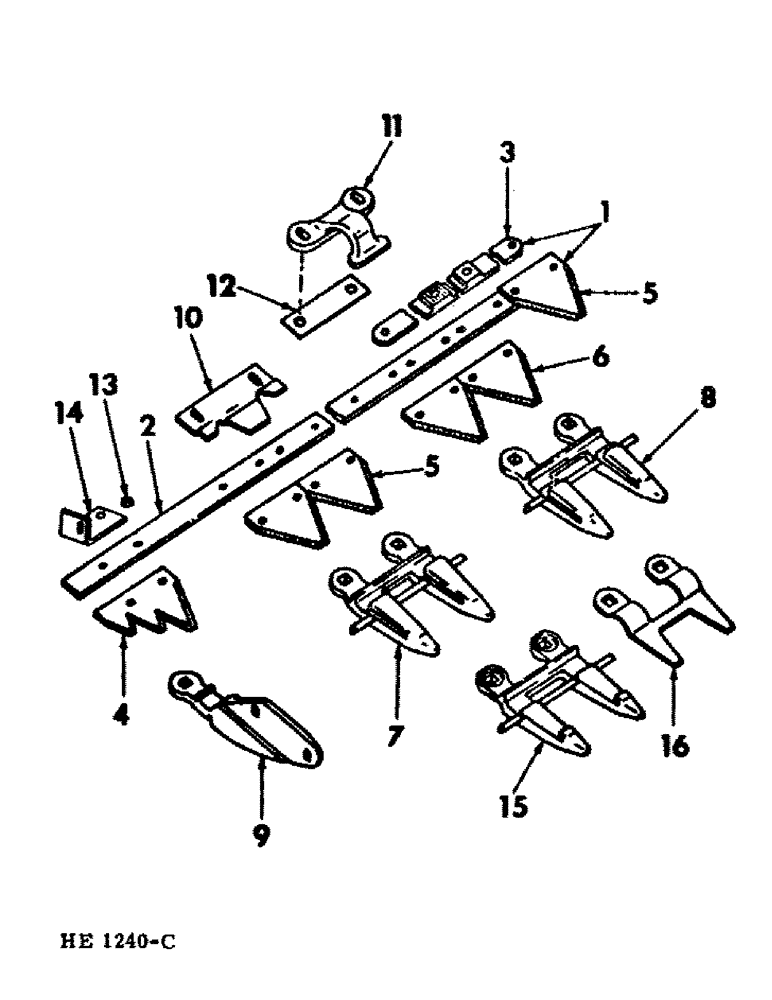

Запчасти Case IH 1290 (31) - KNIFE & GUARDS

1

824427C91

KNIFE

ASSY, 12 ft. w/underserrated cr-pltd sections composed of (1) bar (NSS), (1) end 823710R1, (1) section 467456R1, (42) section 457607R1, (6) section 823711C1, (2) rivet 104086, (2) rivet 12712R1, (84) rivet 21294R1, (10) rivet 104085

1шт.

2

BAR, knife back (NSS) (for service order 1-824427C91, knife assy)

1шт.

3

823710C1

HEAD (CYLINDER)

END, knife joint

1шт.

12712R1

RIVET

no. 5-1/2 x 15/16" small-oval-hd

2шт.

87013867

RIVET,But Hd, 1/4" x 1"

1/4 x 1" b-hd small solid

10шт.

104086

RIVET,But Hd, 1/4" x 1 1/8"

1/4 x 1-1/8" b-hd small solid

2шт.

4

467456R1

KNIFE SECTION

SECTION, cr-pltd underserrated triple RH

1шт.

21294R1

RIVET,Oval Hd, .22" x 9/16"

no. 5 x 9/16" cd-pltd small oval-hd rivet

2шт.

5

457607R1

KNIFE SECTION

SECTION, cr-pltd underserrated

42шт.

21294R1

RIVET,Oval Hd, .22" x 9/16"

no. 5 x 9/16" cd-pltd small oval-hd

82шт.

12712R1

RIVET

no. 5-1/2 x 15/16" small oval-hd

2шт.

6

823711C1

NO LONGER SERVICED

SECTION, cr-pltd underserrated

6шт.

87013867

RIVET,But Hd, 1/4" x 1"

1/4 x 1" b-hd small solid

10шт.

12712R1

RIVET

no. 5-1/2 x 15-1/16" small oval-hd

1шт.

104086

RIVET,But Hd, 1/4" x 1 1/8"

1/4 x 1-1/8" b-hd small solid

2шт.

7

613838R1

GUARD

double

20шт.

592724R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 9/16", Gr 5

BOLT, 7/16 x 1-9/16 no. 3 plow

26шт.

592722R1

BOLT,7/16"-14 x 1 5/16", G5

7/16 x 1-5/16 no. 3 plow

17шт.

NLS

NO LONGER SERVICED

NUT, 7/16"

43шт.

8

613839R1

GUARD

double left end

4шт.

592723R1

BOLT (SPREADER),#3, 7/16" - 14 x 1 21/32"

BOLT, 7/16 x 1-21/32" no. 3 plow

3шт.

18698R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2", Gr 2

BOLT, 7/16 x 2" type 1 crg

1шт.

592724R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 9/16", Gr 5

BOLT, 7/16 x 1-9/16 no. 3 plow

4шт.

271501

SOCKET

NUT, 7/16"

1шт.

9

540603R2

FINGER

GUARD, single right end

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4" crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

10

613842R2

GUIDE

HOLDER, knife

11шт.

11

595648R1

GUIDE

HOLDER, knife high arch

2шт.

592723R1

BOLT (SPREADER),#3, 7/16" - 14 x 1 21/32"

BOLT, 7/16 x 1-21/32 no. 3 plow

3шт.

18698R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2", Gr 2

BOLT, 7/16 x 2" type 1 crg

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16"

4шт.

12

595213R1

STRIP

SHIM, knife high arch holder

2шт.

13

2551F

WASHER

SPACER, end guard support RH

2шт.

14

824258C1

SUPPORT

end guard RH

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4"

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

15

823025C1

GUARD

tie (for use in stony ground conditions)

20шт.

168930C1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

BOLT, 7/16 x 1-1/2"

40шт.

271501

SOCKET

NUT, 7/16"

40шт.

16

823026C1

PLATE

guard tie (for used in stony ground conditions)

20шт.
