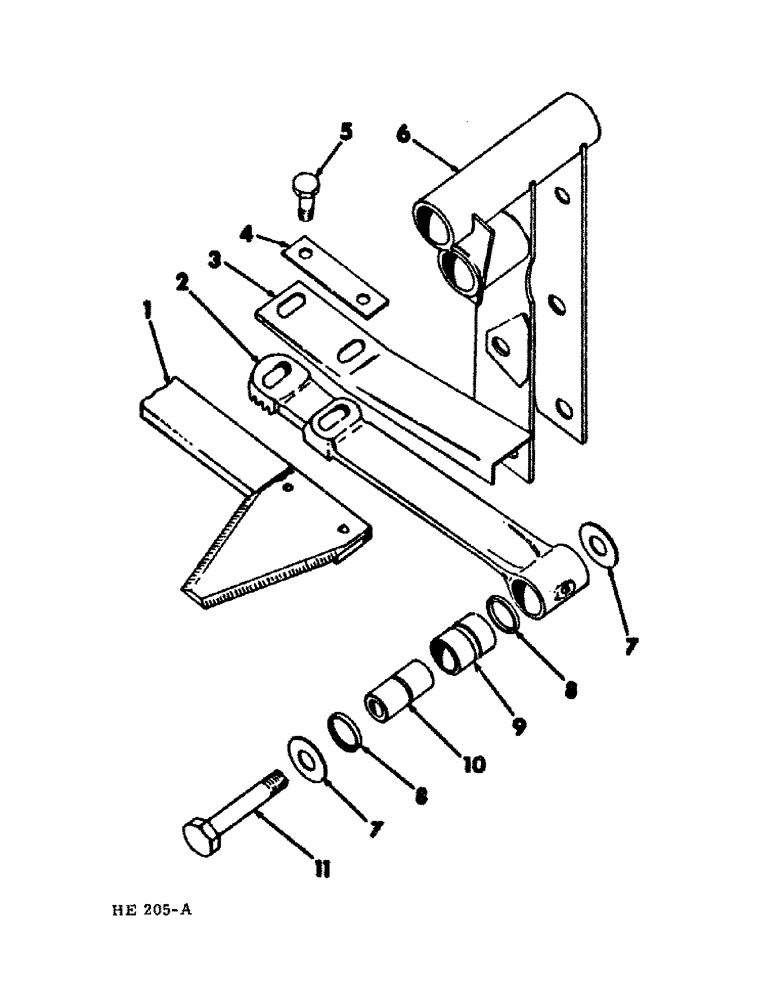

Запчасти Case IH 1290 (30) - KNIFE DRIVE HEAD

1

KNIFE, cutting (for service parts refer to "Knife and Guards")

1шт.

2

595751R11

JOINT

knife drive knife (includes 1-595752R1, bushing)

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

114-719

BOLT,Hex, 3/4" - 16 x 3-1/2", Gr 5

3/4-NF x 3-1/2"

1шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga

1шт.

691199R1

NUT

LK-NUT, 3/4"-NF

1шт.

3

598027R2

SHROUD

knife drive joint

1шт.

20171R1

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 8

1/2 x 1-1/8" type 8

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

4

595755R1

LOCKING PLATE

knife bolt lock

1шт.

5

20171R1

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 8

1/2 x 1-1/8" type 8 knife drive joint to knife

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

6

596271R91

ARM

knife drive (for service parts refer to "Knife Drive Arm")

1шт.

7

595746R1

WASHER

knife drive knife joint

2шт.

8

606749R91

OIL SEAL

knife joint oil

2шт.

9

595752R1

BUSHING

joint casting

1шт.

10

595753R1

BUSHING

knife joint pivot

1шт.

11

271799

KIT

3/4"-NF x 3-1/2" knife joint

1шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga

1шт.

691199R1

NUT

LK-NUT, 3/4"-NF

1шт.
