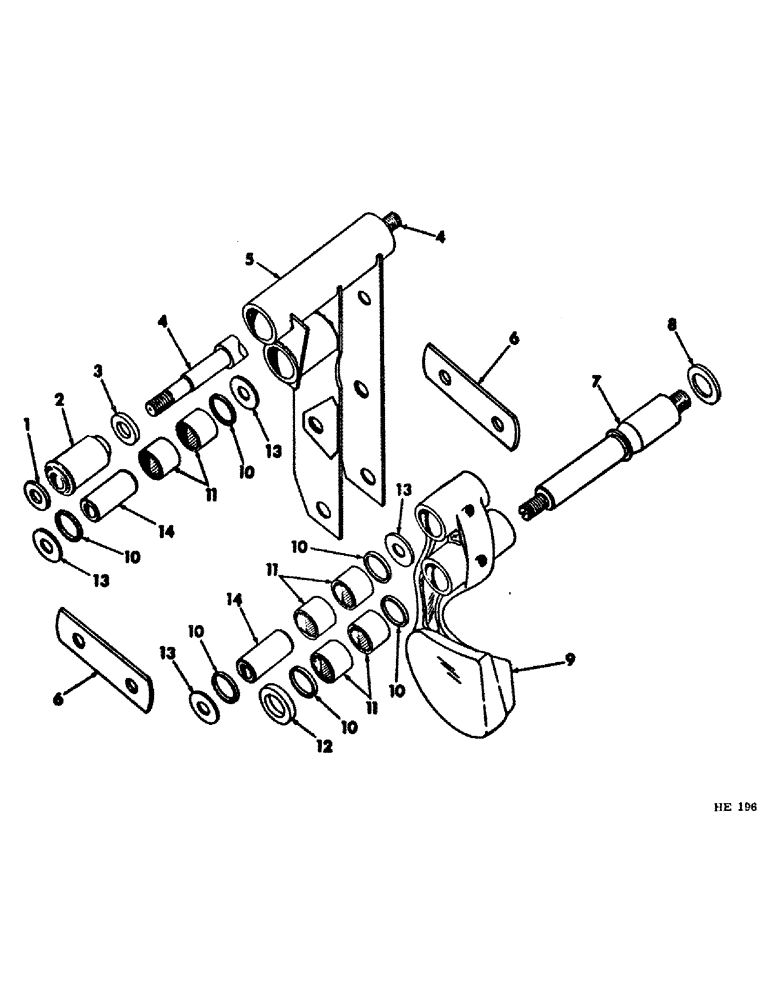

Запчасти Case IH 1290 (29) - KNIFE DRIVE ARM

1

595741R1

WASHER

pivot stud outer (opt w/596270R1, washer)

1шт.

1

596270R1

WASHER

pivot stud outer (opt w/595741R1, washer)

1шт.

2

236522R91

BUSHING

arm pivot

2шт.

3

595740R1

WASHER

pivot stud inner

2шт.

4

595739R1

SHAFT

STUD, arm pivot

1шт.

595742R1

NUT

LK-NUT, 3/4"-NF

2шт.

5

596271R91

ARM

knife drive (includes 2-236522R91, bushing 2-595740R1, washer and 1-595739R1, stud)

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

6

595745R1

STRIP

knife drive connection

2шт.

114-720

BOLT,Hex, 3/4" - 16 x 4", Gr 5

3/4"-NF x 4" , Fine threads

2шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga

2шт.

595746R1

WASHER

25/32 x 2 x 16 ga

1шт.

691199R1

NUT

LK-NUT, 3/4" NF

2шт.

7

595748R1

SHAFT

STUD, knife drive balancer pivot

1шт.

595742R1

NUT

LK-NUT, 3/4"-NF

2шт.

8

595750R1

WASHER

balancer pivot stud

1шт.

9

595747R2

BALANCER, knife drive

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

LUB-FITTING, 1/8" - 45 deg. elbow

1шт.

10

606749R91

OIL SEAL

balancer oil

6шт.

11

102613R91

NEEDLE BEARING

balancer needle

6шт.

12

595749R1

BUSHING

balancer pivot stud front

1шт.

13

595746R1

WASHER

knife drive connection strip

1шт.

14

595743R1

BUSHING

knife drive arm and balancer connection

2шт.
