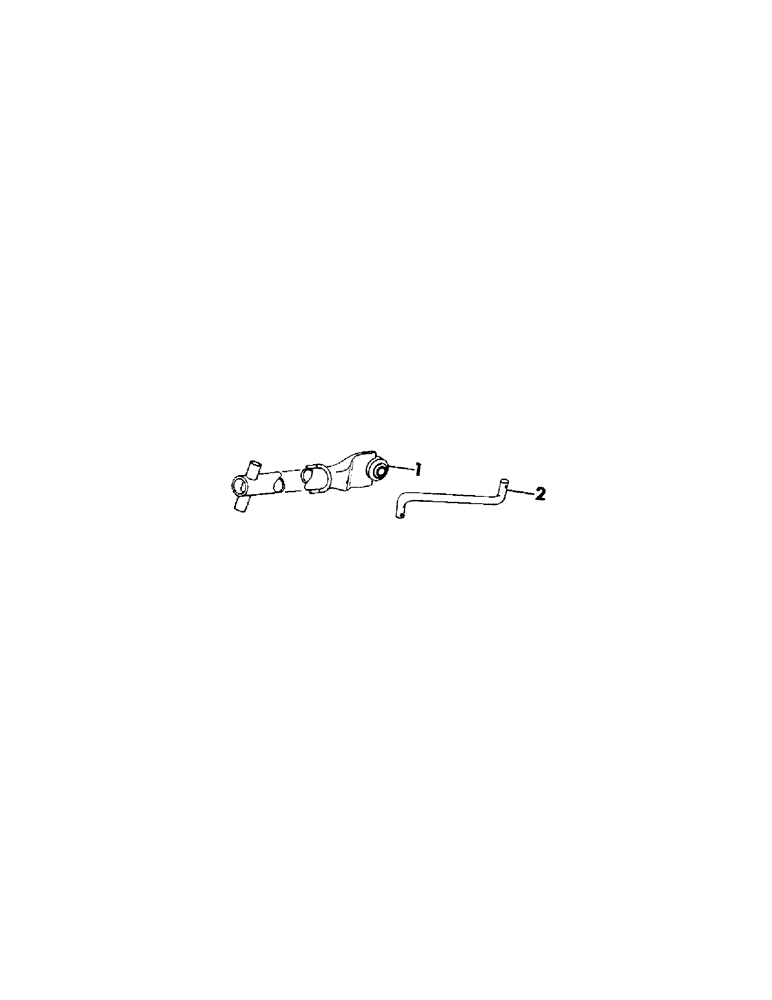

Запчасти Case IH 1290 (03[A]) - TRANSPORT HITCH, PRODUCT GRAPHICS

1

824256C1

BEAM ASSY, transport hitch

1шт.

19827R1

BOLT,Hex, 5/8" - 11 x 8", Gr 5

5/8 x 8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

2шт.

2

824328C1

ROD, transport lock

1шт.

471194R1

AXLE PIN

C-PIN, Q.A.

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

2752312R1

PRODUCT GRAPHIC "International"

2шт.

2752314R1

DECAL

PRODUCT GRAPHIC "International"

1шт.

2752019R1

DECAL

PRODUCT GRAPHIC "I.H."

2шт.

824483C91

1шт.

PACKAGE, product graphic service composed of (2) International 2752312R1, (1) International 2752314R1, (2) I.H. 2752019R1, 1 made in Canada (NSS), (3) be careful (NSS), (1) 1 PTO operating speeds (NSS), (7) lubrication arrow (NSS), (1) model designation (NSS), (1) oil (NSS), (1) lube and instructions

1шт.

407283R1

KIT, SMV emblem product graphic

1шт.
