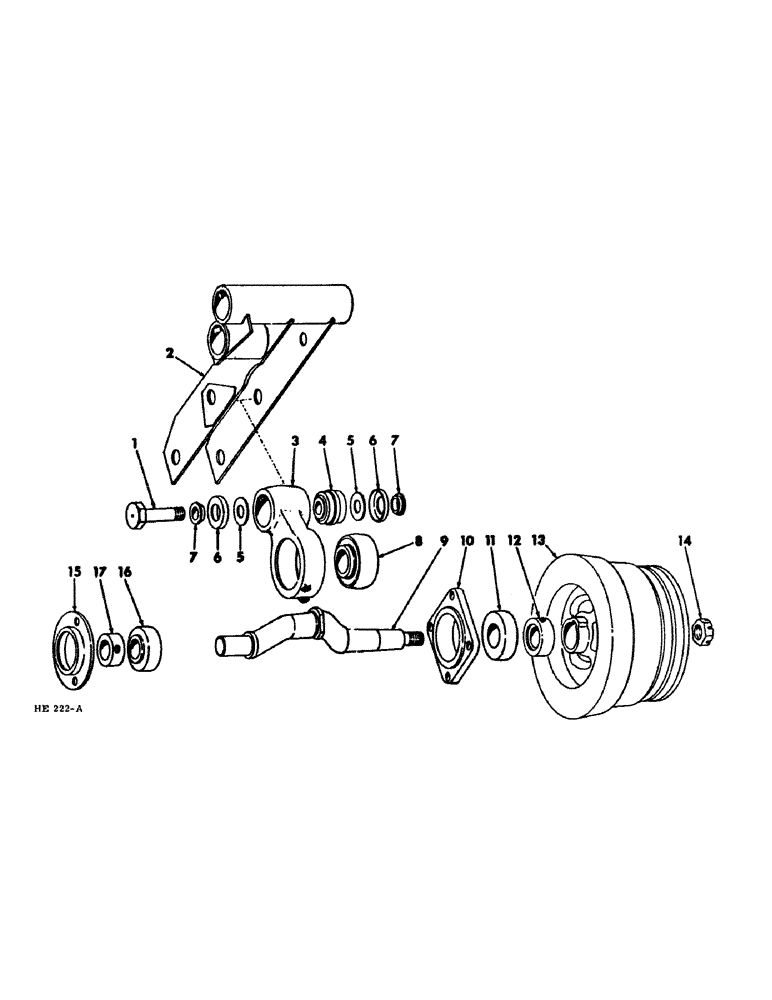

Запчасти Case IH 1290 (28) - KNIFE DRIVE FLYWHEEL CRANK
№
Артикул
Название
Примечание
Количество
1
595732R1
BOLT,Spcl, Hex, 3/4" - 16 x 3 1/2"
pitman connecting
1шт.
691199R1
NUT
LK-NUT, 3/4"-NF
1шт.
2
596271R91
ARM
knife drive (for service parts refer to "Knife Drive")
1шт.
3
599608R91
PITMAN
ASSY, knife drive composed of: (2) washer 595729R1, (2) fitting 109461, (2) bushing 595730R1, (2) cup 595731R1, (1) Pitman (NSS), (1) bearing (NSS), (1) bearing (NSS)
1шт.
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, 1/8"-27 x .66 lg
2шт.
4
BEARING, pitman connecting (NSS) (for service order 1-599608R91, Pitman)
1шт.
5
595729R1
WASHER
pitman connecting bearing
2шт.
6
595731R1
WASHER
CUP, pitman connecting bearing closure
2шт.
7
595730R1
BUSHING
pitman connecting bearing
2шт.
8
BEARING, pitman crankshaft (NSS) (for service order 1-599608R91, Pitman)
1шт.
9
595723R1
SHAFT
knife drive flywheel crank
1шт.
10
595725R1
HOUSING
crankshaft rear bearing
1шт.
180124
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
3/8 x 1-1/4"
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
11
565672R91
BALL BEARING,1.25" ID x 72 mm OD x 1.53125"
crankshaft rear
1шт.
12
455104R11
COLLAR
W/SCREW, crankshaft rear bearing locking
1шт.
13
824383C1
PULLEY, knife drive flywheel
1шт.
117977
WOODRUFF KEY
KEY, 5/16 x 1" Woodruff
1шт.
14
427640
SLOTTED NUT,3/4"-16, G5
NUT, 3/4"-NF std flywheel pulley locking
1шт.
467750R1
WASHER
25/32 x 1-1/2 x 11 ga
1шт.
103398
COTTER PIN,5/32" x 1 1/2"
Pin, Split (Cotter), 5/32" x 1 1/2"
1шт.
15
595724R1
FLANGED BEARING
RETAINER, crankshaft front bearing
1шт.
495967R1
CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd
BOLT, 3/8 x 1" crg
3шт.
120377
NUT,3/8" - 16, Gr 5
3шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
3шт.
16
455960R91
BALL BEARING
BEARING, crankshaft front
1шт.
17
557115R11
COLLAR
COLLAR W/SCREW, crankshaft front bearing locking
1шт.
115321
SET SCREW,Hex Skt, 5/16"-18 x 5/16"
SCREW, 5/16 x 5/16" hdls cup-pt set
1шт.
Выбрано товаров: 29
