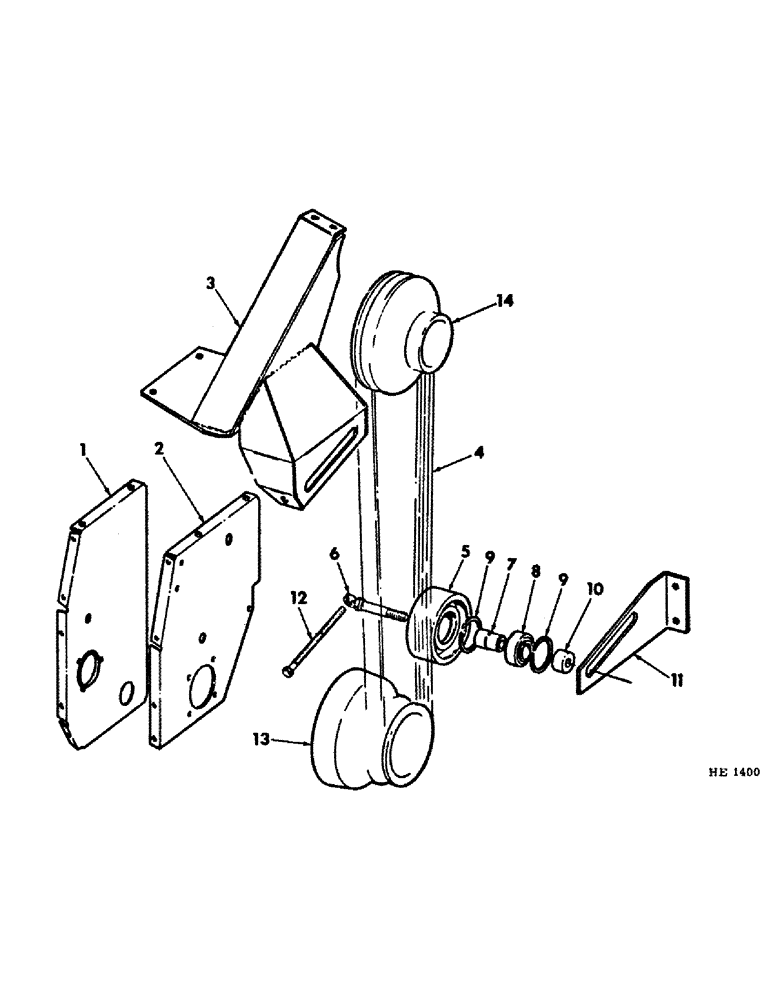

Запчасти Case IH 1290 (27) - KNIFE DRIVE HOUSING AND DRIVE

1

595762R11

SUPPORT

knife drive housing front

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8"

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4" crg

3шт.

619856R1

WASHER

13/32 x 1 x 16 ga

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

2

595765R21

SUPPORT

knife drive housing rear

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4" crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

824451C1

BRACKET, knife drive pulley

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

4

824474C1

BELT,66.20" L

Knife Drive 66.20" L

1шт.

5

824444C1

PULLEY, knife drive belt tightener

1шт.

6

824461C1

BOLT, tightener pulley adjusting

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

7

592062R1

BUSHING

tightener pulley

1шт.

8

584148R91

BEARING ASSY,35mm ID x 72mm OD x 25mm W

BEARING, tightener pulley (opt w/608697R91, bearing)

1шт.

8

608697R91

BALL BEARING,1.378" ID x 2.8346" OD x 0.9892"

tightener pulley (opt w/584148R91, bearing)

1шт.

9

512889R1

RING

bearing retaining

2шт.

10

594176R1

BUSHING, pulley bearing spacer

1шт.

11

824498C1

SUPPORT, tightener pulley

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

12

824361C1

BOLT, 7/16 x 7" pull

1шт.

271501

SOCKET

NUT, 7/16"

1шт.

13

824383C1

PULLEY, knife drive flywheel (for service parts refer to "Knife Drive Flywheel Crank")

1шт.

14

824382C1

PULLEY, knife drive (for service parts refer to "Gear Box Drive and Clutch")

1шт.
