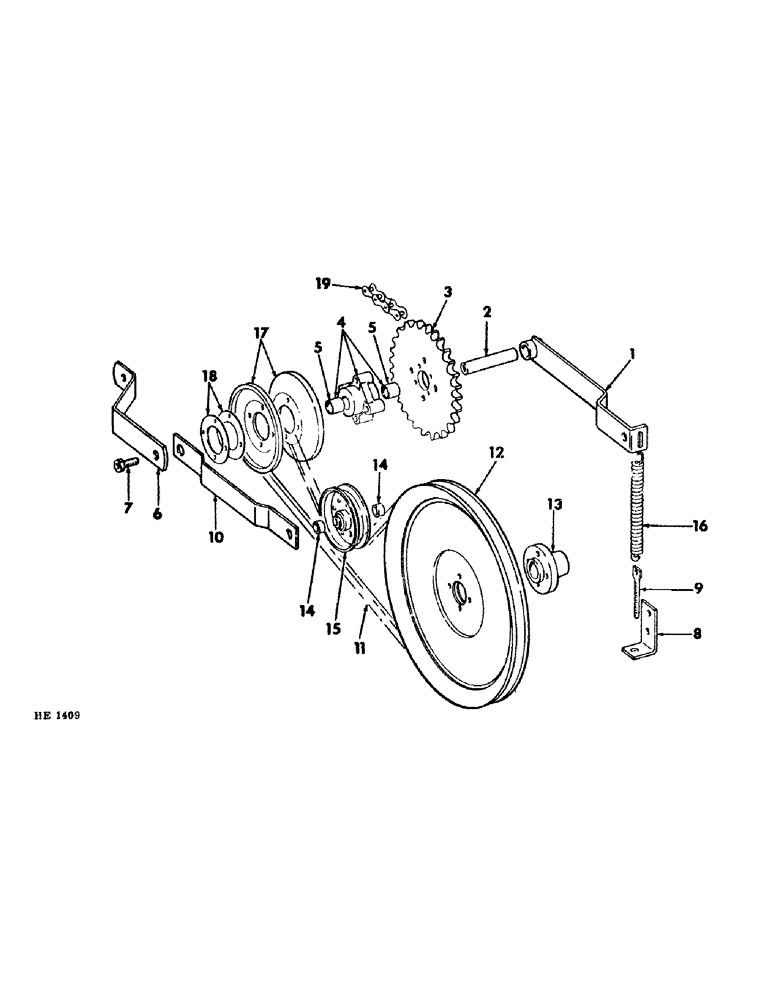

Запчасти Case IH 1290 (26) - PLATFORM REEL DRIVE

1

824046C1

ARM, reel drive idler pulley

1шт.

2

824047C1

SHAFT

reel drive

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

21041R1

WASHER

17/32 x 2 x 16 ga

2шт.

609836R1

WASHER

1-1/32 x 1-3/4 x 16 ga

1шт.

614451R1

WASHER

1-1/32 x 1-3/4 x 11 ga

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

3

595781R2

SPROCKET ASSY.

SPROCKET, 55T reel driven

1шт.

21471R1

WASHER

21/32 x 1 x 11 ga (as req'd)

3шт.

21796R1

WASHER

21/32 x 1 x 16 ga (as req'd)

2шт.

22258R1

WASHER

21/32 x 1 x 22 ga (as req'd)

2шт.

4

824059C1

HUB W/BUSHINGS, reel drive and front auger drive sprocket

1шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8 x 2-3/4"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

5

609775R1

BUSHING

hub

2шт.

6

824050C1

SUPPORT, reel drive

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

7

592084R2

BOLT

lubrication shaft mounting

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

8

824403C1

ANGLE, idler spring anchor

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

9

488217R2

BOLT,7/16" - 14 x 8"

reel drive adjusting spring

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16"

2шт.

10

824401C1

SUPPORT, reel drive outer

1шт.

11

599428R1

V-BELT,0.88" W

Reel drive 0.88" W

1шт.

12

597985R2

PULLEY

reel driven

1шт.

13

597986R1

HUB

reel driven pulley

1шт.

240

KEY,Gib, 3/8" Sq x 2 1/2"

3/8 x 2-1/2" gib-hd

1шт.

454869

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

5/16 x 3/4" type 8

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

14

607346R1

SPACER, reel drive idler pulley

2шт.

15

564745R91

PULLEY

reel drive idler (opt w/610407R91 or 597981R91, pulley)

1шт.

15

610407R91

BEARING

PULLEY, reel drive idler (opt w/564745R91 or 597981R91, pulley)

1шт.

15

597981R91

PULLEY

reel drive idler (opt w/610407R91 or 564745R91, pulley)

1шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

5/8 x 3-1/2"

1шт.

21471R1

WASHER

21/32 x 1 x 11 ga

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

16

23488S

SPRING

idler pulley arm

1шт.

17

609727R3

PULLEY

reel drive half

2шт.

18

609776R1

RETAINER, reel drive pulley spacer

5шт.

19

CHAIN, reel drive and front auger (for service parts refer to "Platform Front Auger Drive")

1шт.
