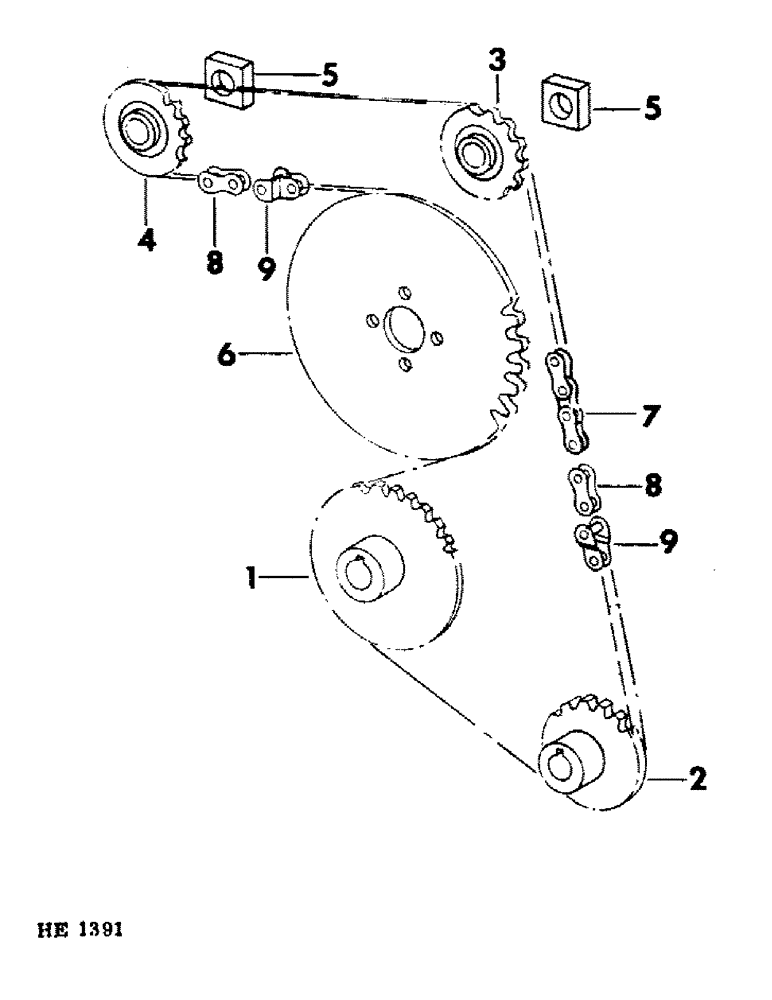

Запчасти Case IH 1290 (25) - PLATFORM FRONT AUGER DRIVE

1

824022C1

SPROCKET ASSY.

SPROCKET, rear auger drive

1шт.

Q1497

KEY,Gib, 3/8" Sq x 2"

3/8 x 2" gib-hd

1шт.

2

824020C1

SPROCKET, front auger drive

1шт.

Q3932

KEY,Gib, 5/16" Sq x 2"

5/16 x 2" gib-hd

1шт.

3

594706R91

SPROCKET ASSY.,15T

SPROCKET, 15T auger chain tightener front

1шт.

18449R1

BOLT,Short NK, 5/8"-11 x 3", G2

5/8 x 3" type 1 crg

1шт.

21471R1

WASHER

21/32 x 1 x 11 ga (as req'd)

2шт.

21796R1

WASHER

21/32 x 1 x 16 ga (as req'd)

2шт.

22258R1

WASHER

21/32 x 1 x 22 ga (as req'd)

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

4

610538R91

SPROCKET ASSY.

SPROCKET, 16T auger chain idler rear

1шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

5/8 x 3"

1шт.

21471R1

WASHER

21/32 x 1 x 11 ga (as req'd)

2шт.

21796R1

WASHER

21/32 x 1 x 16 ga (as req'd)

2шт.

22258R1

WASHER

21/32 x 1 x 22 ga (as req'd)

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

5

824416C1

BAR, tightener and idler sprocket spacer

2шт.

6

595781R2

SPROCKET ASSY.

SPROCKET, 55T reel drive (for service parts refer to "Platform reel drive")

1шт.

7

CHAIN ASSY, front auger drive RH (5/8" pitch standard) (for service order 1-1791-D 10 ft chain, reduce to 129 links and add 1-1310-D connecting link and add 1-1310-D connecting link and 2-1315-D offset link)

1шт.

8

1310D

LINK

chain connecting

1шт.

9

1315D

LINK

offset

2шт.
