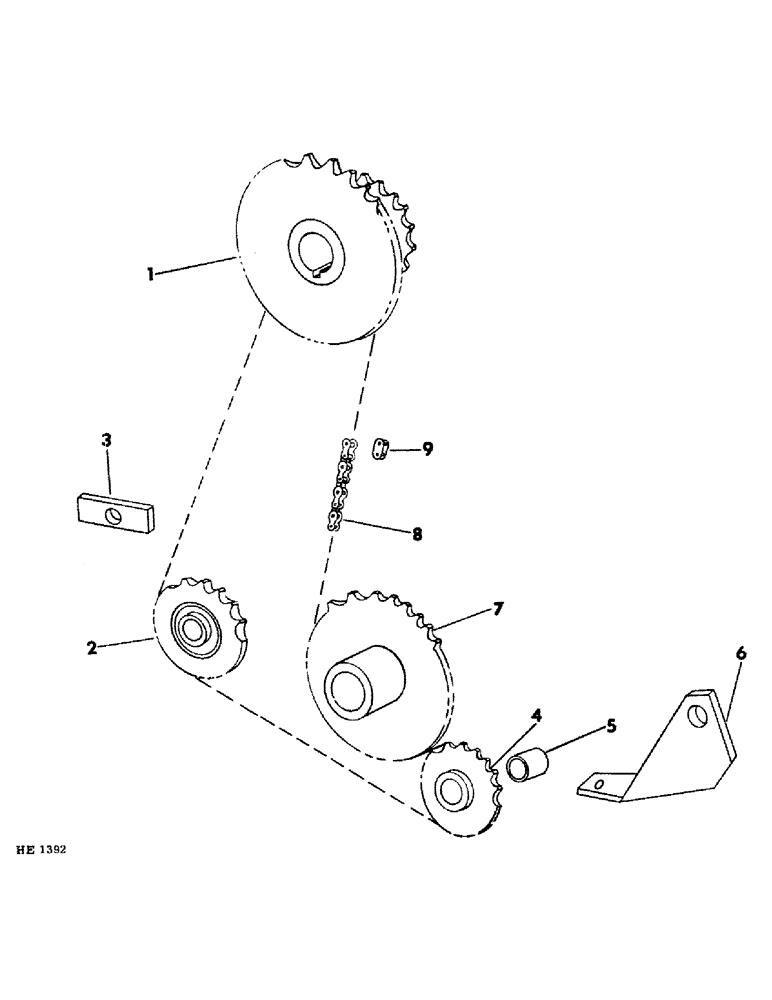

Запчасти Case IH 1290 (23) - PLATFORM REAR AUGER DRIVE

1

824122C1

SPROCKET ASSY.

SPROCKET, gearbox output

1шт.

113879

KEY

5/16 x 1-1/4" Woodruff

1шт.

21226R1

WASHER

19/32 x 2 x 11 ga

1шт.

219792

COLLAR

NUT, 1-1/4" hex jam

1шт.

2

594706R91

SPROCKET ASSY.,15T

SPROCKET, 15T tightener front

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2"

1шт.

21471R1

WASHER

21/32 x 1 x 11 ga

3шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

3

599892R1

BAR, front tightener sprocket adjusting

1шт.

18742R1

BOLT, 5/8 x 4" type 1 crg

1шт.

21471R1

WASHER

21/32 x 1 x 11 ga

4шт.

121589

TINE BAR

NUT, 5/8"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

4

594706R91

SPROCKET ASSY.,15T

SPROCKET, 15T tightener rear

1шт.

18724R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4", Gr 2

BOLT, 5/8 x 4" type 1 crg

1шт.

21471R1

WASHER

21/32 x 1 x 11 ga

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

5

355681R1

SPACER, sprocket

1шт.

6

824365C1

SUPPORT, rear tightener sprocket

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

7

824022C1

SPROCKET ASSY.

SPROCKET, 30T rear auger driven

1шт.

Q1497

KEY,Gib, 3/8" Sq x 2"

3/8 x 2" gib-hd

1шт.

8

CHAIN, rear auger drive LH (5/8" pitch standard) (for service order 1-1791D 10 ft. chain, reduce to 101 links and add 1-1310-D connecting link)

1шт.

9

1310D

LINK

chain connecting link

1шт.
