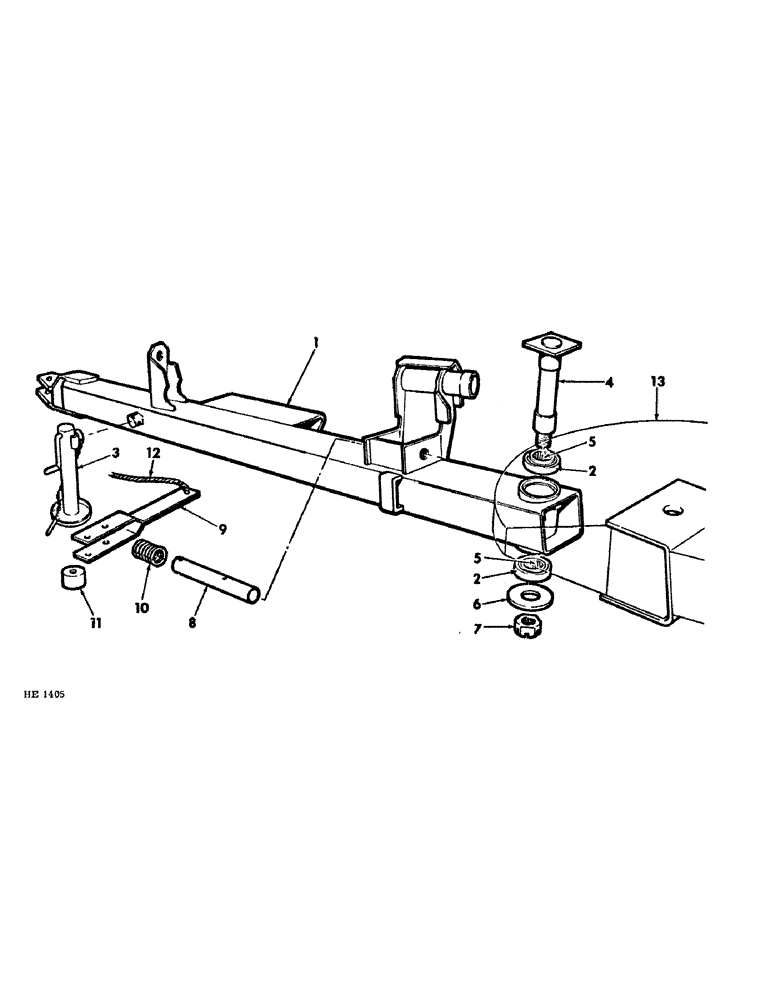

Запчасти Case IH 1290 (02) - MAIN HITCH

1

824161C91

BEAM ASSY, hitch (includes 2-13324D cups)

1шт.

2

13324D

BEARING CUP,2.391" ID x 3.001" OD x 0.952"

CUP, pivot pin bearing

2шт.

3

482261R91

NO LONGER SERVICED

JACK, hitch

1шт.

4

824023C91

SHAFT ASSY, hitch pin composed of: (1) shaft (NSS), (1) washer 586043R1, (1) nut 427652, (1) pin 103387

1шт.

5

13330DB

BEARING

CONE, pivot pin bearing

2шт.

6

586043R1

WASHER

1-1/32 x 3 x 3 ga

1шт.

7

427652

SLOTTED NUT,1"-14, G5

NUT, 1" hex sltd

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

8

824221C1

PIN, hitch pivot lock

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

617938R1

PIN,5/16" x 1 3/8", Coiled

1шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga

1шт.

9

824172C1

YOKE, lock pin lever

1шт.

10

656345C2

SPRING

lock pin

1шт.

11

824222C1

SPACER, lever channel

1шт.

Q3534

HEADED PIN,9.53mm OD x 38.1mm L

PIN, 3/8 x 1-1/2" std-hd-dld

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

12

ROPE, 3/8" x 12 ft. sisal (dealer to supply from bulk stock)

1шт.

13

824150C1

FRAME, main (for service parts refer to "main frame")

1шт.
