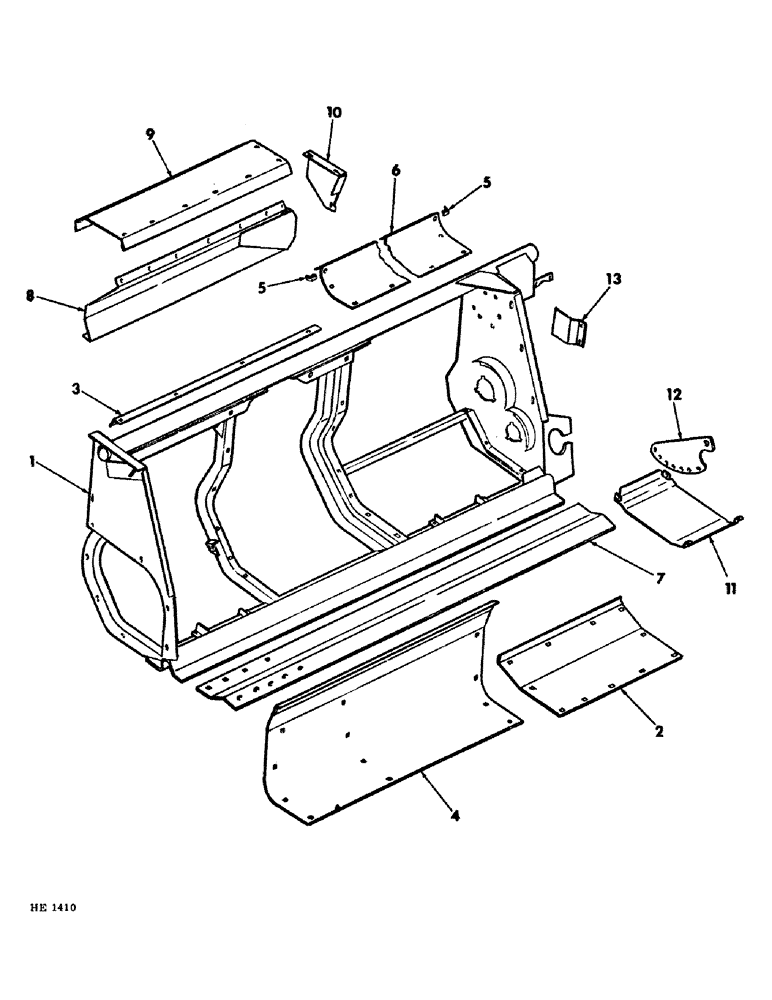

Запчасти Case IH 1290 (18) - PLATFORM

1

824085C1

PLATFORM

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

2

824041C1

SHEET, lower bottom LH

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4" crg

10шт.

120376

NUT,5/16"-18, G5

10шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

3

824028C1

SUPPORT, back sheet

1шт.

4

824042C1

SHEET, bottom RH

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4" crg

11шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16 x 1" crg

3шт.

120376

NUT,5/16"-18, G5

14шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

14шт.

5

617563R1

ANGLE, center filler support

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

6

824070C1

SHEET, center filler

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4" crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

824118C1

GUARD, platform lower stone

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

12шт.

609120R1

BOLT,Short NK, 7/16"-14 x 1 1/8", G5. Full Th

7/16 x 1-1/8" crg

2шт.

271501

SOCKET

NUT, 7/16"

14шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

14шт.

8

824450C1

DEFLECTOR, back lower RH

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4" crg

6шт.

20744R1

WASHER, 11/32 sq x 7/8 x 16 ga

1шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

9

824339C1

DEFLECTOR, back upper RH

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16 x 1" crg

3шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1/4 x 1/2"

5шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

5шт.

120376

NUT,5/16"-18, G5

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

10

824124C1

END, back upper deflector RH

1шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2/4 x 1/2"

2шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1/4 x 5/8"

1шт.

21801R1

WASHER

9/32 x 3/4 x 16 ga

3шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

11

599447R2

SHOE

skid

2шт.

12

824409C1

ARM, shoe adjusting

4шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

4шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

12шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

13

824462C1

DEFLECTOR, hay conditioner crop

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1" crg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120376

NUT,5/16"-18, G5

LK-WASHER, 1/2"

2шт.
