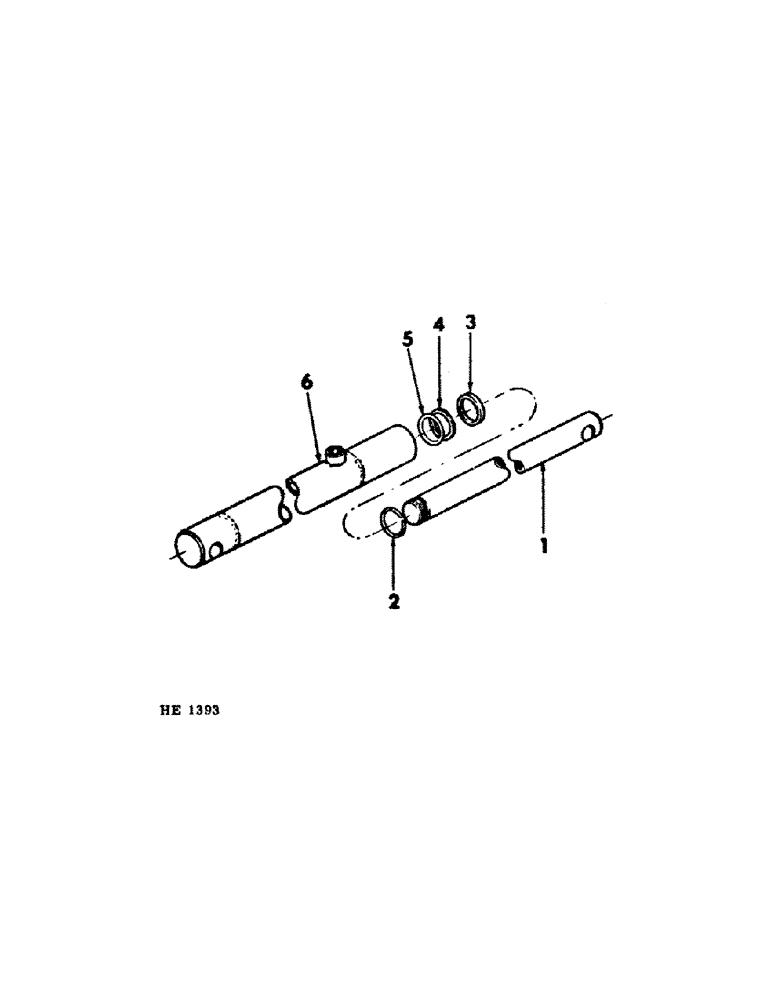

Запчасти Case IH 1290 (17) - CYLINDER, PLATFORM LIFT, CESSNA

599221R91

CYLINDER

ASSY, platform lift hyd (opt w/549942R91, cylinder assy) (composed of all parts listed below)

2шт.

1

599988R1

ROD

hyd cyl piston

1шт.

2

RING, rod lock (NSS) (for service order 1-823375C1, kit)

1шт.

3

SEAL, piston rod wiper (NSS) (for service order 1-823375C1, kit)

1шт.

4

WASHER, back-up (NSS) (for service order 1-823375C1, kit)

1шт.

5

"O" RING, piston rod (NSS) (for service order 1-823375C1, kit)

1шт.

6

599987R1

BODY, cylinder

1шт.

823375C1

SEAL KIT

KIT, hyd cylinder seal repair composed of: (1) "o" ring (NSS), (1) ring (NSS), (1) seal (NSS), (1) washer (NSS)

1шт.
