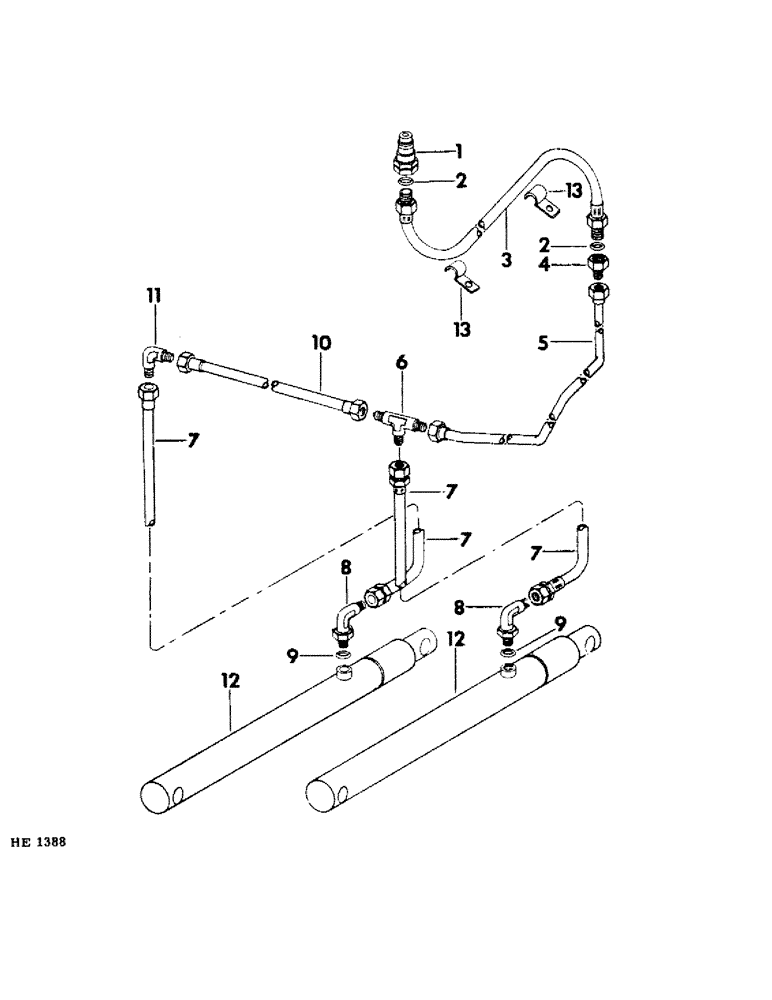

Запчасти Case IH 1290 (16) - HYDRAULIC SYSTEM, FOR USE ON TRACTORS WITH SINGLE HYDRAULIC VALVE

1

395149R1

QUICK MALE COUPLING

COUPLER, hose male (recommended hydraulic coupler)

1шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING, coupler and hose

2шт.

3

407097R91

HOSE

1/2 I.D. x 29/32 O.D. x 120" (recommended hydraulic hose)

1шт.

4

824391C1

UNION, valve to cyl tee tube reducer

1шт.

5

824234C11

TUBE, valve to cylinder fee

1шт.

6

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

37deg. three-way (LH side)

1шт.

7

392870R91

HOSE

cylinder

2шт.

8

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

cylinder 90º, 9/16"-18, 37º x 9/16"-18, O-Ring

2шт.

9

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

2шт.

10

824233C11

TUBE, left cylinder to right cylinder 0.375" OD, 120.7" Length

1шт.

11

9402942

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

37deg. tube (RH side)

1шт.

12

CYLINDER, platform lift (for service parts refer to "Cylinder - Platform Lift")

2шт.

13

824359C1

CLAMP, hydraulic hose

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1"

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
