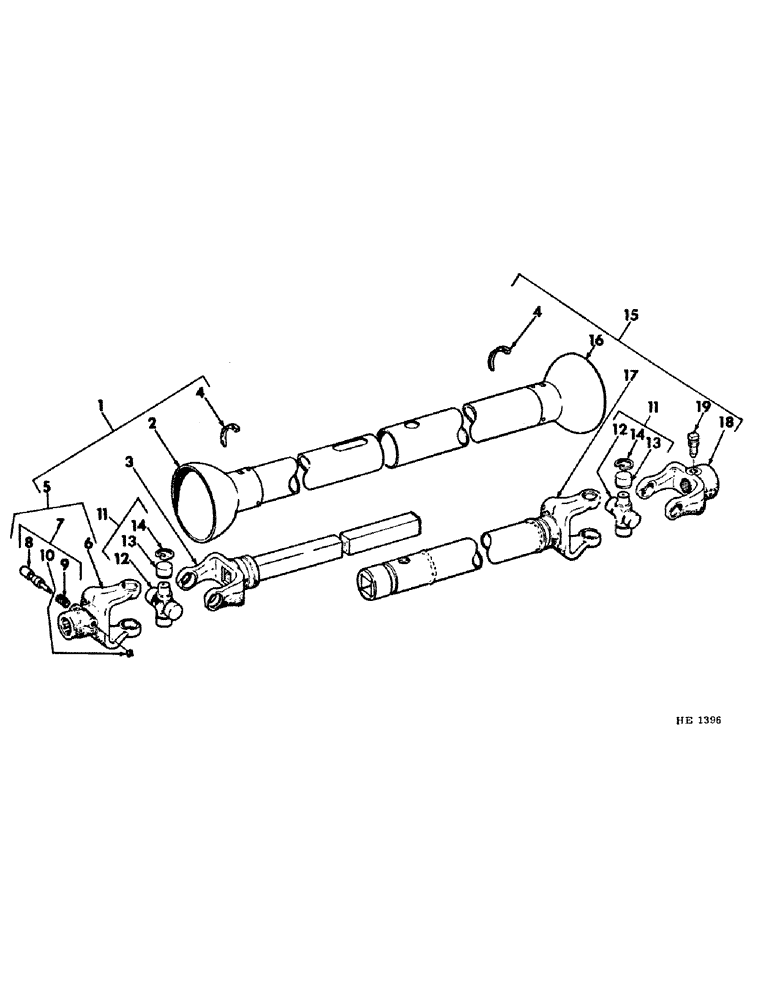

Запчасти Case IH 1290 (15) - FRONT UNIVERSAL, REX CHAIN-BELT INC., OPT W/FRONT UNIVERSAL HAYES DANA

1

824370C91

JOINT ASSY, universal shaft inner composed of: (1) shaft 824379C1, (1) shield 824380C1, (2) bearing 549626R1, (1) yoke assy 668335R11, (1) cross assy 667496R91

1шт.

2

824380C1

SHIELD, inner

1шт.

3

824379C1

SHAFT AND YOKE, universal inner

1шт.

4

549626R1

BEARING

shield

4шт.

5

668335R11

FORK

YOKE ASSY, shaft end composed of: (1) yoke (NSS), (1) pin assy 606172R11

1шт.

6

YOKE, shaft end (NSS) (for service order 1-668335R11, yoke assy)

1шт.

7

606172R11

PIN

ASSY, release composed of: (1) pin (NSS), (1) washer 661406R1, (1) spring 455347R1

1шт.

8

PIN, release (NSS) (for service order 1-606172R11, pin assy)

1шт.

9

455347R1

VALVE SPRING

SPRING, release

1шт.

10

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

type x retaining

1шт.

11

667496R91

SPIDER ASSY.

CROSS ASSY, center composed of: (1) cross (NSS), (4) ring 667498R1, (4) bearing (NSS), (1) fitting 109461

2шт.

12

CROSS, center (NSS) (for service order 1-667496R91, cross assy)

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

LUB-FITTING, 1/4"

2шт.

13

BEARING, center (NSS) (for service order 1-667496R91, cross assy)

8шт.

14

667498R1

RING

cross retaining

8шт.

15

824371C91

JOINT ASSY, universal tube outer composed of: (1) tube assy 824381C91, (1) yoke 824376C1, (1) screw assy 482904R91, (1) cross assy 667496R91, (2) bearing 549626R1, (1) shield 824385C1

1шт.

16

824385C1

SHIELD, outer

1шт.

17

824381C91

TUBE ASSY, universal outer (includes 1-109454, fitting) 16.62" Length

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

18

824378C1

YOKE, universal tube end

1шт.

19

482904R91

SCREW ASSY, yoke (includes 114496, nut)

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, 1/2", NF jam

1шт.
