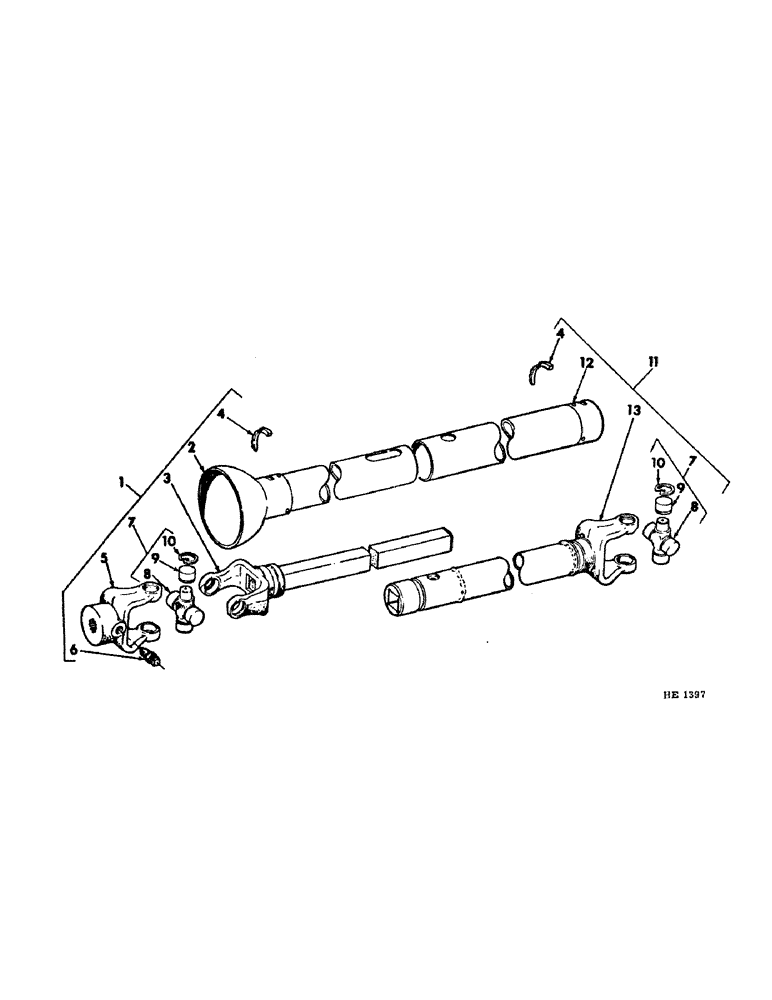

Запчасти Case IH 1290 (13) - REAR UNIVERSAL, REX CHAIN-BELT INC., OPT W/REAR UNIVERSAL HAYES DANA

1

824372C91

JOINT ASSY, universal shaft inner composed of: (1) shaft 824374C1, (1) yoke 824376C1, (1) screw assy 482904R91, (1) cross assy 667496R91, (1) shield 824375C1, (2) bearing 549626R1

1шт.

2

824375C1

SHIELD, inner

1шт.

3

824374C1

SHAFT AND YOKE, universal inner

1шт.

4

549626R1

BEARING

shield

4шт.

5

824376C1

YOKE, end inner

1шт.

6

482904R91

SCREW ASSY, yoke (includes 114496, nut)

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, 1/2" - NF jam

1шт.

7

667496R91

SPIDER ASSY.

CROSS ASSY, center composed of (1) cross (NSS), (4) ring 667498R1, (4) bearing (NSS), (1) fitting 109460

2шт.

8

CROSS, cneter (NSS) (for service order 1-667496r91, cross assy)

2шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

NIPPLE, LUBE, 65º, 1/8" NPT x 7/8" lg

2шт.

9

BEARING, center (NSS) (for service order 1-667496R91, cross assy)

8шт.

10

667498R1

RING

cross retaining

8шт.

11

824373C91

JOINT ASSY, tube outer composed of: (1) tube assy 824377C91, (1) shield 824378C1, (1) cross assy 667496R91, (2) bearing 549626R1

1шт.

12

824378C1

SHIELD, outer

1шт.

13

824377C91

TUBE ASSY, universal outer (includes 1-109454, fitting) 28.31" Length

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.
