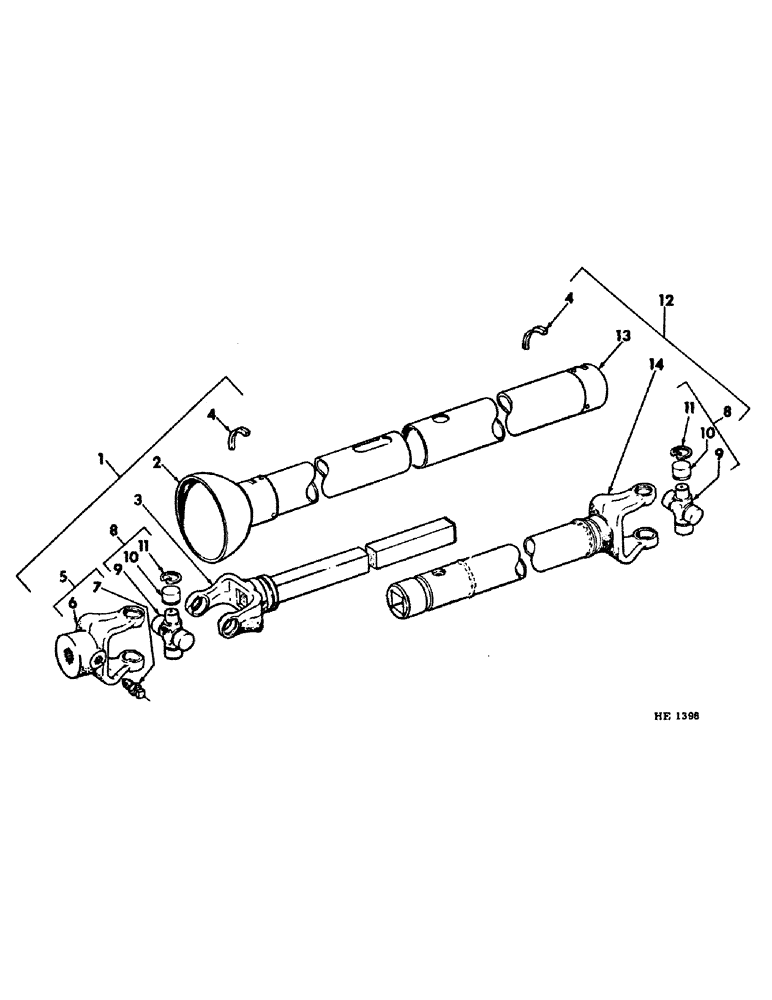

Запчасти Case IH 1290 (12) - REAR UNIVERSAL, HAYES-DANA, OPT W/REAR UNIVERSAL REX CHAIN BELT INC

1

824143C91

JOINT

ASSY, shaft inner composed of (1) yoke assy 543442R91, (1) cross assy 667558R91, (1) shaft 824176C1, (1) shield 824166C1, (1) kit 599640R1

1шт.

2

824166C1

SHIELD, inner

1шт.

3

824176C1

SHAFT AND YOKE, universal inner

1шт.

4

599640R1

KIT

shield bearing composed of (6) bearing (NSS)

1шт.

5

543442R91

YOKE

ASSY, universal shaft end composed of (1) yoke (NSS), (1) screw 38904K, (1) nut 124934

1шт.

6

YOKE, end inner (NSS) (for service order 1-543442R91, yoke assy)

1шт.

7

38904K

SET SCREW,1/2" - 20 x 1-9/16"

SCREW, 1/2" sq-hd set

1шт.

25-158

JAM NUT,Jam, 1/2"-20, G5

1/2" hex jam

1шт.

8

667558R91

KIT

CROSS ASSY, center composed of: (1) cross (NSS), (4) ring 667561R1, (4) bearing (NSS), (1) fitting 109454

2шт.

9

CROSS, center (NSS) (for service order 1-667558R91, cross assy)

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

10

BEARING, center (NSS) (for service order 1-667558R91, cross assy)

8шт.

11

667561R1

RING

cross retaining

8шт.

12

824144C91

JOINT ASSY, universal tube outer composed of: (1) cross assy 667558R91, (1) tube 824147C1, (1) fitting 109454, (1) shield 824167C1, (1) kit 599640R1

1шт.

13

824167C1

SHIELD, outer

1шт.

14

824147C1

YOKE AND TUBE, universal outer 28.313, 2.75" Length

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.
