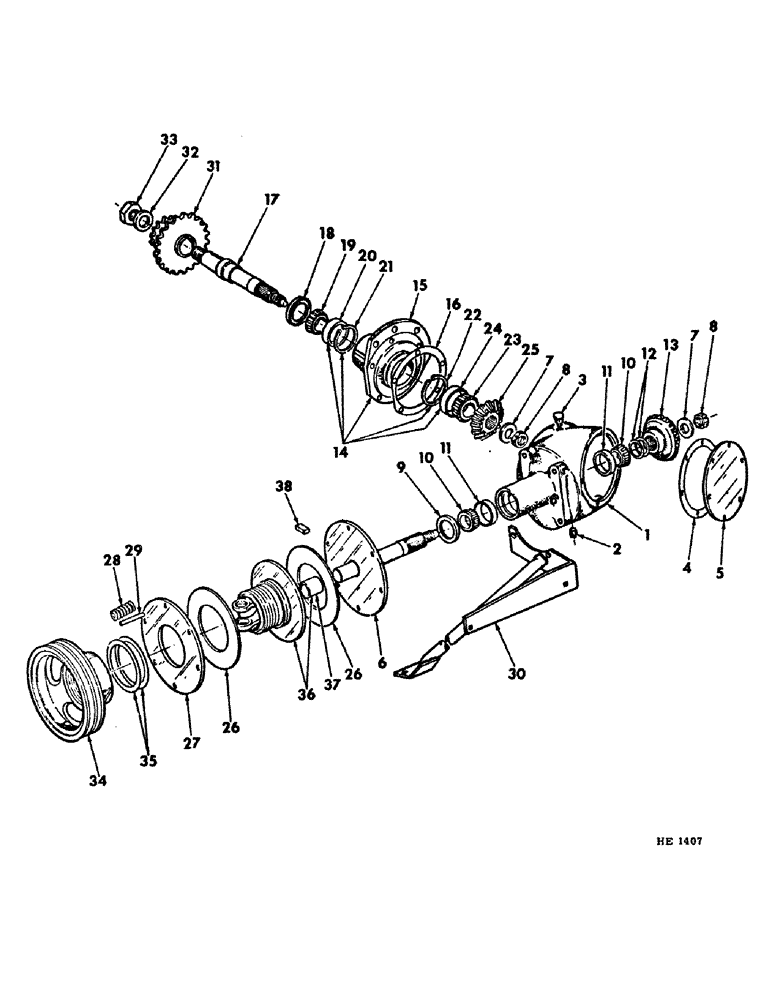

Запчасти Case IH 1290 (10) - GEAR BOX DRIVE AND CLUTCH

1

548052R1

CASE

HOUSING, gear

1шт.

2

445673

PIPE PLUG,Sq Hd, 3/8"-18 NPTF

PLUG, 3/8-18 sq-hd pipe

2шт.

3

91916R91

BREATHER,3/8"-18 NPT, Short, w/washer

PLUG, housing breather (opt w/153604H1, plug)

1шт.

3

153604H1

BREATHER

PLUG, housing breather (opt w/91916R91, plug)

1шт.

4

663607R1

GASKET

gear box cover

1шт.

5

663596R1

COVER, gear box

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

6

824497C11

SHAFT ASSY, input composed of (1) shaft (NSS), (1) washer 21846R1, (1) nut 427645, (1) pin 137214

1шт.

7

21846R1

WASHER, 29/32 x 2 x 3 ga

2шт.

8

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 hex slotted

2шт.

137214

COTTER PIN

1/8" x 1-3/4"

2шт.

9

380922R91

OIL SEAL,42.42mm ID x 69.95mm OD x 12.7mm Thk

input shaft oil

1шт.

10

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

CONE, input shaft bearing

2шт.

11

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Input shaft

2шт.

12

663604R2

SHIM

gear .020

1шт.

12

663605R2

SHIM

gear .007

1шт.

12

663606R2

SHIM

gear .005

1шт.

13

469248R2

GEAR, 20T bevel drive

1шт.

14

824096C11

HOUSING ASSY, gearbox output shaft composed of (1) housing (NSS), (1) cup 663558R1, (1) ring 603625C1, (1) ring 611306R1, (1) cup ST978

1шт.

15

HOUSING, gearbox output shaft (NSS) (for service order 1 - 824096C11, housing assy)

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4"

4шт.

180151

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

7/16 x 1-3/4"

5шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

5шт.

16

663601R1

SHIM

bearing housing .020

1шт.

16

663602R1

SHIM

bearing housing .007

1шт.

16

663603R1

SHIM

bearing housing .005

1шт.

17

824109C11

SHAFT ASSY, gear box output composed of: (1) shaft (NSS), (1) washer 21846R1, (1) washer 21226R1, (1) nut 219792, (1) nut 427645, (1) pin 137214

1шт.

18

824097C91

SEAL

gear box output oil

1шт.

19

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE, output shaft outer bearing

1шт.

20

663558R1

BEARING CUP

CUP, output shaft outer bearing

1шт.

21

603625C1

SNAP RING,2.875", Int, #287

Ring, Snap, , outer brg 2.875", Int, #287

1шт.

22

611306R1

RING, inner bearing retaining

1шт.

23

13330DB

BEARING

CONE, output shaft inner bearing

1шт.

24

ST978

TAPERED BEARING,1.5005" ID x 3.001" OD x 0.9515"

CUP, output shaft inner bearing

1шт.

25

469392R2

GEAR

15T bevel driven

1шт.

26

474599R1

FACING

clutch

2шт.

27

467722R1

PLATE

clutch floating

1шт.

28

M973

SPRING

clutch

6шт.

189305

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

3/8 x 3-1/2"

6шт.

619856R1

WASHER

13/32 x 1 x 16 ga

6шт.

595848R1

NUT

LK-NUT, 3/8"

6шт.

29

824131C1

SPACER

clutch spring

6шт.

30

824174C1

SUPPORT, gear case

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4"

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

31

824122C1

SPROCKET ASSY.

SPROCKET, gear box output (for service parts refer to "Rear Auger Drive" and "Conditioner Drive")

1шт.

32

21226R1

WASHER

1-9/32 x 2 x 11 ga shaft

1шт.

33

631415

FLEXIBLE HOSE

NUT, 1-1/4-12 hex jam

1шт.

34

824382C1

PULLEY, knife drive (for service parts refer to "Knife Drive")

1шт.

35

824465C1

WASHER, pulley spacer (as req'd)

4шт.

36

824158C91

YOKE ASSY, clutch (includes 1 - 460538R1, bushing)

1шт.

37

460538R1

BUSHING

clutch yoke

1шт.

38

824286C1

WEDGE, clutch storage

3шт.
