Запчасти Case IH DC162 (15.06) - HEADER, DRIVE (15) - CROP CONDITIONING

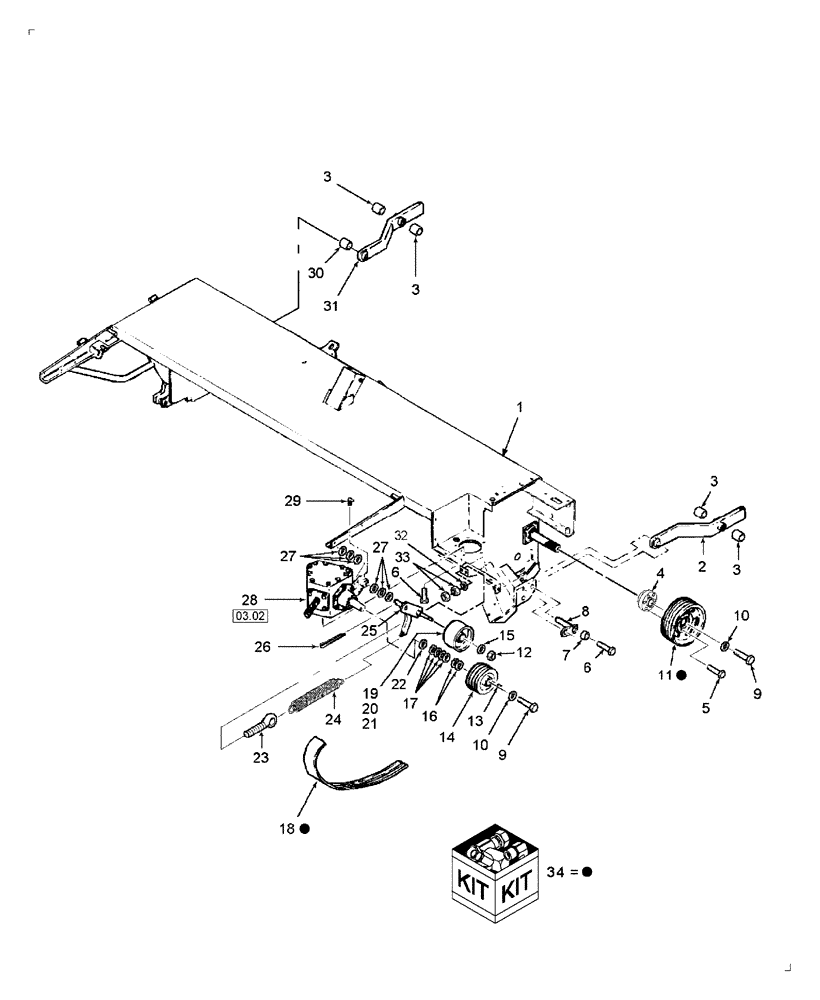

Схема запчастей Case IH DC162 - (15.06) - HEADER, DRIVE (15) - CROP CONDITIONING
7
17
13
15
03.02
9
09
21
27
26
27
8
1
31
33
30
3
24
25
12
20
10
6
29
14
3
11
3
23
28
22
16
6
9
2
32
10
18
34
3
5
4

Артикул

Название

Примечание

Количество

1

86540171

HEADER

1шт.

2

86607957

LIFT ARM

LH, Includes: (2) Ref. 3

1шт.

3

9611935

BUSHING,31.83mm ID x 39.115mm OD x 26.92mm L

4шт.

4

86540089

HUB

13T

1шт.

5

280523

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

6шт.

6

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

7шт.

7

167381

SPACER

2шт.

8

86506026

PIN,28.57mm OD x 140mm L

2шт.

9

88557

BOLT,Hex, 3/4" - 10 x 2", Gr 5, Full Thd

2шт.

10

86516694

WASHER

3/4"

2шт.

11

86538651

PULLEY

4 Grooves, 177.8mm OD

1шт.

11

86633564

PULLEY

4 Groove, 247.7mm OD, Part of Ref 35, Low speed Kit, See Ref 18

1шт.

12

280375

NUT,3/4"-10, GC

1шт.

13

87495

KEY,0.31" x 2.50" L

5/16" Sq x 2-1/2"

1шт.

14

86632264

PULLEY

7" OD

1шт.

15

86512328

WASHER,19.46mm ID x 35.05mm OD x 3.43mm Thk

1шт.

16

28581

WASHER,38.9mm ID x 60.3mm OD x 3.5mm Thk

1"

1шт.

17

28691

WASHER,39mm ID x 60mm OD x 0.89mm Thk

1-1/2"

4шт.

18

86627809

V-BELT,0.66" W x 68.50" L, 4 Ribs

1шт.

18

9601139

V-BELT,16.76 mm W x 1867.00 mm W, 4 Ribs

4HB, Part of Ref 34 Low Speed Kit, See Ref 11

1шт.

19

86632727

IDLER

1шт.

20

217994

SPACER

3/4" ID x 1"x 1-1/4" L

1шт.

21

9807906

BALL BEARING,0.7504" ID x 1.7805" OD x 0.61"

2шт.

22

86510186

SPACER

1шт.

23

631201

EYEBOLT

3/8"-16 x 5-1/2"

1шт.

24

87054556

TENSION SPRING

1шт.

25

86632284

ARM

1шт.

26

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

1шт.

27

26402

WASHER,25.8mm ID x 38.1mm OD x 1.7mm Thk

1шт.

28

87545091

FINAL DRIVE

FINAL REDUCTION GEARBOX Bevel

1шт.

28

87545091R

REMAN-GEARBOX

Reman Gearbox, DC102F

1шт.

28

87545091C

CORE-GEARBOX

Return Number

1шт.

29

87414

LUBE NIPPLE,1/4" - 28

1шт.

30

86603645

SPACER

1шт.

31

86607958

LIFT ARM

RH, Includes: (2) Ref. 3

1шт.

32

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

1шт.

33

9628503

NUT,3/8"-16, G5

2шт.

34

716536026

DIA KIT, HARVESTER

Low Speed Rotor, Includes Ref 11 & 18 As Indicated

1шт.

Выбрано товаров: 38
