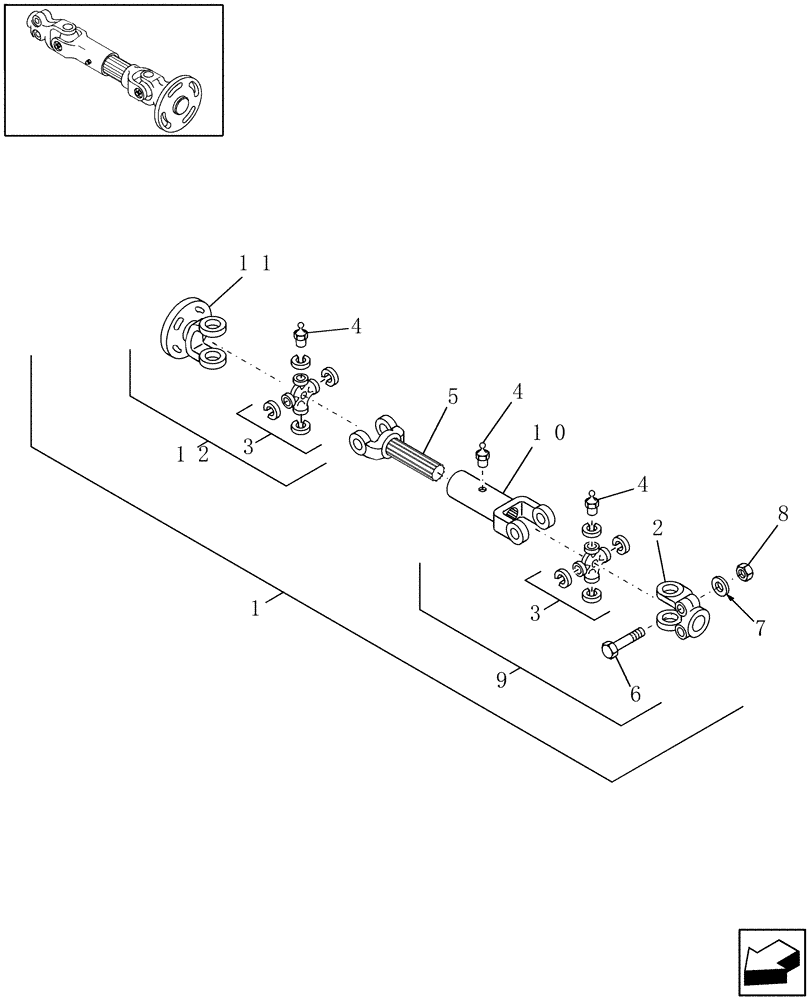

Запчасти Case IH DC162 (15.04) - CONDITIONER ROLLS DRIVE SHAFTS (15) - CROP CONDITIONING

1

87543717

PTO

Yoke & Shaft, Includes Ref. 2, 3 & 5

1шт.

2

87543886

YOKE

Clamp

3шт.

3

87575195

U-JOINT SPIDER

Includes Ref. 4

4шт.

4

87414

LUBE NIPPLE,1/4" - 28

6шт.

5

87543882

YOKE

Shaft

2шт.

6

88009

BOLT,Hex, 1/2" - 20 x 2 1/4", Gr 5

2шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

8

280963

NUT,Nut, 1/2-20 GR 5 ZND

1шт.

9

87543861

PTO

Female Half, Includes: Ref. 2, 3, & 10

1шт.

10

87543880

YOKE

Slip, Includes: Ref. 4

1шт.

11

87543867

YOKE

Flange

1шт.

12

87543726

PTO

Male Half, Includes Ref. 3, 5, & 11

1шт.
