Запчасти Case IH DC162 (15.01) - CONDITIONING ROLLS & HEADER COMPONENTS (15) - CROP CONDITIONING

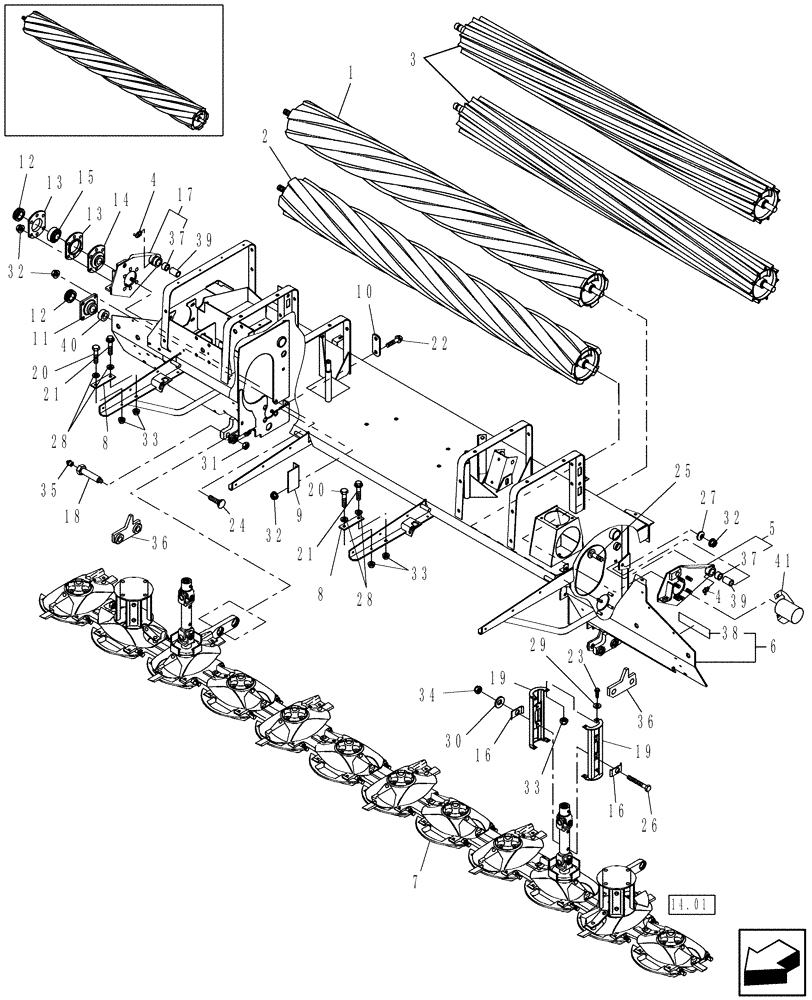

Схема запчастей Case IH DC162 - (15.01) - CONDITIONING ROLLS & HEADER COMPONENTS (15) - CROP CONDITIONING
16
26
32
12
29
5
30
12
11
38
14
41
4
1
22
16
7
10
27
4
23
33
33
3
32
32
20
8
39
6
2
31
19
17
28
9
35
20
28
14.01
21
19
8
15
39
18
33
24
36
40
21
13
25
37
36
34
13
37

Артикул

Название

Примечание

Количество

1

86610941

ROLLER ASSY.

Spiral Rubber, Upper

1шт.

2

86610945

ROLLER ASSY.

Spiral Rubber, Lower

1шт.

1a

87489875

ROLL

Chevron Rubber, Upper

1шт.

1a

84392692

ROLL,263.5mm OD x 2798.24mm L

Chevron Rubber Upper, Start Year: 01-MAR-11

1шт.

1a

84392692R

REMAN-ROLLER

Chevron Rubber Upper, Start Year: 01-MAR-11

1шт.

1a

84392692C

CORE-ROLLER

Return Number

1шт.

2a

87490270

ROLL

Chevron Rubber, Lower

1шт.

2a

84392701

ROLL

Rubber, Lower, Start Year: 01-MAR-11

1шт.

2a

84392701R

REMAN-ROLLER

Rubber, Lower, Start Year: 01-MAR-11

1шт.

2a

84392701C

CORE-ROLLER

Return Number

1шт.

1b

86610314

ROLL

Steel, Spiral, Upper

1шт.

2b

86610313

ROLL

Steel, Spiral, Lower DO NOT INTERMIX WITH RUBBER ROLLS

1шт.

1c

84294055

ROLL

Steel, Chevron, Upper

1шт.

2c

84294053

ROLL

Steel, Chevron, Lower

1шт.

4

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

2шт.

5

87056485

ARM ASSY.

LH, Roll

1шт.

6

86624369

FRAME ASSY

Header - Includes: Decal Tape, Ref. 38

1шт.

7

0C

ORDER COMPONENTS

Cutterbar Assembly

1шт.

8

849495

RUBBER PAD

4шт.

9

87549208

ANGLE

1шт.

10

48324

PLATE

Upper Brace

1шт.

11

84527700

BEARING HOUSING

Includes: Bearing

2шт.

12

45393

COLLAR

4шт.

13

86629969

FLANGE

4шт.

14

86633047

SHROUD

2шт.

15

86575514

BALL BEARING,34.92mm ID x 80mm OD x 24.3mm W

2шт.

16

NSS

NOT SOLD SEPARAT

Reinforcement

8шт.

17

87055307

ARM

RH, Roll

1шт.

18

86571960

BOLT

Cutterbar Mounting

4шт.

18

87721979

BOLT

Cutterbar Mounting, Start Year: 01-JUL-09, Start Serial: Y9N083777

4шт.

19

84260963

KIT

Tall Drum, Inc: 16, 26, 30 & 34

2шт.

Drum Halves and Reinforcements Are NSS

1шт.

19

84469547

KIT

Tabbed Tall Drum, Inc: 16, 26, 30 & 34

2шт.

Replaces 84260963, Drum Halves NSS

1шт.

20

88275

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

4шт.

21

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

22

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

23

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

24

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

1шт.

25

280818

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

2шт.

26

280464

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 8

4шт.

27

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

2шт.

28

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

8шт.

29

80681

LOCK WASHER,5/16"

8шт.

30

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

31

86557260

SPECIAL NUT

Special, Lock, 3/4"-10

4шт.

32

86521607

FLANGE NUT,Flg, 1/2"-13, G5

18шт.

33

9823743

FLANGE NUT,Flg, 5/16"-18

16шт.

34

86521609

FLANGE NUT,Flg, 3/8"-16

4шт.

35

87414

LUBE NIPPLE,1/4" - 28

4шт.

36

86565127

KIT

Cutterbar Support - Includes: (1) LH Support & (1) RH support

1шт.

37

86540342

BUSHING,30.15mm ID x 36.41mm OD x 19.05mm L

4шт.

38

86547783

REFLECTOR,Tape, Red Orange

Tape, Red/Orange Fluorescent

2шт.

39

9849929

SPACER

2шт.

40

86573045

SPACER,34.6mm ID x 75.6mm OD x 33.8mm L

2шт.

41

86607882

TUBE,115 mm L

2шт.

ONLY Used With Steel Rolls. Attaches With Existing Hardware.

1шт.

Выбрано товаров: 57
