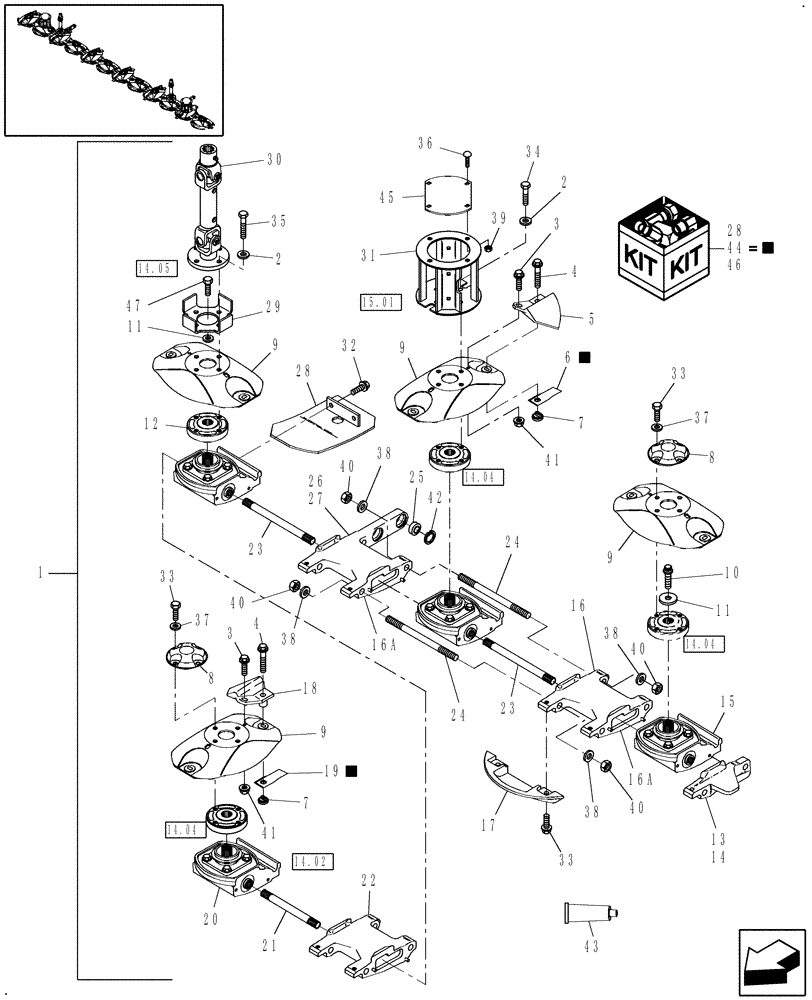

Запчасти Case IH DC162 (14.01) - CUTTERBAR (14) - CROP CUTTING

1

87688687

CUTTERBAR

Does Not Include Ref. 30 & 31

1шт.

2

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

16шт.

3

86515925

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8

24шт.

3

87040886

BOLT

Flg, Self-Locking, G8, 1/2"-13 x 1-1/4"

24шт.

Replaces 86515925 in kits 87528245 & 87528249.

1шт.

4

86515926

FLANGE BOLT,Hex, 1/2" - 13 x 1.75", Gr 8

48шт.

5

86626960

KIT

Lifter, CW

1шт.

Includes: 2 Lifters & all Mounting Hardware.

1шт.

5

87528245

KIT

Lifter, CW

1шт.

Includes: 2 Lifters & all Mounting Hardware.

1шт.

6

9847683

BLADE,Knife CW

CW

12шт.

6

86621872

BLADE

CW, 14° Twist

1шт.

Cleaner Cutting in Light Crops - Shipped in Qtys. of 25.

1шт.

Standard Equipment.

1шт.

6

87029587

BLADE

CW, 14° Twist, Over-Serrated

1шт.

6

86532078

KNIFE

Straight

1шт.

7

87725066

NUT

1/2" Special

24шт.

8

87581143

CAP

See Fig. 14.03

8шт.

9

87646406

DISC

12шт.

10

87579665

BOLT,5/8" - 11 x 1-3/4"

Cap, 12 Pt, Flg Hd, 5/8"-11 x 1-1/2", Locking Patch

10шт.

11

574245

WASHER,16.76mm ID x 50.8mm OD x 6.35mm Thk

Hardened, Special, M16

12шт.

13

86629691

ARM

LH, Includes: Groove Pins

1шт.

14

86629690

ARM

End, RH, Includes: Ref. 16A (2)

1шт.

15

0C

ORDER COMPONENTS

Module, Control, CW

6шт.

16

87044109

SPACER

Includes: Ref 16A (24)

2шт.

16a

86515496

GROOVED PIN,9.53mm OD x 19.05mm L

3/8" x 3/4" Heat Treated

64шт.

17

87047845

STONEGUARD

Guard, Rock

12шт.

18

87528249

KIT

Lifter, CCW

12шт.

Includes: 2 Lifters & all Mounting Hardware.

1шт.

19

9847684

BLADE,Knife CCW

CCW

12шт.

19

86621873

BLADE

CCW, 14° Twist

1шт.

Standard Equipment.

1шт.

19

87029588

BLADE

CCW, 14° Twist, Over-Serrated

1шт.

19

86532078

KNIFE

Straight

1шт.

20

0C

ORDER COMPONENTS

Module, Control, CCW

6шт.

21

86519042

SHAFT

248mm

7шт.

22

86506032

SPACER

Includes: Ref. 16A (28)

7шт.

23

86519039

SHAFT

268mm

4шт.

24

86501934

THREADED ROD

12.2" L

24шт.

25

365820

BUSHING,25.4mm ID x 36.5mm OD x 22.23mm L

Spherical

4шт.

26

87057898

ARM ASSY.

LH - Includes: Ref. 16A (4)

1шт.

27

87057901

ARM ASSY.

RH - Includes: Ref. 16A (4)

1шт.

28

87047426

SKID/SHOE

12шт.

28

84141953

SKID/SHOE

HD HT, For Abrasive Soil Conditions

12шт.

28

87622885

SHOE

High Skid

1шт.

28

715289026

DIA KIT, HARVESTER

Hi Stub, Includes: (8) 87622885 Hi Skid Shoes & Instructions

1шт.

29

86629689

DISC

2шт.

30

86565923

SHAFT

Drive

2шт.

Not Included With Ref. 1 Cutterbar, Must Be Ordered Separate

1шт.

30a

84469547

KIT

Shield Kit

1шт.

31

87040772

DRUM

2шт.

Not Included With Ref. 1 Cutterbar, Must Be Ordered Separate

1шт.

32

86533474

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 5

24шт.

33

9790143

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

56шт.

34

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

8шт.

35

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

8шт.

36

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

8шт.

37

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

32шт.

38

86512328

WASHER,19.46mm ID x 35.05mm OD x 3.43mm Thk

48шт.

39

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

8шт.

40

86518194

NUT,3/4"-10, G8

48шт.

41

86544265

FLANGE NUT,Flg, 1/2"-13, G8

Flg, G8, 1/2"-13

24шт.

42

271429

SNAP RING,1.625", Int, #162

4шт.

43

9861804DS

GREASE

14oz. Tube

1шт.

Use on Shaft 86519042 & 86519039

1шт.

44

86624751

KNIFE SET

Includes (10) 14° CW Blades, Ref 6 & (10) 14° CCW Blades, Ref 19

1шт.

44

86624752

KNIFE SET

Includes (16) 14° CW Blades, Ref 6 & (16) 14° CCW Blades, Ref 19

1шт.

44

87037027

SET OF BLADES

Includes (16) 14° CW OS Blades, Ref 6 & (16) 14° CCW OS Blades, Ref 19

1шт.

45

86631895

COVER

2шт.

46

87056499

SHIM KIT

Includes: (10) Shims, NSS, & Instructions

1шт.

47

87584169

BOLT,5/8" - 11 x 1-1/2"

Cap, 12 Pt, Flg Hd, 5/8"-11 x 1 1/2", Locking Patch

2шт.
