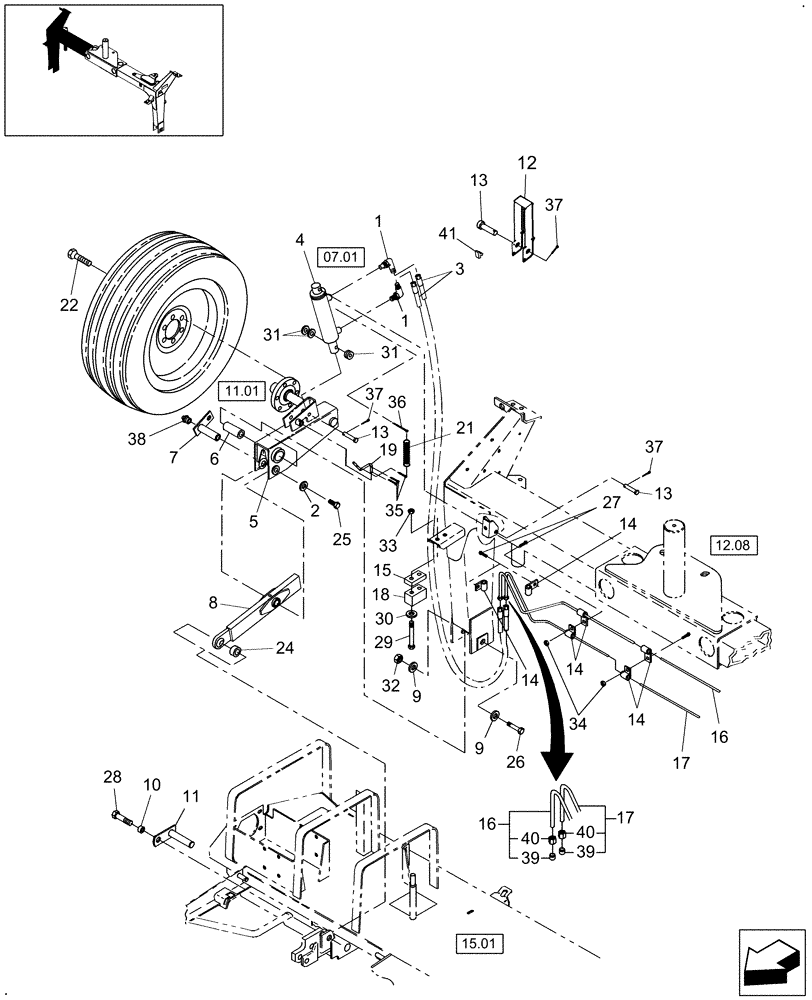

Запчасти Case IH DC162 (12.09) - TRAILFRAME, RH (12) - MAIN FRAME

1

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

2

86516694

WASHER

1шт.

3

86539889

HOSE

.375" ID x 18"

2шт.

4

87018067

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 254mm Stroke

Master, Monarch

1шт.

Cylinder head will protrude beyond end of barrel.

1шт.

5

0C

ORDER COMPONENTS

Hub & Spindle

1шт.

6

86632243

SPACER

1шт.

7

86632239

PIN,31.75mm OD x 125.5mm L

1шт.

8

86632234

ARM ASSY.

1шт.

9

25769

WASHER,25.8mm ID x 49.21mm OD x 3.17mm Thk

2шт.

10

167381

SPACER

1шт.

11

86522799

PIN

1шт.

12

87061353

STOP

1шт.

13

87061043

PIN

2шт.

14

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

6шт.

15

84154208

SPACER

Spacer

1шт.

16

86539895

HYD TUBE,12.70 mm OD

1шт.

17

86539896

HYD TUBE,12.70 mm OD

1шт.

18

86519305

BUMPER

1шт.

19

87618910

LATCH

1шт.

20

Reference Not Used

1шт.

21

86539129

SPRING

1шт.

22

86628557

WHEEL BOLT,Hex Csk, 9/16" - 18 x 1 1/8", HTS

6шт.

24

86603645

SPACER

1шт.

25

281074

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

1шт.

26

86534764

BOLT,Hex, 1" - 8 x 8", Gr 8

1шт.

28

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

29

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

30

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

1шт.

31

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

5шт.

32

9849633

NUT,1"-8, G5

1шт.

33

86521610

FLANGE NUT,Flg, 1/2"-13

1шт.

34

86521609

FLANGE NUT,Flg, 3/8"-16

3шт.

35

80756

COTTER PIN,1/8" x 3/4"

3шт.

36

87400

COTTER PIN,3/16" x 2"

1шт.

37

80753

COTTER PIN,1/4" x 1 1/2"

2шт.

38

87414

LUBE NIPPLE,1/4" - 28

1шт.

39

235671

SLEEVE,37 Degree, 1/2" Tube

4шт.

40

129428

TUBE NUT,37 Degree, 3/4"-16, Type B

4шт.

41

216328

BUMPER

1шт.
