Запчасти Case IH DC162 (12.05) - TONGUE & HYDRAULIC LINES (12) - MAIN FRAME

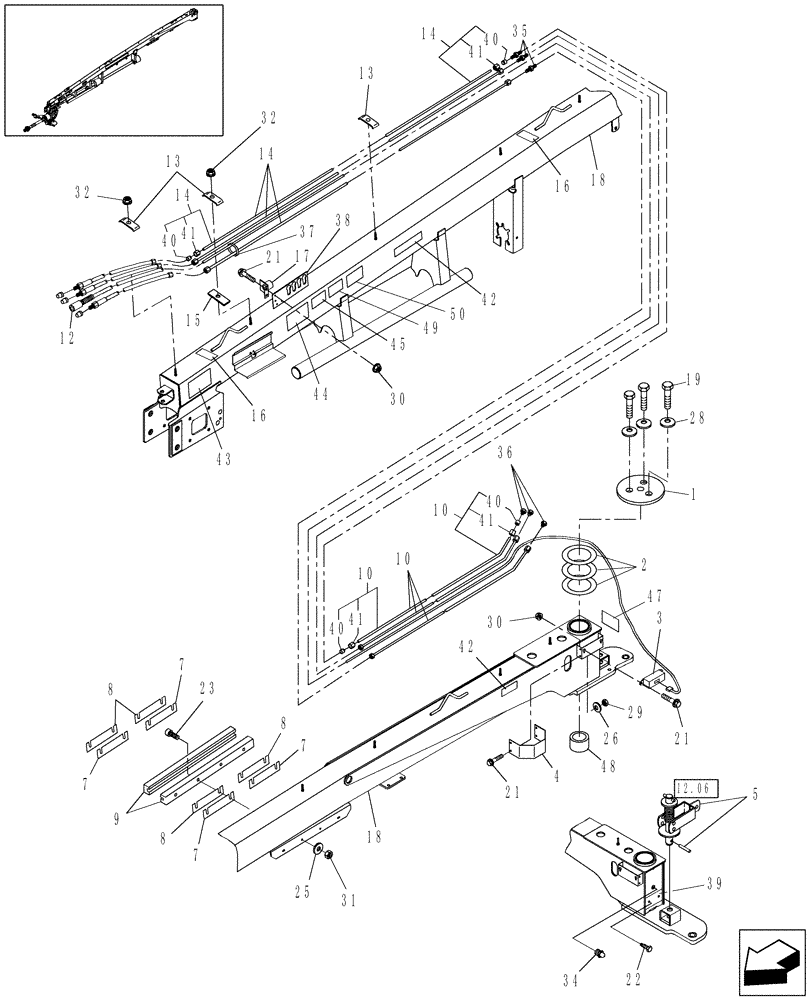

Схема запчастей Case IH DC162 - (12.05) - TONGUE & HYDRAULIC LINES (12) - MAIN FRAME
18
40
37
29
41
47
21
40
40
3
49
16
41
45
21
19
38
32
4
2
18
39
32
12.06
1
25
15
7
10
41
42
14
40
8
13
41
30
8
22
12
17
34
43
9
10
26
16
7
30
7
23
8
21
36
35
48
31
42
13
28
14
44
14
50
10
5
7

Артикул

Название

Примечание

Количество

1

86627704

PLATE

Retainer

1шт.

2

86510725

WASHER

1шт.

3

86561136

MODULE

Lighting Control

1шт.

3

87537164

WIRE HARNESS

Jumper, Lighting Control, Start Year: 01-SEP-11

1шт.

4

86567415

COVER

, Years: -01-SEP-11

1шт.

5

0C

ORDER COMPONENTS

Latch

1шт.

7

58639

SHIM

.036" Thick

4шт.

8

64612

SHIM,0.012" Thk

4шт.

9

87676553

CHANNEL

Plastic

2шт.

10

86570701

HYD TUBE,12.70 mm OD

3шт.

12

86560342

WIRE HARNESS

Connectors for Harness, see Model SCX100, Figure 06.01

1шт.

13

86571694

CLAMP

11шт.

14

86570700

HYD TUBE,12.70 OD x 3566.90 mm L

3шт.

15

765394

PAD,19.8mm ID x 31.8mm W x 101.6mm L

11шт.

16

853891

TAPE

Tape, Black Vinyl Foam - 3" x 144" -, Serial Range: Cut-Fit

1шт.

17

9611467

HOLDER

Plug Holder

1шт.

18

87055795

FRAME ASSY

Includes: Decals, Ref. 42-47 & 48

1шт.

19

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

21

86521550

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

22

86598785

SELF-TAP SCREW

Rd Hd, Stainless Steel, #4 x 1/4"

2шт.

23

87032817

BOLT

Cap, HSH, 5/16" x 1"

8шт.

25

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

8шт.

26

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

, Years: -01-SEP-11

4шт.

28

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

3шт.

29

7770

NUT,Hex, 1/4 - 20, Cl 5

, Years: -01-SEP-11

4шт.

30

9626558

FLANGE NUT,Flg, 1/4"-20

4шт.

31

280736

NUT,5/16"-18, GC

8шт.

32

86521609

FLANGE NUT,Flg, 3/8"-16

11шт.

34

87414

LUBE NIPPLE,1/4" - 28

1шт.

35

128822

UNION,3/4" - 16 JIC x 3/4" - 16 JIC

3шт.

36

86511868

PLUG,3/4" - 16 JIC

3шт.

37

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

14шт.

38

86564683

SUPPORT

Hose (Welding Required)

1шт.

39

NS

NOT SERVICED

Model Serial Plate

1шт.

40

235671

SLEEVE,37 Degree, 1/2" Tube

12шт.

41

129428

TUBE NUT,37 Degree, 3/4"-16, Type B

12шт.

42

86547782

REFLECTOR,YELLOW

Yellow Retro Reflective

4шт.

43

86555718

DECAL

Attention, Operate with Check Chains, RH

1шт.

43

86604332

DECAL

Attention, LH

1шт.

43

86604332

DECAL

Attention, LH

1шт.

44

86622073

WARNING DECAL

Before Operaring Machine

1шт.

44

86622074

WARNING DECAL

Before Operaring Machine, French

1шт.

44

86622075

WARNING DECAL

Before Operaring Machine, Spanish

1шт.

45

86624775

WARNING DECAL

Set Machine To Clear Obstructions, English

1шт.

45

86625172

WARNING DECAL

WARNING, Set Machine To Clear Obstructions, French

1шт.

45

86625173

WARNING DECAL

WARNING, Set Machine To Clear Obstructions, Spanish

1шт.

47

770033

WARNING DECAL

Engage Safety Lock

1шт.

47

782380

WARNING DECAL

Engage Safety Lock, French

1шт.

48

86515632

DRIVE BUSHING,102.13mm ID x 114.25mm OD x 76.2mm L

4" (102mm) ID

2шт.

49

87041060

WARNING DECAL

Transport/Towing, English

1шт.

50

87049205

WARNING DECAL

PTO Shielding, English

1шт.

51

84137504

MULTIPOLE CONNECTOR,Female, 7 Pole

7 Cavities, To Tractor 7 Pin Receptacle

1шт.

52

87704559

TERMINAL

Splice Crimp Tin Plated Terminal

5шт.

53

87694141

TERMINAL CONNECTOR,Female, 0.75 - 2 mm2

Stamped Contact

4шт.

54

87694150

LOCKING TAB,Wedge Lock

Lock For 6 Cavity Plug To Module

1шт.

55

87694112

ELEC CONNECTOR,Female, 6 Pole

6 Cavity Recepacle Housing to Module

1шт.

56

87694143

TERMINAL CONNECTOR,Female, 0.75 - 2 mm2

Stamped Contact

2шт.

57

87694141

TERMINAL CONNECTOR,Female, 0.75 - 2 mm2

Stamped Contact

4шт.

58

87694153

CONTACT HOUSING,Female, 4 Cavities

4 Cavity Receptacle Housing To Trail Frame Harness

1шт.

59

87694146

ELEC CONNECTOR,Locking, Green

Wedge Lock For 4 Contact Plug To Trail Frame Harness

1шт.

60

87694144

TERMINAL CONNECTOR,Male, 0.75 - 2 mm2

Stamped Contact

3шт.

61

225161C1

ADAPTER

3 Cavity Housing, To Header Harness

1шт.

62

225290C1

DUST CAP

1шт.

Выбрано товаров: 63
