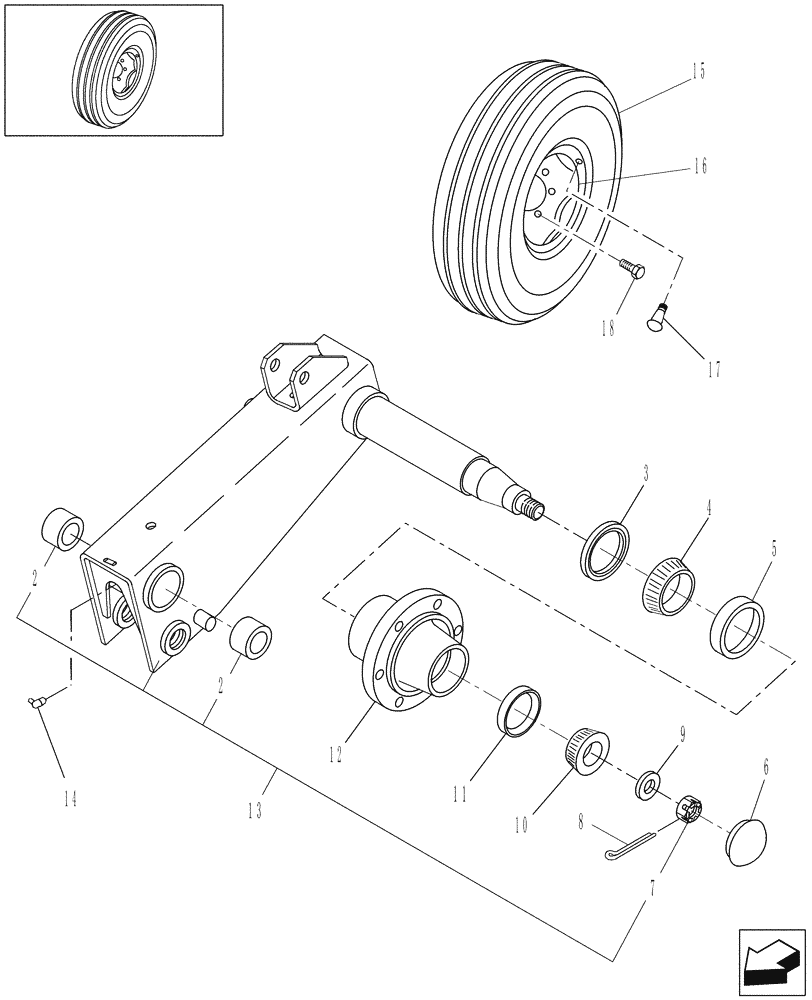

Запчасти Case IH DC162 (11.01) - HUB, SPINDLE & TIRES (11) - WHEELS

2

788926

DRIVE BUSHING,50.75mm ID x 54mm OD x 47.8mm L

2шт.

3

245856

OIL SEAL,57.15mm ID x 82.75mm OD x 6.76mm Thk

Oil

1шт.

4

199954

BEARING CONE,50mm ID x 21.5mm W

1шт.

5

199955

BEARING CUP,82mm OD x 17mm W

1шт.

6

249128

HUB CAP

1шт.

7

280172

SLOTTED NUT,7/8"-14

1шт.

8

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

1шт.

9

9845587

WASHER,23.8mm ID x 44.5mm OD x 6.4mm Thk

Hardened, M23

1шт.

10

175507

BEARING CONE,35 mm ID x 16.764 mm

1шт.

11

175508

BEARING CUP,59.16mm OD x 11.94mm W

1шт.

12

86632701

HUB

1шт.

13

87612241

ARM

LH, Includes Ref. 2 & 7

1шт.

13

87612314

ARM

RH, Includes Ref. 2 & 7

1шт.

14

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

1шт.

15

86564435

TYRE/TIRE

31 x 13.50 - 15

2шт.

16

87047834

WHEEL

15 x 10

2шт.

17

196033

VALVE STEM

Tubeless Tire

2шт.

18

86628557

WHEEL BOLT,Hex Csk, 9/16" - 18 x 1 1/8", HTS

12шт.

19

87298567

KIT

Wheel Bearing

2шт.

Contains Ref. 3 Thru 11

1шт.

Ship Direct Option

1шт.
