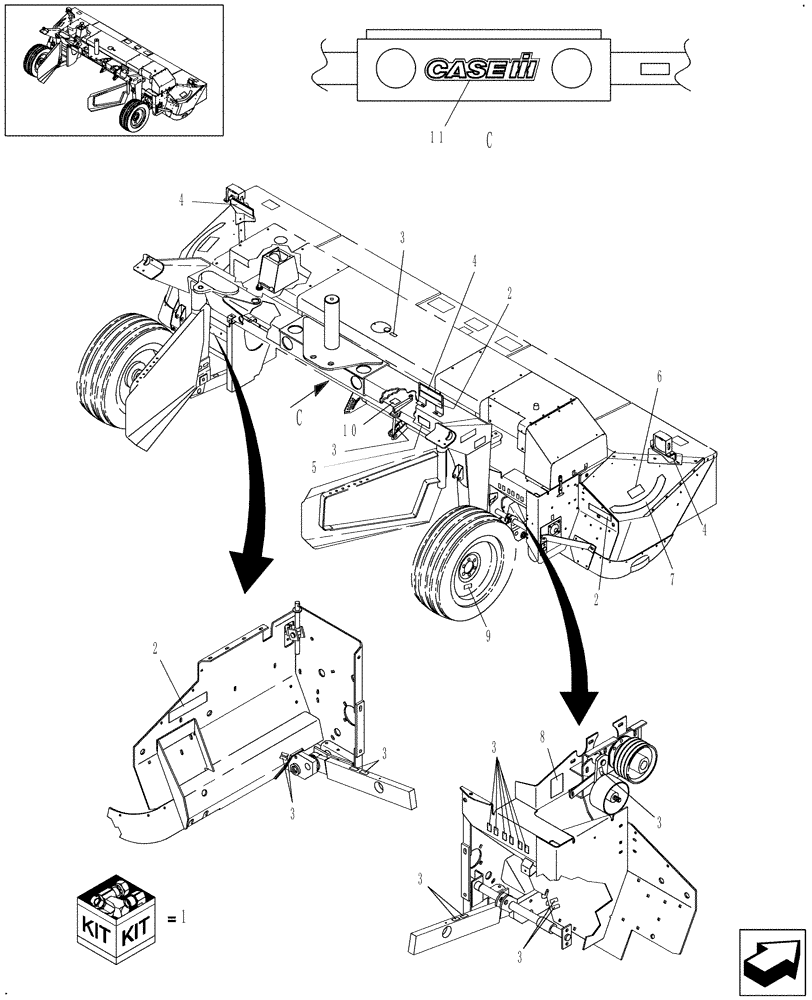

Запчасти Case IH DC162 (08.08) - DECALS, BASE REAR (08) - SHEET METAL

1

87632097

DECAL

Includes: Ref. 2 -11, (Also see figures 08.05 & 08.06) English

1шт.

2

86547783

REFLECTOR,Tape, Red Orange

Tape, Red/Orange Fluorescent

3шт.

3

165109

DECAL

Lube

11шт.

4

86547781

REFLECTOR,RED

Tape, Red, Retroreflective

3шт.

5

86624775

WARNING DECAL

Set Machine To Clear Obstructions, English

1шт.

5

86625172

WARNING DECAL

WARNING, Set Machine To Clear Obstructions, French

1шт.

5

86625173

WARNING DECAL

WARNING, Set Machine To Clear Obstructions, Spanish

1шт.

6

86628571

WARNING DECAL

Stand Clear, English

1шт.

6

86629518

WARNING DECAL

WARNING, Stand Clear, French

1шт.

6

86629519

WARNING DECAL

WARNING, Stand Clear, English

1шт.

7

80772110

WARNING DECAL

Knife Tip Path, English

1шт.

7

791403

WARNING DECAL

WARNING, Knife Tip Path, French

1шт.

7

86528619

WARNING DECAL

WARNING, Knife Tip Path, Spanish

1шт.

8

86599243

DECAL

Spring

1шт.

9

183155

DECAL

Torque, English

2шт.

9

602232

DECAL

Torque, French

2шт.

9

9804237

DECAL

Torque, Spanish

2шт.

10

195096

DECAL

Roll Pressure, English

1шт.

10

601613

DECAL

Roll Pressure, French

1шт.

10

86528618

DECAL

Roll Pressure, Spanish

1шт.

11

87622972

DECAL

CIH

1шт.
