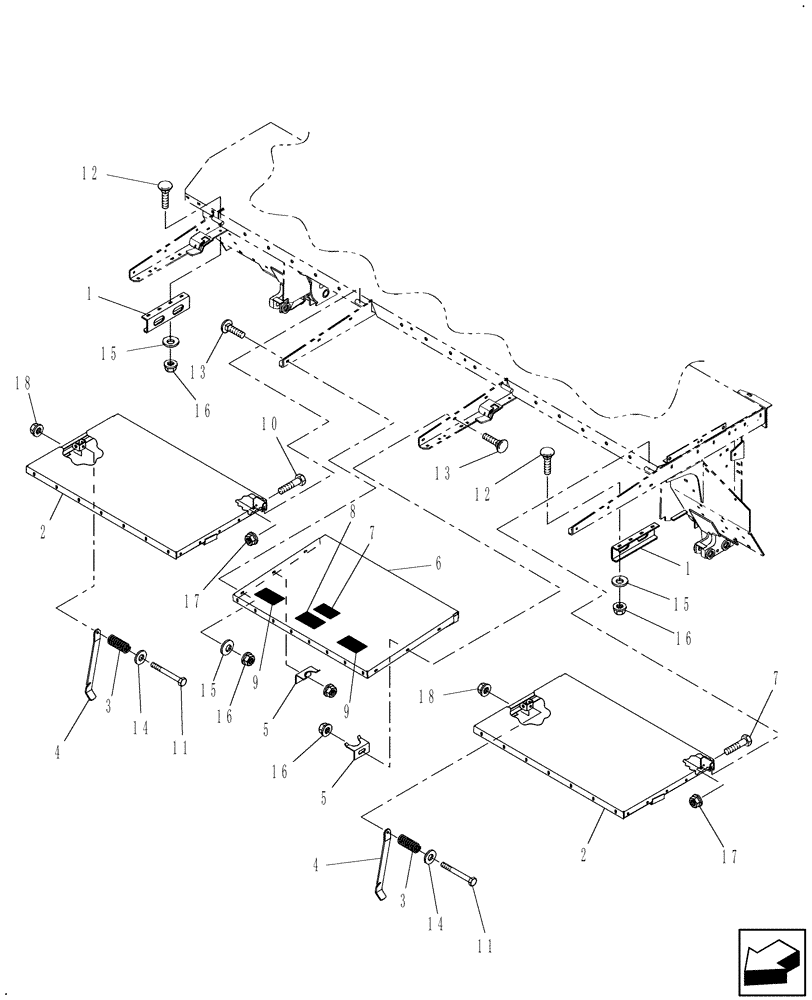

Запчасти Case IH DC162 (08.04) - SHIELDING, CENTER (08) - SHEET METAL

1

86567361

BRACKET

2шт.

2

86626543

HOOD

2шт.

3

86628837

SPRING,Compression, 23mm OD x 57.15mm L

2шт.

4

86526613

LATCH

2шт.

5

86582727

CLIP

2шт.

6

86626577

COVER

Includes decals

1шт.

7

86611825

WARNING DECAL

1шт.

8

86628571

WARNING DECAL

Stand Clear, English

1шт.

9

86629146

WARNING DECAL

Close Shield

2шт.

10

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

4шт.

11

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

2шт.

12

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

8шт.

13

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

6шт.

14

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

15

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12шт.

16

86521605

FLANGE NUT,5/16"-18, Cl 5

12шт.

17

9626558

FLANGE NUT,Flg, 1/4"-20

4шт.

18

86521609

FLANGE NUT,Flg, 3/8"-16

2шт.
