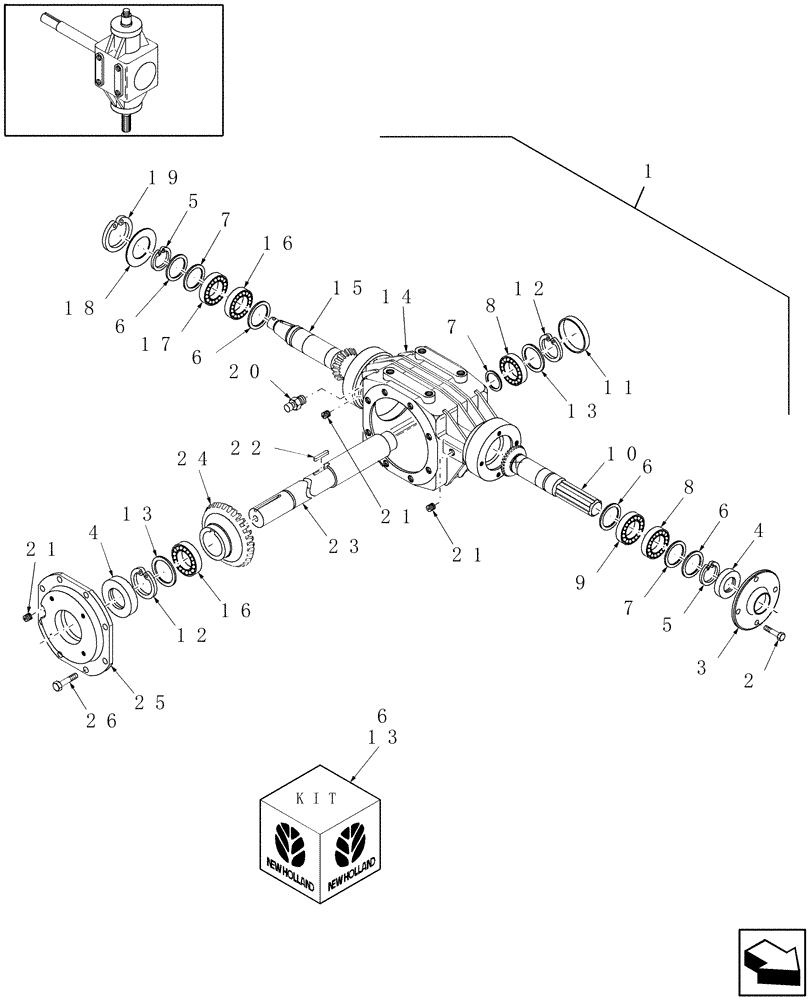

Запчасти Case IH DC162 (03.03) - GEARBOX COMPONENTS - BEVEL (03) - MAIN GEARBOX

1

86518543

GEARBOX

Bevel

1шт.

1

86518543R

REMAN-GEARBOX

Reman Gearbox

1шт.

1

86518543C

CORE-GEARBOX

Return Number

1шт.

2

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.

3

86539152

COVER

1шт.

4

86539153

SEAL,40mm ID x 80mm OD x 10mm Thk

2шт.

5

440442

SNAP RING,M40 x 2.5mm Thk, External

Ring, Snap, Ext, M40

2шт.

6

86539215

KIT

Shim

4шт.

7

86539145

SHIM

M2.500 Thk

3шт.

8

20915780

BALL BEARING,40mm ID x 80mm OD x 18mm W

2шт.

9

86511837

BALL BEARING

M40

1шт.

10

86539151

SHAFT

Pinion

1шт.

11

86539148

CAP

1шт.

12

80300633

SNAP RING,M80, Int

2шт.

13

86539214

SHIM

Shim

2шт.

14

86539146

HOUSING

1шт.

15

86539147

SHAFT

Pinion

1шт.

16

210053

TAPERED BEARING,40mm ID x 80mm OD x 18mm W

2шт.

17

210049

BALL BEARING,40mm ID x 90mm OD x 23mm W

1шт.

18

86539143

COVER

1шт.

19

86539144

SNAP RING

Int, M100

1шт.

20

86539157

BREATHER,3/8" Gas

1шт.

21

86557412

PLUG,3/8" - 19 NPT

3шт.

22

86539158

KEY

M8 x 12 x 30

1шт.

23

86539155

SHAFT

524mm Long

1шт.

24

86539154

BEVEL GEAR

1шт.

25

86539156

COVER

1шт.

26

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

8шт.
